Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
This sorting machine rubber roller has a Ø60 ±0.2 mm outer diameter, a 50 ±0.2 mm width and a metal core with a stepped internal interface. Its black rubber outer layer includes a central 60° circumferential groove with an R3 radius. Custom rubber compound, hardness and core geometry can be reviewed.
Product Overview

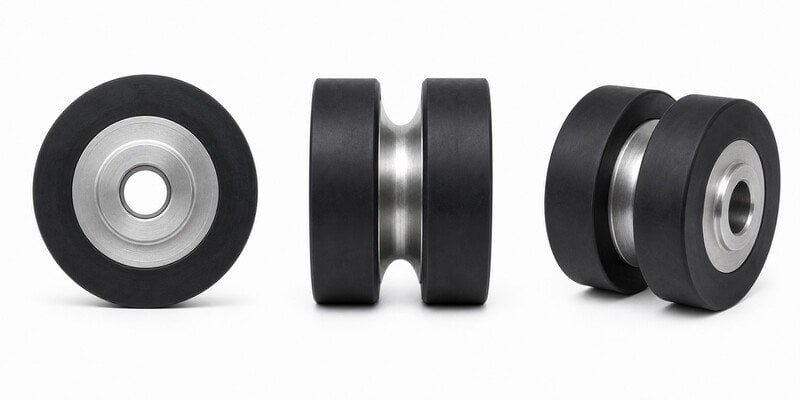

The sorting machine rubber roller is designed with a black rubber running surface and a machined metal core. The roller has a Ø60 ±0.2 mm outer diameter and a 50 ±0.2 mm overall width. A circumferential groove is formed around the center of the roller. The supplied drawing specifies a 60° groove angle and an R3 groove radius. The stepped internal structure includes Ø46 mm, Ø32 ±0.01 mm and Ø28 mm reference diameters. The Ø32 mm interface is shown with a geometric tolerance requirement of Ø0.05 relative to datum A. This roller can be evaluated for sorting machine assemblies where the profile, installation interface and dimensional tolerance must match the equipment design.
Key Features
- Specified outer diameter: Ø60 ±0.2 mm.
- Specified overall width: 50 ±0.2 mm.
- Black rubber outer layer with an internal metal core.
- Central circumferential groove with a 60° profile.
- Groove root radius: R3.
- Internal stepped interface includes Ø46 mm, Ø32 ±0.01 mm and Ø28 mm reference diameters.
- Geometric tolerance shown on the supplied drawing: Ø0.05 relative to datum A.
- Suitable for technical review as a custom sorting machine rubber roller.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Outer Diameter (OD) | Ø60 ±0.2 mm |
| Overall Width | 50 ±0.2 mm |
| Reference Diameter A | Ø46 mm |
| Stepped Interface Diameter | Ø32 ±0.01 mm |
| Internal Reference Diameter | Ø28 mm |
| Central Axial Reference Dimension | 28 ±0.1 mm |
| Groove Angle | 60° |
| Groove Root Radius | R3 |
| Edge Reference Dimension | 1 mm on each side |
| Surface Roughness Marking | Ra 3.2 |
| Geometric Tolerance Shown on Drawing | Ø0.05 relative to datum A |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Sorting Machine Rubber Roller with Grooved Metal Core |
| Material | Rubber outer layer with metal core |
| Hardness | Available upon request |
| Color | Black rubber with metallic core |
| Manufacturing Process | Available upon request |
| Application | Sorting machine roller assemblies |
| Customization | Dimensions, rubber compound, Shore A hardness, groove profile, metal core structure, internal interface, dimensional tolerance and packaging can be reviewed according to the equipment requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications

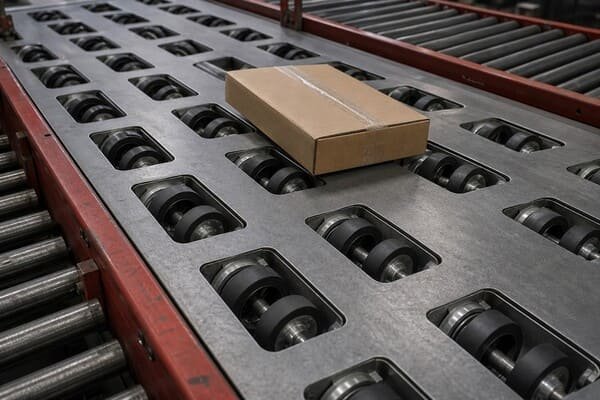

The sorting machine rubber roller is intended for roller assemblies in industrial sorting equipment. Its circumferential groove can engage with a matching machine component according to the equipment design. The rubber outer layer provides a contact surface, while the metal core supports the stepped internal mounting interface. Before ordering, buyers should confirm the installation position, mating shaft or bearing structure, operating speed, applied load, contact surface, duty cycle and environmental conditions. Exposure to dust, moisture, oil or other media should also be reviewed when selecting the rubber compound and Shore A hardness.
Customization Options
Custom sorting machine rubber rollers can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the outer diameter, width, groove angle, groove radius, metal core geometry, internal stepped interface, rubber compound, Shore A hardness, dimensional tolerance and packaging method. Material selection depends on the application conditions. For an accurate quotation, please provide the equipment type, installation method, operating speed, applied load, contact media, temperature range, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Groove profile and mating component dimensions
- Metal core and installation interface requirements
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Operating speed and applied load
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What are the dimensions of this sorting machine rubber roller?
The roller has a Ø60 ±0.2 mm outer diameter and a 50 ±0.2 mm overall width. The supplied drawing also specifies a stepped internal interface with Ø46 mm, Ø32 ±0.01 mm and Ø28 mm reference diameters.
What is the purpose of the circumferential groove?
The central groove is designed to match a corresponding machine component according to the sorting equipment structure. The supplied drawing specifies a 60° groove profile and an R3 root radius. Buyers should provide the mating component dimensions when requesting a replacement or custom roller.
Can the rubber material and hardness be customized?
The rubber compound and Shore A hardness can be reviewed according to the operating conditions. Important factors include load, speed, contact surface, temperature, media exposure and duty cycle. Material selection depends on the application conditions.
Can the metal core dimensions be customized?
Custom metal core geometry and internal interface dimensions can be evaluated according to your 2D drawing, 3D model or physical sample. Please provide the mating shaft or bearing structure, dimensional tolerance and installation method for technical review.
Are prototype samples available?
Sample availability depends on the required rubber compound, hardness, metal core structure, tooling status and quantity. Please send your technical drawing or physical sample for review. A prototype sample arrangement can be confirmed after the specification is checked.
How is the production lead time confirmed?
The lead time is confirmed after reviewing the drawing, rubber compound, metal core geometry, tooling status, order quantity and inspection requirements. Please provide your target delivery schedule and estimated annual volume when requesting a quotation.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your sorting machine rubber roller. Please include the groove profile, internal interface dimensions, rubber requirements, operating speed, applied load, working environment, required quantity and estimated annual demand.
