Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer

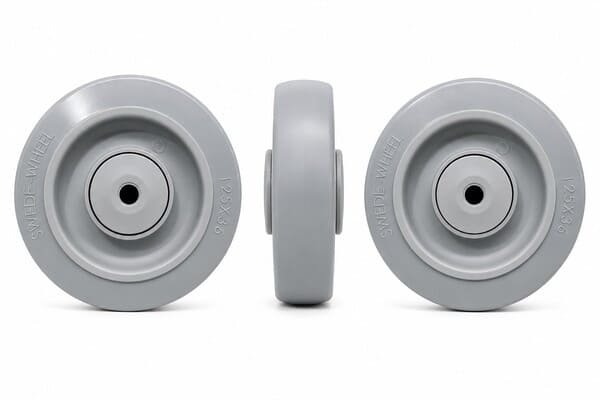

This 125 × 36 mm gray rubber wheel for material handling equipment has a molded center hub and an internal Ø32 mm reference dimension. The product reference is 125/36-89. Rubber compound, Shore A hardness, hub material, mounting interface and packaging can be reviewed according to your equipment requirements.
Product Overview
The 125 × 36 mm gray rubber wheel for material handling applications combines a gray rubber running surface with a molded internal hub structure. The specified outer diameter is 125 mm, and the wheel width is 36 mm. The product reference shown in the supplied image is 125/36-89. The sectional drawing provides an internal Ø32 mm reference dimension, an R5 radius and additional axial reference dimensions of 9 mm and 26 mm. These dimensions should be checked against the equipment shaft, bearing or mounting interface before ordering. The rubber tread provides a compliant contact surface for carts and mobile equipment. Material selection should be confirmed according to load, speed, floor condition and operating environment.
Key Features
- Specified wheel size: 125 mm outer diameter × 36 mm width.
- Product reference shown in the supplied image: 125/36-89.
- Gray rubber tread for material handling equipment applications.
- Molded center hub with an internal mounting structure.
- Internal hub reference diameter shown on the drawing: Ø32 mm.
- Drawing includes an R5 radius and axial reference dimensions of 9 mm and 26 mm.
- Suitable for carts, trolleys and mobile equipment assemblies.
- Rubber compound, Shore A hardness and hub material are available upon request.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Product Reference | 125/36-89 |
| Outer Diameter (OD) | 125 mm |
| Width | 36 mm |
| Internal Hub Reference Diameter | Ø32 mm |
| Reference Radius | R5 |
| Axial Reference Dimension A | 9 mm |
| Axial Reference Dimension B | 26 mm |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 125 × 36 mm Gray Rubber Wheel for Material Handling Equipment |
| Material | Rubber tread with molded center hub. Hub material is available upon request. |
| Hardness | Available upon request |
| Color | Gray |
| Manufacturing Process | Available upon request |
| Application | Material handling carts, trolleys and mobile equipment assemblies |
| Customization | Wheel dimensions, rubber compound, Shore A hardness, color, hub structure, internal interface dimensions, dimensional tolerance and packaging can be reviewed according to the application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications

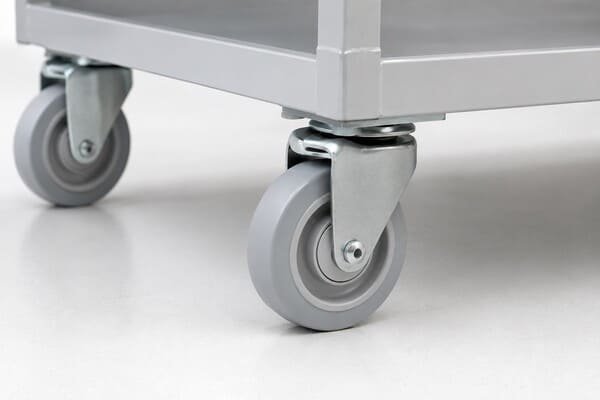

This 125 × 36 mm gray rubber wheel is intended for material handling carts, trolley assemblies and mobile equipment that require a compact rubber-tread wheel. The gray rubber surface provides a compliant running interface for movement across industrial or commercial floors. The molded hub supports the internal installation structure. Before selecting the wheel, buyers should confirm the load per wheel, floor type, equipment speed, turning frequency, duty cycle and shaft or bearing interface. Exposure to water, dust, oil, cleaning agents or other media should also be reviewed when confirming the rubber compound and Shore A hardness.
Customization Options
Custom gray rubber wheels for material handling equipment can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the outer diameter, width, rubber compound, Shore A hardness, tread color, hub material, internal hub geometry, bearing arrangement, dimensional tolerance and packaging method. Material selection depends on the application conditions. For an accurate quotation, please provide the equipment type, load per wheel, shaft or bearing dimensions, floor condition, operating speed, temperature range, contact media, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Hub, shaft or bearing interface dimensions
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Load per wheel
- Operating speed and duty cycle
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What are the dimensions of this gray rubber wheel for material handling equipment?
The specified wheel size is 125 × 36 mm. The outer diameter is 125 mm, and the wheel width is 36 mm. The supplied sectional drawing also shows an internal Ø32 mm reference dimension, an R5 radius and axial reference dimensions of 9 mm and 26 mm.
What material is used for the wheel hub?
The supplied image shows a molded center hub, but the exact hub material is not specified. Hub material is available upon request. Please provide your equipment drawing or physical sample so the mounting structure and material requirements can be reviewed accurately.
Can the internal hub dimensions be customized?
Custom hub geometry can be evaluated according to your 2D drawing, 3D model or physical sample. Please provide the shaft diameter, bearing arrangement, mounting interface and dimensional tolerances so the internal structure can be matched to your equipment assembly.
How should buyers select the rubber compound and hardness?
The rubber compound and Shore A hardness should be selected according to the load per wheel, operating speed, floor condition, temperature range, contact media and duty cycle. Material selection depends on the application conditions.
Are samples available for testing?
Sample availability depends on the required wheel dimensions, rubber compound, hardness, hub structure, tooling status and quantity. Please send your drawing, product photos or physical sample for technical review before confirming a prototype sample arrangement.
How is the lead time confirmed?
The lead time is confirmed after reviewing the wheel dimensions, hub interface, rubber requirements, tooling status, order quantity and inspection requirements. Please provide your target delivery schedule and estimated annual demand when requesting a quotation.
Request a Custom Quote
Send your 2D drawing, 3D model, product photos or physical sample for a technical review of your 125 × 36 mm gray rubber wheel. Please include the mounting interface, load per wheel, operating speed, floor condition, rubber requirements, order quantity and estimated annual demand.
