Quick Answer
This 5 inch PA6 industrial nylon swivel caster wheel is designed for nursery carts and related trolley assemblies. The supplied drawing specifies a 155 ±1.0 mm overall height, a 96 mm axle-centerline height and a Ø19.5–20.5 mm top mounting interface. Custom wheel dimensions and bracket structures can be reviewed.
Product Overview
The 5 inch PA6 industrial nylon swivel caster wheel is designed for nursery carts and related industrial trolley assemblies. The PA6 nylon wheel is installed in a metal swivel bracket with an upper rotating assembly and a top mounting interface. The supplied drawing specifies an overall caster height of 155 ±1.0 mm and a 96 mm reference height from the top plate to the wheel axle centerline. The horizontal caster offset is 40 mm with a tolerance of +0.5 / -1.0 mm. The top mounting interface diameter is Ø19.5–20.5 mm. Before ordering, buyers should confirm the exact wheel diameter, wheel width, mounting structure, load per caster and operating environment.
Key Features
- Nominal wheel size: 5 inch.
- PA6 nylon wheel for nursery cart and industrial trolley assemblies.
- Swivel caster bracket designed for directional rotation.
- Overall caster height: 155 ±1.0 mm.
- Reference height from top plate to wheel axle centerline: 96 mm.
- Caster offset: 40 mm with a tolerance of +0.5 / -1.0 mm.
- Top mounting interface diameter: Ø19.5–20.5 mm.
- Drawing-defined inspection requirements cover swivel smoothness, vertical movement and cover stability.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Nominal Wheel Size | 5 inch |
| Exact Outer Diameter (OD) | Available upon request |
| Wheel Width | Available upon request |
| Overall Caster Height | 155 ±1.0 mm |
| Top Plate to Wheel Axle Centerline Height | 96 mm |
| Caster Offset | 40 mm (+0.5 / -1.0 mm) |
| Top Mounting Interface Diameter | Ø19.5–20.5 mm |
| Reference Dimension Shown on Drawing | 7.3 mm |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 5 Inch PA6 Industrial Nylon Swivel Caster Wheel for Nursery Carts |
| Material | PA6 nylon wheel with metal swivel bracket assembly |
| Hardness | Not applicable to the PA6 nylon wheel |
| Color | Available upon request |
| Manufacturing Process | Available upon request |
| Application | Nursery carts and related industrial trolley assemblies |
| Customization | Wheel dimensions, PA6 material requirements, color, mounting interface, swivel bracket geometry, dimensional tolerance and packaging can be reviewed according to the application requirements. |
| Quality Inspection | Swivel rotation should be smooth, without dead spots or abnormal noise. The cover should remain secure without looseness. |
| Vertical Movement Test | The drawing requires vertical movement not to exceed 2 mm when measured at a point extending 20 cm outward from the center of the top cover. |
| Lubrication Requirement | No. 3 / No. 2 grease as specified in the supplied drawing |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications

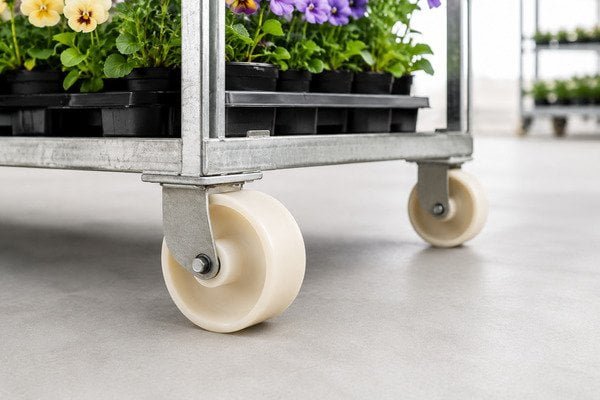

This 5 inch PA6 industrial nylon swivel caster wheel is intended for nursery carts and related trolley assemblies that require directional movement through a swivel bracket. The PA6 nylon wheel provides a rigid rolling surface, while the metal caster bracket supports the wheel axle and top mounting interface. Buyers should confirm the cart structure, exact wheel diameter, wheel width, load per caster, floor condition, turning frequency and daily operating cycle. The operating environment should also be reviewed when the cart is exposed to water, soil, dust, fertilizers, cleaning agents or outdoor conditions.
Customization Options
Custom industrial nylon wheels for nursery carts can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the wheel diameter, wheel width, PA6 material requirements, color, top mounting interface, caster offset, bracket structure, overall height, dimensional tolerance and packaging method. For an accurate quotation, please provide the nursery cart model, load per caster, floor or ground condition, indoor or outdoor use, turning frequency, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Nominal wheel size and exact dimensions
- Wheel width and dimensional tolerances
- Top mounting interface dimensions
- Caster offset and overall height
- PA6 material requirements
- Load per caster
- Floor or ground condition
- Operating environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is the size of this industrial nylon wheel for nursery carts?
This is a nominal 5 inch swivel caster wheel. The supplied drawing specifies an overall caster height of 155 ±1.0 mm and a 96 mm height from the top plate to the wheel axle centerline. The exact wheel diameter and wheel width are available upon request.

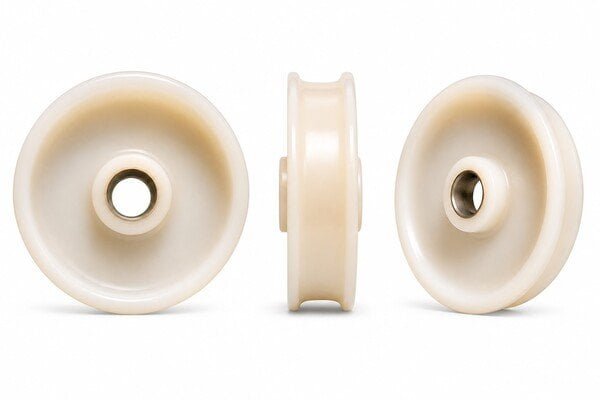

What material is used for the wheel?
The wheel material is PA6 nylon. The wheel is assembled with a metal swivel bracket and top mounting structure. Buyers should confirm whether PA6 is suitable for the required load, floor condition and operating environment before placing an order.
What are the top mounting dimensions?
The supplied drawing specifies a Ø19.5–20.5 mm top mounting interface. It also shows a 40 mm caster offset with a tolerance of +0.5 / -1.0 mm. Buyers should provide the mating cart structure dimensions for installation review.
What inspection requirements are specified for the swivel caster?
The drawing requires smooth rotation without dead spots or abnormal noise. The cover should not loosen. When vertical movement is measured at a point extending 20 cm outward from the center of the top cover, the movement should not exceed 2 mm.
Can the wheel dimensions and mounting structure be customized?
Custom dimensions and mounting structures can be reviewed according to your 2D drawing, 3D model or physical sample. Please provide the wheel diameter, width, bracket structure, top mounting interface, overall height and dimensional tolerances for technical evaluation.
Are samples available for testing?
Sample availability depends on the required wheel dimensions, PA6 material requirements, bracket structure, tooling status and quantity. Please send your technical drawing or physical sample for review. A sample arrangement can be confirmed after the specification is checked.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your industrial nylon wheel for nursery carts. Please include the mounting dimensions, load per caster, floor condition, operating environment, required quantity and estimated annual demand so we can prepare a practical quotation.
