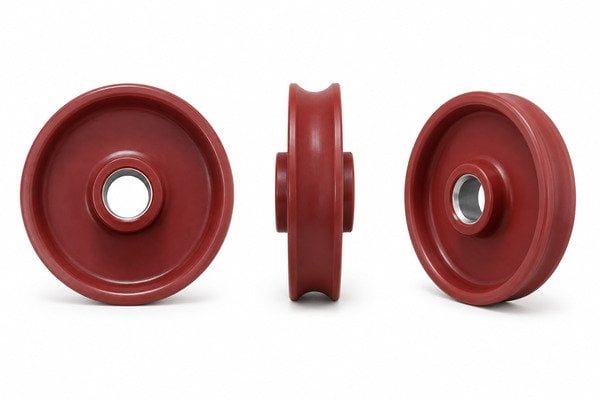

This 125 mm red industrial nylon wheel is a 5 inch PA6 swivel caster for industrial carts and trolley assemblies. The drawing specifies a 155 ±1.0 mm overall height, a 96 mm axle-centerline height and a Ø19.5–20.5 mm top mounting interface. Custom mounting structures and packaging options can be reviewed.
Product Overview
The 125 mm red industrial nylon wheel is a 5 inch swivel caster with a PA6 nylon wheel and a metal bracket assembly. The PA6 wheel provides a rigid rolling surface for industrial carts and trolley equipment. The supplied drawing specifies an overall caster height of 155 ±1.0 mm and a 96 mm distance from the upper mounting surface to the wheel axle centerline. The caster offset is 40 mm with a tolerance of +0.5 / -1.0 mm. The top mounting interface diameter is Ø19.5–20.5 mm. The assembly also includes cold-rolled steel covers, a cold-rolled steel bracket, steel balls, a PE ball retainer and PP cover plates.
Key Features
- Nominal wheel diameter: 125 mm / 5 inch.
- Red PA6 nylon wheel for industrial cart and trolley applications.
- Swivel caster structure for directional movement.
- Overall caster height: 155 ±1.0 mm.
- Axle-centerline height: 96 mm.
- Top mounting interface diameter: Ø19.5–20.5 mm.
- Cold-rolled steel swivel bracket and cover structure.
- Drawing-defined inspection requirements for smooth rotation, vertical play and cover stability.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Nominal Wheel Diameter | 125 mm / 5 inch |
| Wheel Width | Available upon request |
| Overall Caster Height | 155 ±1.0 mm |
| Upper Mounting Surface to Wheel Axle Centerline | 96 mm |
| Caster Offset | 40 mm (+0.5 / -1.0 mm) |
| Top Mounting Interface Diameter | Ø19.5–20.5 mm |
| Top Mounting Reference Dimension | 7.3 mm |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 125 mm Red Industrial Nylon Swivel Caster Wheel |
| Wheel Material | PA6 nylon |
| Hardness | Not applicable to the PA6 nylon wheel |
| Color | Red |
| Wheel Size | 5 inch / 125 mm |
| Caster Type | Swivel caster |
| Swivel Bracket | 2.5 mm cold-rolled steel sheet |
| Upper Cover | 4 mm cold-rolled steel sheet |
| Lower Cover | 4 mm cold-rolled steel sheet |
| Plastic Cover Plates | PP, 2 pieces |
| Steel Ball Retainer | PE |
| Steel Balls | Ø4.5 mm and Ø8 mm |
| Locknut | M8 |
| Lubrication Requirement | No. 3 / No. 2 grease as specified in the drawing |
| Manufacturing Process | Available upon request |
| Application | Industrial carts and trolley assemblies |
| Customization | Wheel dimensions, color, PA6 material requirements, mounting interface, swivel bracket structure, dimensional tolerance and packaging can be reviewed according to the application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Drawing-Based Quality Requirements
- Swivel rotation should be smooth, without dead spots or abnormal noise.
- The upper cover should remain secure without looseness.
- For the single-caster vertical-play test, measure at a point extending 200 mm outward from the center of the upper cover.
- Vertical movement during the specified test should not exceed 2 mm.
- Lubrication points should use No. 3 / No. 2 grease as specified in the drawing.
Applications

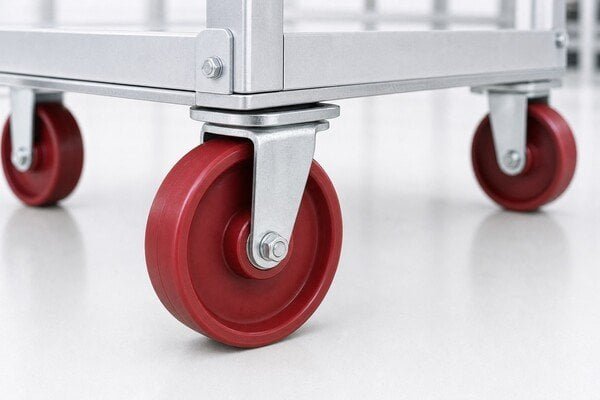

The 125 mm red industrial nylon wheel is intended for industrial carts, trolley assemblies and mobile equipment that require a compact swivel caster. The PA6 nylon wheel provides a rigid running surface, while the metal swivel bracket supports directional rotation. Buyers should confirm the load per caster, floor type, turning frequency, daily operating cycle and mounting structure before ordering. The working environment should also be reviewed when the caster is exposed to water, dust, cleaning agents or outdoor conditions. The Ø19.5–20.5 mm top mounting interface must match the equipment assembly.
Customization Options
Custom 125 mm industrial nylon wheels can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the PA6 wheel diameter, wheel width, color, top mounting interface, caster offset, overall height, swivel bracket geometry, dimensional tolerance and packaging method. For an accurate quotation, please provide the cart type, load per caster, floor condition, indoor or outdoor use, turning frequency, required quantity and estimated annual volume. Material selection and tooling requirements depend on the product structure and application conditions.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Wheel diameter and width
- Dimensions and tolerances
- Top mounting interface dimensions
- Caster offset and overall height
- Required wheel color
- PA6 material requirements
- Load per caster
- Floor condition
- Operating environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is the diameter of this red industrial nylon wheel?
The nominal wheel diameter is 125 mm, which is approximately 5 inches. The complete swivel caster has an overall height of 155 ±1.0 mm. Wheel width is available upon request and should be confirmed according to the required cart or trolley assembly.
What material is used for the wheel?
The wheel is made of PA6 nylon. The supplied drawing also specifies a cold-rolled steel swivel bracket, cold-rolled steel upper and lower covers, PP cover plates and a PE steel-ball retainer. The required color for this product is red.
What are the mounting dimensions?
The drawing specifies a Ø19.5–20.5 mm top mounting interface, a 40 mm caster offset with a tolerance of +0.5 / -1.0 mm and a 96 mm height from the upper mounting surface to the wheel axle centerline.
What quality checks are specified for the swivel caster?
The caster should rotate smoothly without dead spots or abnormal noise. The cover should remain secure. During the specified vertical-play test, movement should not exceed 2 mm when measured at a point extending 200 mm outward from the center of the upper cover.
Can the color and mounting structure be customized?
Yes. Custom wheel colors, mounting interfaces, caster offsets, bracket structures and dimensional tolerances can be reviewed according to your 2D drawing, 3D model or physical sample. Tooling cost depends on the drawing and product structure.
Are samples available for testing?
Sample availability depends on the required wheel dimensions, PA6 material requirements, mounting interface, bracket structure, tooling status and quantity. Please provide your technical drawing or physical sample so that the specification can be reviewed before sample preparation.
