Quick Answer

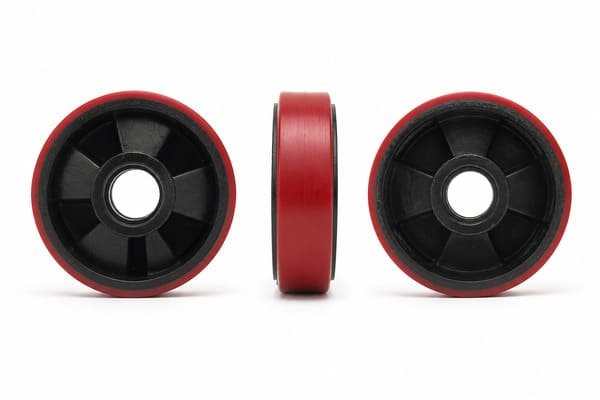

This 180 × 50 mm polyurethane steering wheel is designed for pallet trucks and warehouse equipment. It combines a red PU tread with a reinforced black nylon core, a 20 mm center bore and an installed 6204 bearing. Custom hardness, core geometry and packaging can be reviewed according to your requirements.
Product Overview
The 180 × 50 mm polyurethane steering wheel is a bearing-mounted wheel for pallet trucks and warehouse equipment. The red PU tread forms the running surface, while the reinforced black nylon core supports the wheel structure. The supplied product image specifies a 180 mm outer diameter, a 50 mm wheel width and a 20 mm center bore. A 6204 bearing is installed in the central hub. This steering wheel can be evaluated for pallet truck replacement, warehouse trolley assemblies and related material-handling equipment. Buyers should confirm the shaft dimensions, load per wheel, floor condition, operating speed and installation position before ordering.
Key Features
- Specified wheel size: 180 mm outer diameter × 50 mm width.
- Center bore diameter: 20 mm.
- Installed bearing model: 6204.
- Red polyurethane tread for warehouse and material-handling applications.
- Reinforced black nylon core provides structural support.
- Bearing-mounted hub for installation in pallet truck wheel assemblies.
- Suitable for replacement and custom equipment wheel requirements.
- Custom hardness, dimensions and packaging can be reviewed according to buyer requirements.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Outer Diameter (OD) | 180 mm |
| Width | 50 mm |
| Center Bore Diameter | 20 mm |
| Bearing Model | 6204 |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 180 × 50 mm Polyurethane Steering Wheel for Pallet Trucks |
| Material | Polyurethane tread with reinforced nylon core |
| Hardness | Available upon request |
| Color | Red PU tread with black nylon core |
| Manufacturing Process | Available upon request |
| Application | Pallet trucks and warehouse material-handling equipment |
| Customization | Wheel dimensions, PU hardness, tread color, nylon core structure, center bore, bearing model, dimensional tolerance and packaging can be reviewed according to the application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications

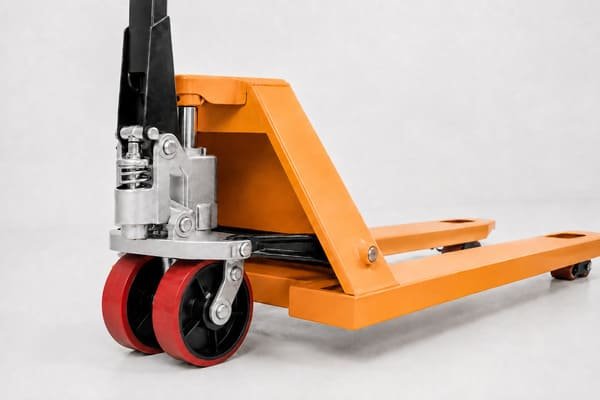

This polyurethane steering wheel is designed for pallet trucks and related warehouse equipment that require a bearing-mounted wheel with a rigid nylon core. It can be evaluated for steering wheel positions in manual or powered material-handling equipment. The red PU tread forms the contact surface for repeated movement across warehouse floors, while the reinforced nylon core supports the bearing installation area. Buyers should confirm the pallet truck model, shaft diameter, installation position, load per wheel, turning frequency, floor type and daily operating cycle before selecting the wheel.
Customization Options
Custom polyurethane steering wheels can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the outer diameter, wheel width, center bore, bearing model, PU hardness, tread color, nylon core geometry, dimensional tolerance and packaging method. Material selection depends on the application conditions. For an accurate quotation, please provide the pallet truck model, wheel position, shaft dimensions, load per wheel, operating speed, floor condition, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Pallet truck model and wheel position
- Center bore and shaft dimensions
- Bearing model
- Polyurethane hardness
- Load per wheel
- Operating temperature
- Contact media
- Floor condition
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What are the dimensions of this polyurethane steering wheel?
The wheel has a 180 mm outer diameter and a 50 mm width. The central bore diameter is 20 mm. These dimensions should be checked against the pallet truck wheel assembly and shaft interface before ordering.
Which bearing is installed in this pallet truck wheel?
The supplied product image specifies a 6204 bearing. The center bore diameter is 20 mm. Buyers should confirm that the bearing model and shaft dimensions match the equipment installation requirements.
What materials are used for the wheel?
The wheel combines a red polyurethane tread with a reinforced black nylon core. The PU tread forms the running surface, while the nylon core supports the central hub and bearing installation area.
Is this wheel suitable for pallet truck steering positions?
This wheel is designed for pallet trucks and warehouse equipment and can be evaluated for steering wheel positions. Buyers should confirm the pallet truck model, wheel position, shaft size, load per wheel and floor condition before ordering.
Can the PU hardness and nylon core structure be customized?
Custom PU hardness, tread color, nylon core geometry, center bore and bearing model can be reviewed according to your 2D drawing, 3D model or physical sample. Material selection depends on the application conditions.
Are samples available for testing?
Sample availability depends on the required dimensions, PU hardness, nylon core structure, bearing model, tooling status and order quantity. Please send your drawing, product photos or physical sample for technical review.
Request a Custom Quote
Send your 2D drawing, 3D model, product photos or physical sample for a technical review of your polyurethane steering wheel. Please include the pallet truck model, shaft dimensions, bearing requirements, PU hardness, load per wheel, operating conditions, required quantity and estimated annual demand.
