Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
This large machinery rubber drive wheel has a Ø300 mm outer diameter, 80 mm width and Ø60 mm center bore. It features a black rubber tread and an internal iron-core structure. Custom rubber compounds, hardness levels, mounting geometry and dimensional requirements can be reviewed according to your machinery drawing and operating conditions.
Product Overview
The 300mm × 80mm large mechanical drive rubber wheel is a heavy-duty, vulcanization-bonded rubber-on-steel drive wheel engineered for high-torque industrial machinery, conveyor systems, and motorized equipment. With an outer diameter of φ300mm, a tread width of 80mm, and a precision-formed steel hub, this wheel delivers reliable traction, vibration damping, and long service life under continuous mechanical drive loads.
Size Reference
| Dimension Item | Reference Value |
|---|---|
| Outer diameter | 300 mm |
| Wheel width | 80 mm |
| Bore diameter | 60 mm |
| Stepped diameter A | 221 mm |
| Stepped diameter B | 214 mm |
| Stepped diameter C | 187.7 mm |
| Stepped diameter D | 176.7 mm |
| Radius | R25 / R3 |
| Web reference | 3 mm |
| Structural angle | 97°15′ |
If you need changes to bore size, tread width, outer diameter, hub structure, or tread profile, the drawing should be reviewed before quotation and production.
Key Features
- Nominal wheel size: Ø300 mm outer diameter × 80 mm width.
- Center bore diameter: Ø60 mm.
- Black rubber tread with an internal iron-core structure.

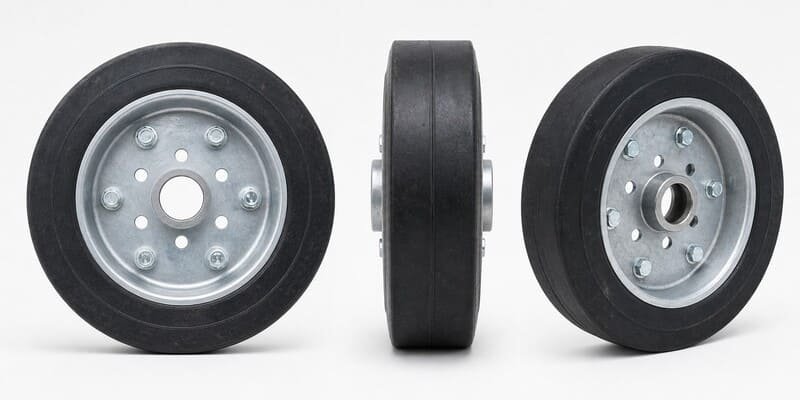

- Metal mounting section with multiple fastening positions visible in the supplied product image.
- Detailed formed-core geometry shown in the supplied dimensional drawing.
- Suitable for review as a drive wheel for large industrial machinery.
- Rubber compound, Shore A hardness and dimensional tolerance should be confirmed according to the actual operating conditions.
- Custom geometry can be evaluated against a 2D drawing, 3D model or physical sample.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Large Machinery Rubber Drive Wheel with Iron Core |
| Material | Rubber tread with iron core. Rubber compound is available upon request. |
| Hardness | Available upon request |
| Color | Black rubber tread with metallic core |
| Manufacturing Process | Available upon request |
| Application | Drive wheel for large industrial machinery |
| Customization | Dimensions, rubber compound, hardness, center bore, core geometry, mounting structure, dimensional tolerance and packaging can be reviewed according to the drawing and application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications for the Large Machinery Rubber Drive Wheel

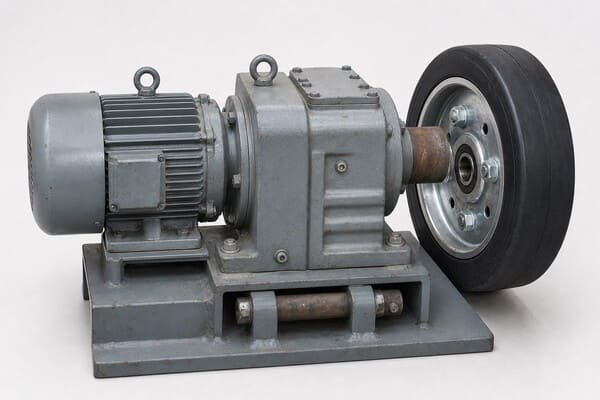

This large machinery rubber drive wheel is intended for industrial equipment that requires a rubber-tread wheel with a metal mounting core. It can be evaluated for drive positions where the wheel transfers rotational movement through contact with a running surface or equipment interface. The Ø300 mm outer diameter, 80 mm width and Ø60 mm center bore must be checked against the installation space and shaft design. Buyers should also confirm the load, running speed, continuous or intermittent duty cycle, surface condition, vibration requirements and exposure to oil, water, dust or chemicals.
Customization Options
Custom versions can be reviewed based on a 2D drawing, 3D model or physical sample. Buyers can specify the required wheel diameter, tread width, center bore, mounting-hole pattern, core geometry, dimensional tolerance, rubber compound, Shore A hardness, color and packaging method. Material selection depends on the application conditions. For an accurate technical review, provide the operating temperature, contact media, load per wheel, rotational speed, installation method, running surface, duty cycle and estimated annual demand. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
Can the dimensions of the large machinery rubber drive wheel be customized?
Custom dimensions can be reviewed according to your equipment drawing or physical sample. Please specify the outer diameter, tread width, center bore, core profile, mounting-hole positions and dimensional tolerance. The feasibility of a new size depends on the wheel structure, operating load and tooling requirements.
How should buyers select the rubber compound for this drive wheel?
The rubber compound should be selected according to the actual operating conditions. Important factors include load, rotational speed, running surface, temperature, oil exposure, water exposure, chemicals, outdoor conditions and duty cycle. Material selection depends on the application conditions.
Is the 300 × 80 mm drive wheel available as a standard product?
The supplied product image and drawing show a nominal Ø300 mm outer diameter and 80 mm width. Please contact us to confirm availability, order quantity and production requirements. Alternative dimensions can be evaluated according to your machinery design.
Are prototype samples available?
Sample availability depends on the required wheel structure, rubber compound, existing tooling and quantity. Please send your 2D drawing, 3D model or physical sample for review. A prototype sample plan can be confirmed after the technical details are checked.
Is tooling required for a custom rubber drive wheel?
Tooling requirements depend on the tread profile, iron-core structure, center bore, mounting interface and required dimensions. Existing tooling may be reviewed first. For a new wheel design, tooling cost depends on the drawing and product structure.
How is the production lead time confirmed?
The lead time is confirmed after reviewing the drawing, rubber compound, tooling status, sample requirements, order quantity and inspection requirements. Please provide your estimated annual volume and target delivery schedule when requesting a quotation.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your large machinery rubber drive wheel. Please include the required dimensions, rubber compound, Shore A hardness, load, running speed, installation method, operating environment and estimated annual quantity. We will evaluate the structure, tooling requirements and quotation details.
