Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
These heavy duty industrial rubber wheels combine an NR natural rubber tread with a spoke-style aluminum core. Available diameters range from 100 mm to 300 mm, with specified wheel widths, core widths, hole diameters, bearing models and listed loads. Custom wheel requirements can be reviewed according to your equipment design.
Product Overview

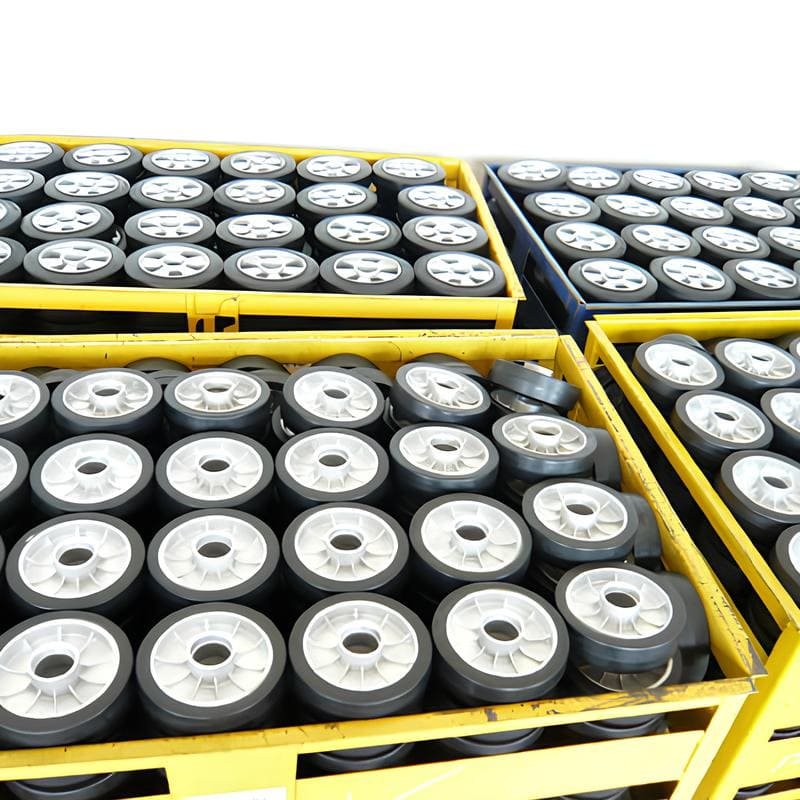

The heavy duty industrial rubber wheel is designed with an NR natural rubber tread and a spoke-style aluminum core. The available product range includes wheel diameters from 100 mm to 300 mm. Wheel widths are 50 mm or 60 mm, depending on the model. Each size has a specified core width, wheel hole diameter, bearing model and listed load. The 300 × 60 mm version uses a 60 mm aluminum core width, a 52 mm wheel hole and a 6205 bearing. The NR rubber tread provides a compliant contact surface, while the aluminum core supports the installation interface. Buyers should confirm the load, floor condition, operating speed and mounting requirements before ordering.
Key Features
- NR natural rubber tread with a rigid aluminum core.
- Available wheel diameters: 100 mm, 125 mm, 150 mm, 160 mm, 180 mm, 200 mm, 250 mm and 300 mm.
- Wheel widths: 50 mm or 60 mm, depending on the selected model.
- Spoke-style aluminum hub structure for industrial wheel applications.
- Specified wheel hole diameters: 40 mm, 47 mm or 52 mm.
- Bearing models include 6203, 6204 and 6205.
- Listed load values range from 200 kg to 600 kg, depending on the wheel size.
- Suitable for technical review as an industrial equipment wheel or material-handling wheel.
Size / Dimensions
| Size | Wheel Diameter | Wheel Width | Wheel Core Width | Wheel Hole Diameter | Bearing Model | Load |
|---|---|---|---|---|---|---|
| 4 Inch | 100 mm | 50 mm | 50 mm | 40 mm | 6203 | 200 kg |
| 5 Inch | 125 mm | 50 mm | 60 mm | 47 mm | 6204 | 250 kg |
| 6 Inch | 150 mm | 50 mm | 60 mm | 47 mm | 6204 | 280 kg |
| 6.5 Inch | 160 mm | 50 mm | 50 mm | 47 mm | 6204 | 280 kg |
| 7 Inch | 180 mm | 50 mm | 50 mm | 47 mm | 6204 | 320 kg |
| 8 Inch | 200 mm | 50 mm | 50 mm | 47 mm | 6204 | 350 kg |
| 10 Inch | 250 mm | 50 mm | 60 mm | 47 mm | 6204 | 390 kg |
| 12 Inch | 300 mm | 60 mm | 60 mm | 52 mm | 6205 | 600 kg |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Heavy Duty Industrial Rubber Wheel with Aluminum Core |
| Material | NR natural rubber tread with aluminum core |
| Hardness | Available upon request |
| Color | Black rubber tread with metallic aluminum core |
| Manufacturing Process | Available upon request |
| Application | Industrial equipment and material-handling wheel applications |
| Customization | Wheel diameter, width, core width, wheel hole diameter, bearing model, rubber compound, Shore A hardness, dimensional tolerance and packaging can be reviewed according to the equipment requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications
The heavy duty industrial rubber wheel can be evaluated for material-handling equipment, industrial carts, machinery assemblies and other equipment that requires a rubber-tread wheel with a rigid aluminum hub. The NR rubber tread provides a compliant running surface for contact with industrial floors. The aluminum core supports the bearing and wheel-hole installation area. Different sizes can be selected according to the equipment structure and listed load requirements. Buyers should confirm the actual load per wheel, operating speed, floor surface, turning frequency, duty cycle and exposure to water, oil, dust or chemicals before selecting a model.
Customization Options
Custom industrial rubber wheel requirements can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the wheel diameter, wheel width, core width, wheel hole diameter, bearing model, aluminum core geometry, rubber compound, Shore A hardness, dimensional tolerance and packaging method. Material selection depends on the application conditions. For an accurate quotation, please provide the equipment type, load per wheel, operating speed, floor condition, temperature range, contact media, installation method, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Wheel diameter, width and tolerances
- Wheel core width
- Wheel hole diameter
- Bearing model
- Rubber material
- Shore A hardness
- Load per wheel
- Operating speed and duty cycle
- Operating temperature
- Contact media
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What sizes are available for this heavy duty industrial rubber wheel?
The available wheel diameters are 100 mm, 125 mm, 150 mm, 160 mm, 180 mm, 200 mm, 250 mm and 300 mm. Wheel widths are 50 mm or 60 mm, depending on the selected model. Each size has a specified wheel hole diameter, bearing model and listed load.
What is the largest available model?
The largest listed model has a 300 mm wheel diameter and a 60 mm wheel width. It also has a 60 mm core width, a 52 mm wheel hole, a 6205 bearing and a listed load of 600 kg.
What rubber material is used for the tread?
The specified tread material is NR natural rubber. The wheel core is made of aluminum. The final material requirements should be reviewed according to the load, operating speed, floor condition, temperature range and contact media.
How should buyers select the correct wheel size?
The correct wheel size depends on the equipment structure, available installation space, wheel hole diameter, bearing model and required load. Buyers should also consider floor conditions, operating speed, turning frequency and duty cycle before selecting a model.
Can the aluminum core and wheel hole dimensions be customized?
Custom aluminum core geometry and wheel hole dimensions can be evaluated based on your 2D drawing, 3D model or physical sample. Please provide the bearing requirements, installation interface and dimensional tolerances. Tooling requirements depend on the product structure.
Are samples available for testing?
Sample availability depends on the selected wheel size, rubber compound, Shore A hardness, aluminum core structure, bearing model, tooling status and required quantity. Please send your specification or sample for technical review.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your heavy duty industrial rubber wheel. Please include the required size, bearing model, wheel hole diameter, rubber hardness, load per wheel, operating conditions, order quantity and estimated annual demand.
