Quick Answer

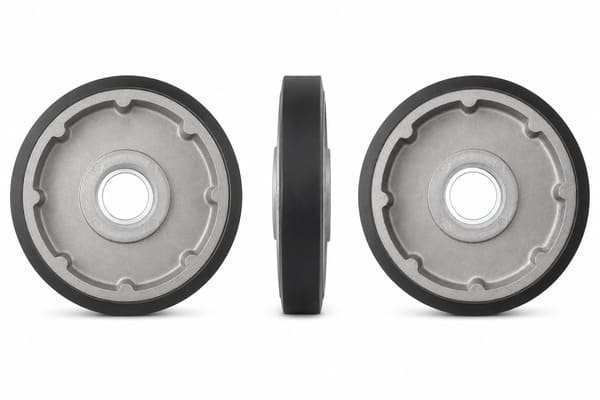

This 160 mm elevator guide shoe rubber wheel combines a black rubber tread with an internal metal core. The supplied drawing includes detailed machined hub dimensions for installation review. Wheel width, rubber compound, Shore A hardness and packaging can be confirmed according to your elevator guide shoe assembly requirements.
Product Overview
The 160 mm elevator guide shoe rubber wheel is designed with a black rubber tread and an internal metal hub. The specified outer diameter is Ø160 mm. The supplied sectional drawing shows a Ø60 mm hub reference diameter, a Ø34 mm internal reference diameter and additional machined interface dimensions. These dimensions should be checked against the elevator guide shoe assembly before ordering. The wheel is intended to operate as a guide shoe roller where it maintains rolling contact during elevator movement. The required wheel width, rubber compound, Shore A hardness and dimensional tolerance for the complete wheel should be confirmed according to the installation method, operating speed, load and guide rail conditions.
Key Features
- Specified wheel outer diameter: Ø160 mm.
- Designed for elevator guide shoe assemblies.
- Black rubber tread with an internal metal core.
- Sectional drawing includes detailed machined hub interface dimensions.
- Hub reference diameters include Ø60 mm, Ø34 mm, Ø42 mm and Ø44.5 mm.
- Internal axial reference dimension: 24.1 mm with specified tolerance.
- Suitable for evaluation as an elevator guide shoe roller wheel.
- Rubber compound, Shore A hardness and complete wheel width are available upon request.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Outer Diameter (OD) | Ø160 mm |
| Wheel Width | Available upon request |
| Hub Reference Diameter A | Ø60 mm |
| Hub Reference Diameter B | Ø34 mm |
| Hub Reference Diameter C | Ø42 mm (0 / -0.025 mm) |
| Hub Reference Diameter D | Ø44.5 mm (+0.25 / 0 mm) |
| Internal Axial Reference Dimension | 24.1 mm (+0.1 / 0 mm) |
| Groove Width Reference | 1.9 mm (+0.14 / 0 mm) |
| Reference Wall Thickness | 2 mm |
| Reference Dimension Shown in Parentheses | (3) mm |
| Chamfer | C1 |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 160 mm Elevator Guide Shoe Rubber Wheel with Metal Core |
| Material | Rubber tread with metal core |
| Hardness | Available upon request |
| Color | Black rubber tread with metallic core |
| Manufacturing Process | Available upon request |
| Application | Elevator guide shoe assemblies |
| Customization | Wheel width, rubber compound, Shore A hardness, metal core geometry, internal hub dimensions, dimensional tolerance and packaging can be reviewed according to the elevator assembly requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications

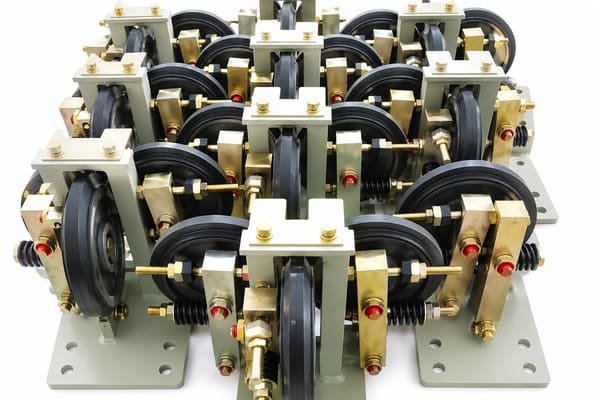

The 160 mm elevator guide shoe rubber wheel is intended for installation in elevator guide shoe assemblies. In this position, the wheel operates as a guide shoe roller and maintains rolling contact during elevator movement. The rubber tread provides a compliant contact surface, while the metal core supports the internal installation interface. Before confirming the specification, buyers should check the elevator model, guide shoe structure, mating shaft dimensions, guide rail conditions, load, running speed and operating cycle. The complete wheel width and rubber compound should also be confirmed against the actual equipment requirements.
Customization Options
Custom elevator guide shoe wheels can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify the wheel diameter, width, tread profile, rubber compound, Shore A hardness, metal core structure, internal interface dimensions, dimensional tolerance and packaging method. Material selection depends on the application conditions. For an accurate quotation, please provide the elevator model, guide shoe drawing, mating shaft dimensions, operating speed, load, guide rail conditions, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Elevator model and guide shoe structure
- Wheel dimensions and tolerances
- Mating shaft and internal hub dimensions
- Rubber material
- Shore A hardness
- Operating load
- Elevator running speed
- Operating temperature
- Guide rail conditions
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is the outer diameter of this elevator guide shoe wheel?
The specified outer diameter is Ø160 mm. The supplied drawing also includes detailed internal hub interface dimensions. The complete wheel width is available upon request and should be confirmed against the elevator guide shoe assembly.
What material is used for the wheel?
The wheel combines a rubber tread with an internal metal core. The exact rubber compound and Shore A hardness are available upon request. Material selection should be based on the operating load, elevator speed, guide rail conditions and required rolling performance.
Can the internal hub dimensions be customized?
Custom internal hub dimensions can be evaluated based on your 2D drawing, 3D model or physical sample. Please provide the mating shaft dimensions, installation interface and dimensional tolerances so that the metal core structure can be reviewed.
What dimensions are shown in the supplied sectional drawing?
The drawing includes hub reference diameters of Ø60 mm, Ø34 mm, Ø42 mm and Ø44.5 mm. It also specifies a 24.1 mm axial reference dimension, a 1.9 mm groove width reference, a 2 mm wall thickness reference and a C1 chamfer.
How should buyers confirm whether this guide shoe wheel is suitable?
Buyers should confirm the elevator model, guide shoe assembly drawing, wheel diameter, complete wheel width, internal hub dimensions, mating shaft size, operating load, elevator speed and guide rail conditions. A physical sample is recommended when the original specification is incomplete.
Are prototype samples available?
Sample availability depends on the required wheel dimensions, rubber compound, Shore A hardness, metal core structure, tooling status and quantity. Please send your technical drawing or physical sample for review. A sample arrangement can be confirmed after the specification is checked.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your 160 mm elevator guide shoe wheel. Please include the guide shoe structure, internal hub dimensions, mating shaft size, rubber requirements, operating load, elevator speed, order quantity and estimated annual demand.
