Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
A custom composite diaphragm combines a flexible working membrane with application-specific reinforcement, inserts, or supporting layers. Dimensions, constituent materials, hardness, membrane profile, mounting features, bonding requirements, and tolerances can be developed for valves, pumps, regulators, actuators, compressors, and pressure-control equipment.
A custom composite diaphragm combines a flexible working membrane with application-specific reinforcement, inserts, or supporting layers. It can separate chambers, respond to pressure, transfer force, or control movement in valves, pumps, regulators, and actuators. Dimensions, constituent materials, reinforcement structure, hardness, mounting features, and tolerances are developed according to the equipment design and operating conditions.

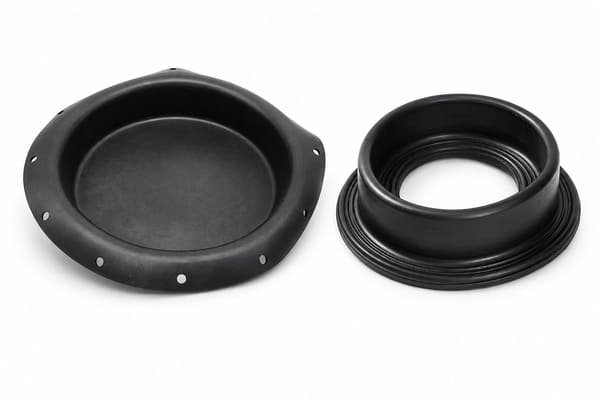

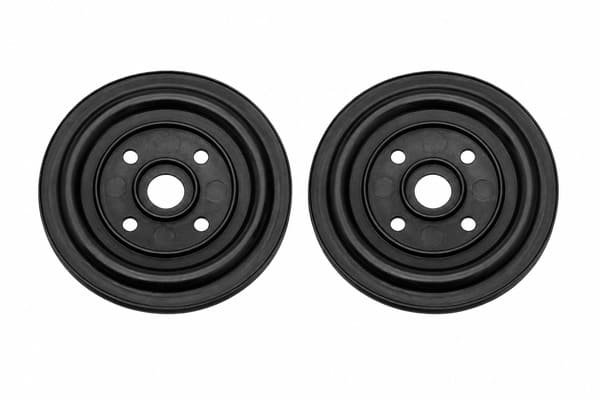

Custom Composite Diaphragm for Valves, Pumps, and Actuators
A custom composite diaphragm combines two or more distinct materials—typically a chemical-resistant facing layer such as PTFE bonded to a flexible, fabric-reinforced elastomer backing—into a single molded component engineered to withstand harsh process media while still delivering the flex durability a pump, valve, or actuator requires. This construction is widely used because a single material rarely satisfies both extremes simultaneously: PTFE alone offers outstanding chemical resistance but limited flex life, while most elastomers flex well but cannot survive aggressive chemical exposure. Composite diaphragms are supplied both as standard catalog designs and as fully custom parts engineered to a customer’s drawing, sample, or specific application requirements.
Key Specifications
| Parameter | Typical Range/Option |
|---|---|
| Facing Layer Options | PTFE (as thin as 0.002 in / 0.0508 mm), specialty fluoropolymer blends |
| Backing/Elastomer Options | EPDM, NBR, Butyl, FKM, Neoprene, Silicone, TPE |
| Reinforcement | Nylon, polyester, Kevlar, Nomex, cotton, fiberglass, polyamide/polyaramide fabric |
| Additional Reinforcement | Stainless steel mesh inserts, metal bonded inserts |
| Diaphragm Shapes | Flat, dished, dome/cap, corrugated, rolling, convoluted, top-hat rolling |
| Diameter Range | Custom, typically up to approximately 400mm for elastomer diaphragms, larger sizes available depending on manufacturer |
| Manufacturing Process | Compression molding, PTFE-to-rubber bonding, insert/metal bonding |
What Is a Custom Composite Diaphragm?
A composite diaphragm is built by bonding a resistant facing material—most commonly PTFE—directly onto a fabric-reinforced elastomer backing, producing a single component that presents its chemical-resistant face to the process fluid while relying on the elastomer’s flexibility and fatigue resistance for repeated actuation. This bonding process can use PTFE layers as thin as 0.002 inches, allowing the diaphragm to remain highly responsive and flexible despite the presence of a much stiffer PTFE layer. For additional mechanical strength, fabric reinforcement can be incorporated within the composite structure itself, and some designs further integrate metal inserts, stainless steel mesh, or bonded plastic/metal compounds for structural support in demanding applications.
Common Composite Configurations
| Configuration | Description |
|---|---|
| Fully laminated PTFE/elastomer | PTFE layer fully covers the elastomer backing on the process-contact side |
| Partially laminated PTFE/elastomer | PTFE covers only a portion of the backing, often the flexing region |
| Two-piece fluoropolymer-backed elastomer | Modified fluoropolymer bonded to an elastomer backing disc |
| PTFE + fabric reinforcement composite | Fabric added between or alongside PTFE and rubber for extra strength |
| Metal or plastic compound bonded | Rubber bonded to metal or engineering plastics for structural composites |
| PTFE + elastomer with mesh insert | Stainless steel mesh embedded for added dimensional and structural support |
Why Choose a Composite Construction
- Chemical resistance without sacrificing flex life — the PTFE or resistant facing layer isolates the process fluid from the elastomer backing, allowing the elastomer to focus purely on flexing performance rather than chemical survival.
- Performance in harsh, corrosive environments — composite diaphragms are specifically engineered to remain compatible with aggressive chemicals without limiting diaphragm life or responsiveness.
- Suitability for regulated industries — composite and PTFE-laminated diaphragms are used across pharmaceutical, chemical, and semiconductor applications where both purity and chemical resistance are critical.
- Structural reinforcement options — metal, plastic compound, or mesh reinforcement can be added to composite diaphragms for applications requiring extra dimensional stability under pressure.
- Design flexibility across shapes — composite construction is compatible with flat, dished, corrugated, and rolling diaphragm profiles, not just simple flat discs.
Custom Engineering and Design Services
- Reverse engineering from a sample — manufacturers can reproduce an existing composite diaphragm design directly from a physical sample part.
- Design from drawing or CAD file — fully custom composite diaphragms can be engineered from customer-supplied technical drawings or CAD models.
- Material and additive customization — facing and backing materials can be adjusted with additives such as glass, graphite, or carbon fill to modify wear resistance, conductivity, or friction characteristics.
- In-house compounding — some manufacturers formulate their own elastomer compounds and additive blends in-house, allowing fine-tuned chemical and mechanical property control beyond off-the-shelf materials.
- Value-added assembly — beyond the diaphragm itself, some manufacturers offer bonded sub-assemblies integrating plastics, metals, or other components directly into the composite diaphragm structure.
Manufacturing Process
Composite diaphragms are typically produced using a compression molding process that bonds the PTFE or resistant facing layer to the fabric-reinforced elastomer backing under heat and pressure, forming a permanent, void-free bond between the dissimilar materials. Reinforcing fabrics such as polyamide, polyaramide, Kevlar, or Nomex are positioned within the elastomer layer during molding to provide added tensile strength without compromising the bond to the facing layer. For designs requiring metal or plastic compound bonding—such as engineering plastic-elastomer combinations or rubber-to-metal composites—specialized bonding agents and precise process control are used to achieve reliable adhesion between the differing material types.
Common Applications
- Chemical processing equipment handling corrosive or aggressive media requiring PTFE-faced diaphragms.
- Pharmaceutical and biotechnology processing systems requiring hygienic, chemically inert diaphragm surfaces.
- Semiconductor manufacturing processes requiring high-purity PTFE diaphragm components.
- Drinking water treatment systems using diaphragms with approved materials for potable water contact.
- Diaphragm valves and pumps requiring split or composite PTFE/EPDM construction for corrosion resistance and sealing performance.
FAQ
What is a composite diaphragm?
A composite diaphragm combines a flexible membrane with one or more additional materials, such as fabric reinforcement, a rigid insert, or a supporting layer. The specific construction depends on the required sealing, movement, deformation control, mounting, and media compatibility.
Can the composite construction be customized?
Yes. Constituent materials, reinforcement type, insert geometry, layer arrangement, bonding interface, membrane profile, mounting features, and dimensions can be customized. Complete operating and installation requirements are needed before the construction is confirmed.
How are the diaphragm materials selected?
Material selection depends on the contact fluid or gas, temperature, pressure, movement frequency, environmental exposure, and required flexibility. Reinforcement and insert materials must also match the mechanical and bonding requirements. Final suitability may require application-specific testing.
Can an existing diaphragm be reproduced from a sample?
A physical sample can support structural and dimensional evaluation. Application conditions and available material information should also be provided. Wear, swelling, hardening, delamination, insert movement, or permanent deformation may affect the measured dimensions of a used diaphragm.
Are prototype samples available?
Sample availability depends on the geometry, constituent materials, composite construction, tooling requirements, and quantity. Initial samples can be arranged after technical review. Dimensions, installation fit, bonding, movement, sealing, and functional acceptance criteria should be defined before approval.
How are tooling, MOQ, and lead time confirmed?
Tooling, MOQ, and lead time depend on the diaphragm dimensions, materials, reinforcement or insert structure, inspection requirements, sample approval process, and order quantity. These details are confirmed after reviewing the complete specification and estimated annual demand.
Request a Custom Quote
Send your 2D drawing, 3D model, or physical sample for a custom composite diaphragm quotation. Include dimensions, constituent materials, reinforcement or insert requirements, contact media, temperature, pressure, stroke, cycling frequency, quantity, and estimated annual volume. Tooling, samples, MOQ, lead time, testing, and documentation will be confirmed after technical review.
