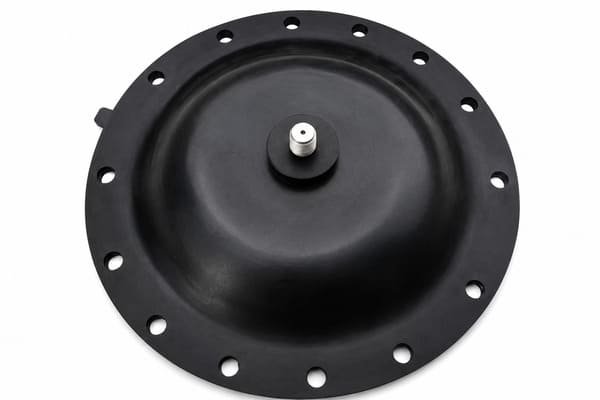

Control Valve Rubber Diaphragm

A control valve rubber diaphragm is a flexible component that separates internal chambers and converts pressure changes into controlled valve movement. Dimensions, membrane geometry, rubber material, Shore A hardness, sealing edge, and mounting features can be customized for the valve assembly. Final specifications depend on the contact media, temperature, pressure range, movement, cycling frequency, and installation structure.

Control Valve Rubber Diaphragm — Precision Molded for Reliable Modulating Actuation

A control valve rubber diaphragm is a flexible molded membrane that separates a valve’s control chamber from its main body, converting pilot pressure or pneumatic signal changes into precise mechanical movement of the valve’s internal disc, stem, or throttling element. This diaphragm is central to how automatic control valves modulate flow, pressure, or level without relying on a sliding stem seal in direct contact with the process fluid, which reduces mechanical wear and improves long-term sealing reliability. Because control valves are used across water distribution, industrial process, and pneumatic actuation systems, diaphragm material and construction are selected to match the specific process fluid, pressure range, and cycling frequency of each application.

Key Specifications

What Is a Control Valve Rubber Diaphragm?

A control valve typically uses a diaphragm-based actuator, where changes in control chamber pressure—driven by a pilot valve, positioner, or direct pneumatic signal—cause the diaphragm to flex and move an attached stem or disc assembly, throttling the main flow path proportionally. This diaphragm-actuated design allows smooth, hydraulically or pneumatically dampened motion, which produces more stable, repeatable valve modulation than a purely mechanical linkage. The diaphragm must maintain a leak-tight seal at its clamped edge while flexing continuously through its working stroke, so its material selection, reinforcement, and dimensional accuracy directly determine the valve’s response accuracy and service life.

Available Materials and Their Properties

EPDM is the most widely used compound for water-based control valves due to its combination of chemical stability in potable water and long-term resistance to outdoor UV and ozone exposure in exposed piping systems.

Why Reinforcement and Profile Matter

• High-cycle fatigue resistance — control valve diaphragms often flex continuously to hold a setpoint rather than making a single full-stroke movement, so fabric reinforcement is important to prevent early fatigue cracking.
• Consistent proportional response — a dimensionally stable, reinforced diaphragm flexes predictably at each pressure increment, which helps a modulating control valve hold a tight setpoint rather than hunting or oscillating.
• Convoluted profile for smooth stroke — a rolling fold allows smoother, more linear displacement across the modulating stroke range compared to a flat diaphragm stretching unevenly.
• Reduced hysteresis — a properly reinforced and profiled diaphragm reduces the lag between control signal and valve response, improving overall control accuracy.
• Leak-tight edge sealing — precise outer diameter and clamped-edge geometry prevent bypass leakage around the diaphragm regardless of how frequently it cycles.

Diaphragm Shape and Attachment Options

• Convoluted (rolling) diaphragms — the most common profile for modulating control valves, providing a longer, smoother stroke with lower stress concentration at the fold.
• Flat diaphragms — used in simpler or smaller control valve models with shorter stroke and lower cycling frequency requirements.
• Center-hole designs — molded with a center opening that fits over the valve’s internal stem for direct disc linkage.
• Bonded metal stud designs — a metal insert molded directly into the diaphragm center bolts securely to the valve’s disc assembly, reducing the risk of the diaphragm detaching from the stem under repeated cycling.

Manufacturing Process

Control valve diaphragms are produced using compression molding or transfer molding, with pre-cut fabric reinforcement layers placed into the mold cavity alongside the rubber compound before heat and pressure cure the assembly into a single bonded part. Careful control of cure temperature, time, and mold pressure ensures full fabric-to-rubber bonding without air entrapment, since any weak bond point becomes a likely fatigue failure site under continuous modulating duty. Outer diameter, bolt-hole spacing, and center attachment features are held to tight tolerances so the finished diaphragm seats correctly in the specific valve body it is designed to fit.

Common Applications

• Pilot-operated diaphragm control valves in water distribution and municipal piping systems.
• Pneumatic actuator diaphragms for industrial process control valves.
• Pressure-reducing, pressure-sustaining, and level control valves in irrigation and water systems.
• Industrial process valves handling water, oil, or chemical media requiring diaphragm-based control.
• HVAC and building automation control valves using diaphragm actuators.

Custom Manufacturing Options

• Custom diameter, thickness, and convolution profile engineered to match a specific control valve model.
• Custom fabric reinforcement type and ply count matched to expected cycling frequency and pressure differential.
• Custom rubber compound selection based on the process fluid, temperature range, and compliance requirements.
• Custom bonded metal stud or center-hole configuration for direct stem/disc attachment.
• Reverse-engineering service to reproduce diaphragms from a sample part or valve model number.
• Prototype and low-volume sampling available prior to full production tooling commitment.

FAQ

Can the diaphragm dimensions and structure be customized?

Yes. Diameter, thickness, membrane profile, sealing bead, clamping flange, mounting holes, and central connection can be customized for the valve assembly. Critical dimensions, tolerances, pressure area, and movement range should be identified before tooling development.

How should the rubber material be selected?

Material selection depends on the contact fluid or gas, additives, operating temperature, pressure, cycling frequency, and environmental exposure. Complete application conditions should be provided before the rubber compound is confirmed. Compatibility testing may be required for demanding or unfamiliar media.

Can a physical sample be used for development?

Yes. A physical sample can support dimensional and structural evaluation. Application conditions and any available material information should also be provided. Wear, swelling, hardening, tearing, or permanent deformation must be considered when measuring a used diaphragm.

Are prototype samples available?

Sample availability depends on the diaphragm structure, rubber compound, tooling requirements, and requested quantity. Initial samples can be arranged after technical review. Dimensions, installation fit, sealing areas, movement, hardness, and functional acceptance criteria should be defined before approval.

Is tooling required for a custom diaphragm?

Tooling requirements depend on the diaphragm dimensions, membrane profile, mounting features, material, and manufacturing process. Tooling cost is confirmed after reviewing the 2D drawing, 3D model, or physical sample. Design changes should be completed before tooling begins whenever possible.

How are MOQ and lead time confirmed?

MOQ and lead time depend on the diaphragm size, rubber compound, tooling status, inspection requirements, sample approval process, and order quantity. Provide the initial requirement and estimated annual volume so that the production arrangement can be evaluated.

Request a Custom Quote

Send your 2D drawing, 3D model, or physical sample for a control valve rubber diaphragm quotation. Include dimensions, tolerances, contact media, temperature, pressure range, movement conditions, material requirements, Shore A hardness, quantity, and estimated annual volume. Tooling, samples, MOQ, lead time, and documentation will be confirmed after technical review.
