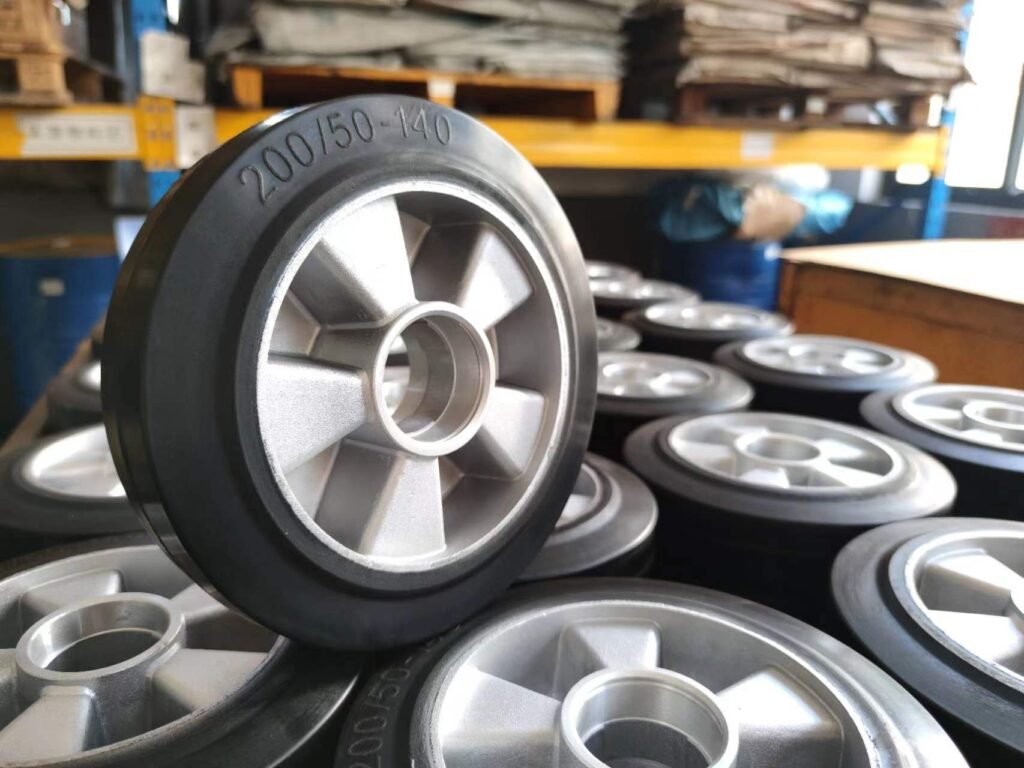

Rubber Wheel on Aluminum Core 200×50 mm
This 200×50 mm rubber wheel with aluminum core is engineered for industrial carts, trolleys, and material handling equipment. The wheel is constructed from high-quality solid rubber with a robust aluminum core, combining excellent wear resistance, stability, and high load capacity. With a Shore A hardness of 85A and a durable black tread, this wheel delivers reliable performance for both heavy-duty and continuous operation. The wheel is designed for easy installation with a 47 mm hub bore, perfectly fitting standard 6204 bearings (20 mm inner diameter).
Technical Specifications
| Parameter | Value | Remark |
|---|---|---|
| Wheel Size | 200 x 50 mm | Diameter 200 mm, width 50 mm |
| Tread Material | Solid Rubber | High abrasion resistance |
| Core Material | Aluminum | Lightweight, strong structure |
| Hardness | 85° Shore A | Firm and durable |
| Tread Color | Black | Non-marking, industrial use |
| Load Capacity | 280 kg | Tested static load |
| Bearing Seat Size | 47 x 14 mm | Fits 6204 bearing |
| Bore Diameter | 47 mm (hub) | Standard hub bore |
| Suitable Bearing | 6204 bearing | Inner bore 20 mm |
| Operating Temperature | -30°C to +80°C | Reliable in all environments |
Main Features
- Solid rubber tread with 85A hardness for superior wear resistance and stability
- High-strength aluminum core ensures high load capacity and reduces wheel weight
- Non-marking black rubber protects all floor surfaces
- Compatible with 6204 bearings (inner bore 20 mm), easy to install and replace
- Wide temperature range, suitable for industrial environments
- Robust design for heavy-duty and continuous use
Applications
- Industrial carts and trolleys
- Material handling equipment
- Warehouse and logistics transport systems
- Heavy-duty equipment and machinery
Advantages
- High load-bearing up to 280 kg
- Durable structure, long service life
- Easy installation with standard 6204 bearing compatibility
- Reliable performance in demanding and continuous applications
- Custom options available for hub, bearing, and tread color
Wheel Structure Visual
(A cross-sectional diagram of the wheel can be provided upon request.)
