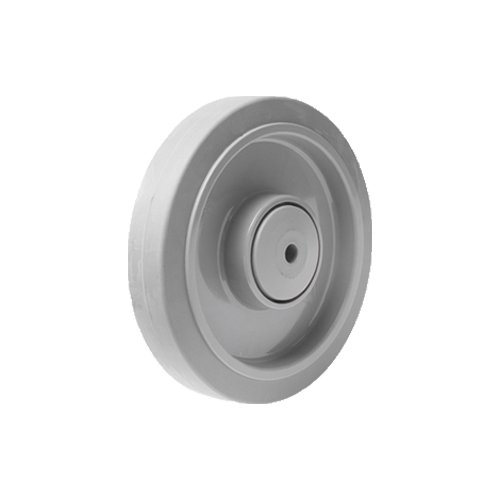

Grey rubber wheel 125mm, elastic tread with PA6 nylon core, silent rolling, suitable for carts and trolleys in commercial settings.
Grey rubber wheel 125mm, elastic tread with PA6 nylon core, silent rolling, suitable for carts and trolleys in commercial settings.
elastic rubber wheel 125 mm*36mm with grey elastic rubber-tyre. Hub made of grey Nylon/PA6 with threadguards. Double Ball bearing.
Rubber Wheels

Elastic Rubber Wheel 125 mm

125 mm*36mm-89mm elastic rubber wheel with PA6 hub, dual sealed bearings, 225 kg load. <br /> Thread guards, non-marking, quiet, ideal for scrubbers & carts.

符合国际标准

RoHS、REACH 等环保法规认证

定制化服务

支持颜色、硬度、配方与标识定制

质量保证

ISO 9001 质量控制流程，28年生产经验

立即询价 下载产品手册

需要帮助？

销售热线：+86 138 0000 0000
邮箱：sales@julongrubber.com
工作时间：周一至周五 9:00-18:00

产品详细信息

Elastic Rubber Wheel 125 mm – Model 3712536109gg

Product Overview

The 3712536109gg is a 125 mm diameter elastic rubber wheel featuring a gray PA6 (nylon) hub with integrated thread guards, and double sealed ball bearings. Designed for smooth, quiet rolling and excellent floor protection, this wheel is ideal for industrial and material handling applications.

Key Features & Benefits

  • Elastic gray rubber tread (approx. 75 Shore A) minimizes noise and reduces floor wear
  • Thread guards on hub protect bearings from debris
  • Durable dual sealed ball bearings ensure smooth, maintenance-free operation
  • Compact 125 mm size ideal for conveyors, carts, and scrubber machines
  • Temperature range from –30 °C to +70 °C suits most industrial environments
  • Load capacity up to 225 kg dynamic, supporting robust applications

Technical Specifications

Parameter Specification
Wheel Diameter 125 mm
Tread Width 36 mm
Tread Hardness Approximately 75 Shore A
Tread Material Elastic Rubber (gray)
Hub Material PA6 Nylon with thread guards
Bearing Type Dual Sealed Ball Bearings
Hub Hole Diameter 10 mm
Hub Width 46 mm
Load Capacity 225 kg (dynamic)
Operating Temperature –30 °C to +70 °C
Color Gray tread, gray hub

Ideal Applications

  • Floor scrubber and cleaning machines
  • Industrial conveyors and material handling systems
  • Warehouse carts and equipment trolleys
  • Applications in moderate-temperature environments
  • Areas requiring non-marking, protective wheel options

Why Choose Model 3712536109gg?

  • Robust load capacity of 225 kg supports demanding tasks
  • Thread guards extend bearing life in dusty conditions
  • Quiet, low-resistance operation enhances user comfort
  • Durable PA6 hub and 75 Shore A tread ensure longevity
  • Compact design fits many industrial OEM and retrofit applications
Contact us for bulk orders, custom options, or 3D/CAD files.
Email: kelly.c@rubberpartsmfg.com
Website: rubberpartsmfg.com

相关产品

Black rubber wheel with grey core, material handling caster wheel, heavy-duty floor application, smooth rolling design.

160mm Rubber Wheel with Nylon Core

160mm Rubber Wheel <br /> • Logistics and distribution containers<br /> • Retail store and display equipment<br /> • General industrial material handling

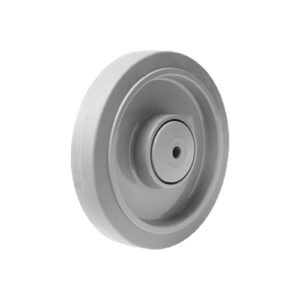

160mm elastic rubber wheel, grey tread with PA6 nylon core, silent operation, durable for industrial carts and trolleys.
