Industrial Machinery Elastomer Engineering Guide
Rubber Components for Machinery and Equipment
Custom rubber components help machinery seal fluids, isolate vibration, absorb impact, transmit or guide movement, protect interfaces and control wear. Reliable performance depends on the exact load, motion, frequency, speed, media, temperature cycle, mating hardware, installation and target life—not on a material name or hardness value alone.
Function Before Material

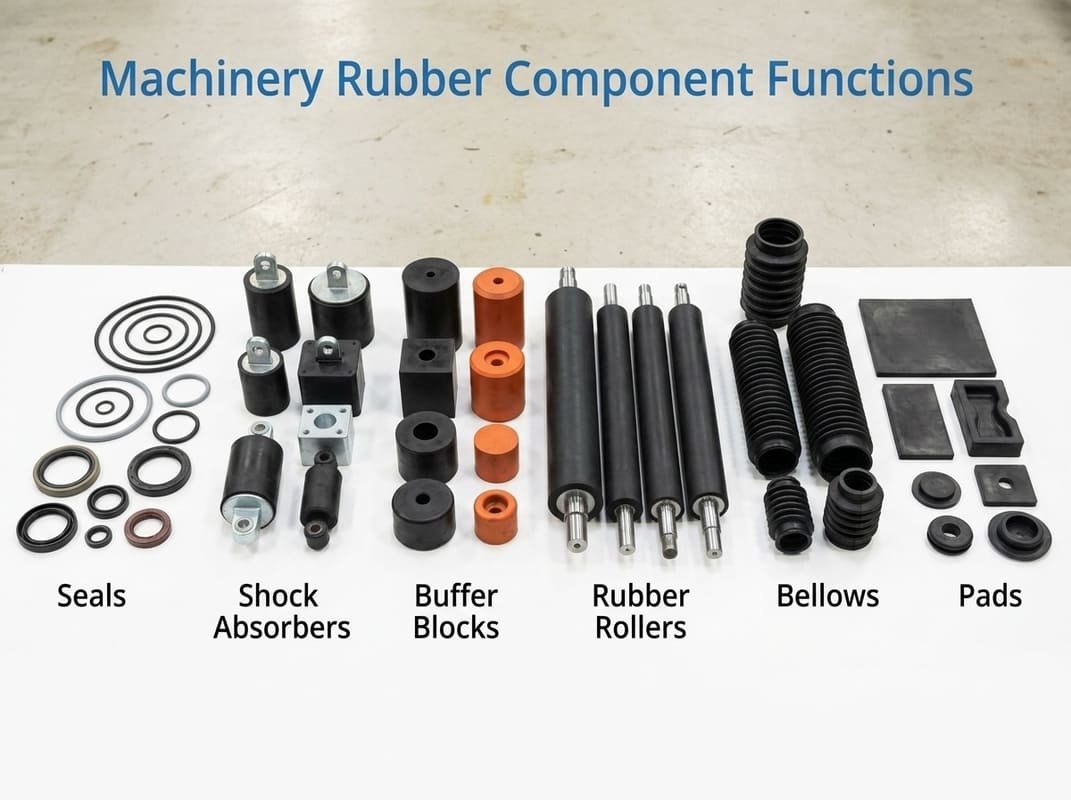

What Do Rubber Components Do in Machinery and Equipment?
A machinery rubber part is part of a mechanical system. Its geometry and compound must support a defined function while interacting with metal, plastic, fluids, fasteners, motion and the surrounding environment.
The same visible shape can perform very different duties. A ring may be a static gasket, a dynamic seal, a resilient spacer or a drive element. A molded block may isolate vibration, limit travel or absorb impact. Development should therefore begin with the failure consequence and equipment interface, followed by material selection and process planning.
| Primary Function | Engineering Inputs | Typical Risk if Misdefined |
|---|---|---|
| Seal fluids or contaminants | Pressure or vacuum, media, gap, surface finish, compression, movement and leakage criterion | Leakage, extrusion, compression loss or accelerated wear |
| Isolate vibration | Supported mass, load direction, excitation spectrum, stiffness, damping and available travel | Resonance, excessive motion, poor isolation or premature fatigue |
| Absorb shock or limit travel | Impact energy, velocity, stroke, repeated events, rebound and stop geometry | Bottoming, tearing, permanent set or force transmitted into the frame |
| Transmit or guide motion | Torque, traction, contact pressure, speed, slip, alignment and generated heat | Slippage, chunking, uneven wear or bond failure |
| Protect a moving interface | Stroke, bend, fold geometry, contamination, pressure difference and retention | Cracking, puncture, pull-off or trapped contamination |
| Cushion, grip or prevent damage | Load area, friction, compression, surface contact, abrasion and environment | Creep, marking, movement, edge damage or loss of grip |
Industrial Equipment Scope
Where Are Custom Rubber Parts Used in Industrial Machinery?
Custom elastomer parts appear throughout production equipment, drive systems, handling machinery, automated cells and supporting utilities. The equipment category helps identify likely hazards, but the exact installation still controls the specification.
Machine Tools and Processing Equipment
Seals, wipers, bellows, mounts, pads and protective covers around spindles, slides, enclosures, coolant systems and frames.
Conveying and Handling Systems
Drive rollers, guide wheels, bumpers, suction parts, scrapers, pads and anti-slip contact components.
Robotics and Assembly Equipment
Gripper pads, end-effector covers, cable grommets, bellows, stops, damping parts and custom foot pads.
Printing and Packaging Machinery
Feed rollers, vacuum cups, wheels, diaphragms, flexible covers and sealing parts exposed to repeated high-cycle motion.
Motors, Generators and Compressors
Mounts, coupling elements, shaft or enclosure seals, gaskets, fan-related parts and cable protection components.
Agricultural and Construction Machinery
Bushings, boots, bellows, bumpers, hoses, grommets, pads and weather-exposed protection parts.
Hydraulic and Pneumatic Equipment
O-rings, diaphragms, cups, wipers, bladders, boots and bonded parts for controlled fluid or air movement.
Mixers, Mills and Screening Equipment
Wear liners, flexible connectors, mounts, seals, gaskets, sleeves and impact-resistant molded parts.
Panels and Auxiliary Equipment
Door seals, cable entry parts, vibration pads, bumpers, plugs and covers for dust, weather and contact protection.
| Equipment Area | Common Component Direction | Questions to Resolve |
|---|---|---|
| Drive and transmission | Coupling inserts, rollers, rings, buffers and bonded hubs | Torque, misalignment, speed, start-stop events, heat and fail-safe behavior |
| Linear or rotary mechanisms | Seals, wipers, boots, bellows, bushings and guides | Stroke, speed, finish, lubrication, particles, friction and target cycles |
| Machine frame and foundation | Mounts, pads, feet, bumpers and isolators | Static load, center of gravity, frequency, travel, anchoring and leveling |
| Product-contact or clean zones | Gaskets, tubing, suction cups, rollers and protective parts | Exact media, cleaning, contamination limits and confirmed regulatory requirements |
| Outdoor or mobile equipment | Boots, grommets, bushings, seals, hoses and stops | Weather, ozone, mud, water, oil splash, impact and temperature cycling |
Custom Product Range

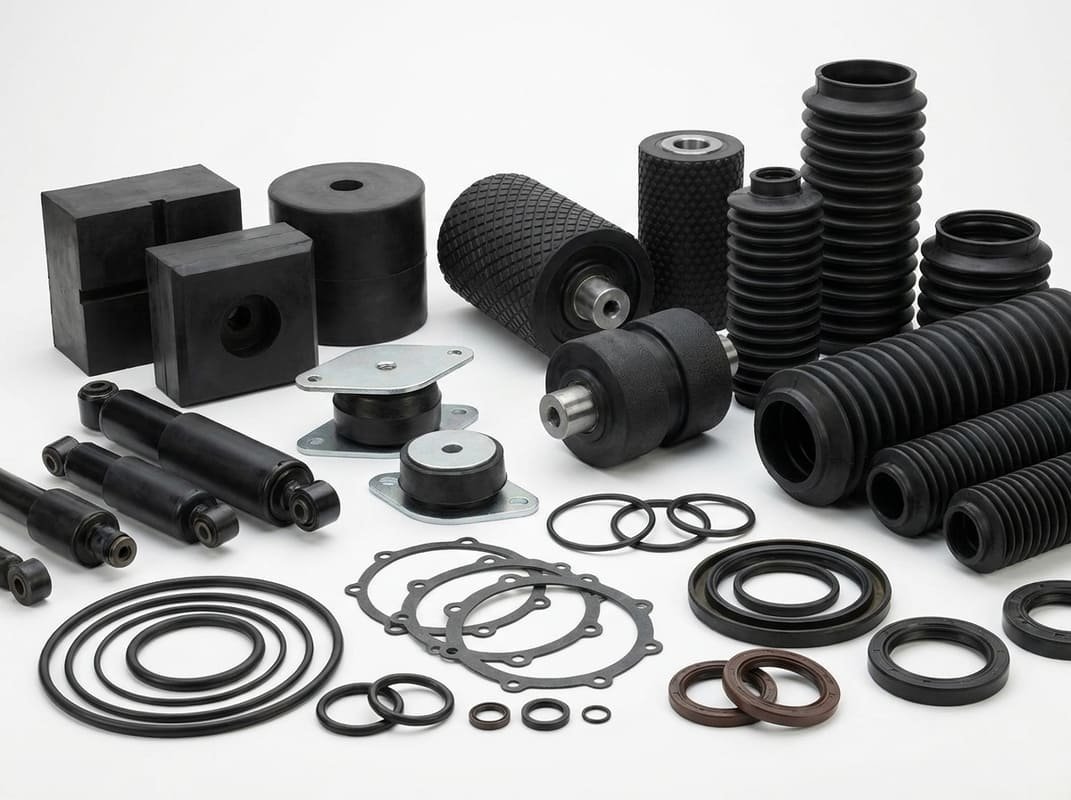

Which Rubber Components Can Be Customized for Machinery?
Part format follows function and manufacturing feasibility. Geometry, compound, hardness, tolerances, inserts, reinforcement, surface condition and acceptance criteria are confirmed from the project information.
Seals, Gaskets and O-Rings
Static or dynamic parts for covers, housings, cylinders, fluid interfaces and environmental sealing.
Bushings and Isolation Mounts
Resilient components that carry load, permit controlled movement and reduce vibration or shock transfer.
Wheels and Rollers
Free-running, guide, pinch, feed, drive or coated rollers developed around load, traction, wear and speed.

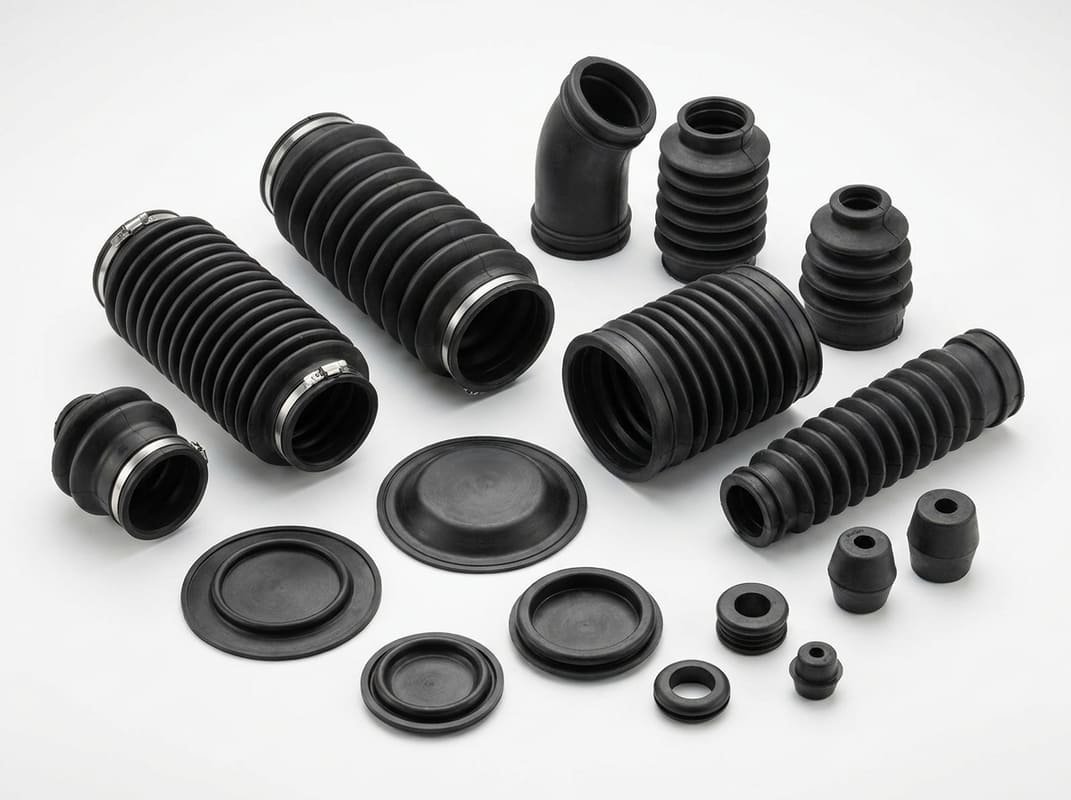

Bellows and Boots
Flexible covers for rods, joints, screws, guides, connectors and mechanisms exposed to dirt or weather.
Diaphragms and Bladders
Flexible barriers that separate media, transfer pressure or provide controlled displacement in actuators and fluid systems.
Grommets and Cable Parts
Penetration seals, strain-relief pieces and protective sleeves matched to panel, cable and installation requirements.
Bumpers, Stops and Pads
Compression parts for impact control, cushioning, anti-slip support, spacing and surface protection.
Coupling and Drive Elements
Flexible inserts, rings and blocks that transmit torque while accommodating defined shock or misalignment.
Rubber-to-Metal Parts
Bonded mounts, wheels, rollers, bushings, plates and inserts made through controlled substrate preparation.
Impellers and Flexible Vanes
Molded rotating components for selected pumping or fluid-moving duties, reviewed by media, speed and dry-running risk.
Hoses, Tubes and Profiles
Extruded or formed products for selected transfer, drainage, protection, enclosure and flexible-connection duties.
Wear and Grip Components
Scrapers, liners, sleeves, suction pads, gripper surfaces and other parts designed around friction or abrasion.
Sealing System Design

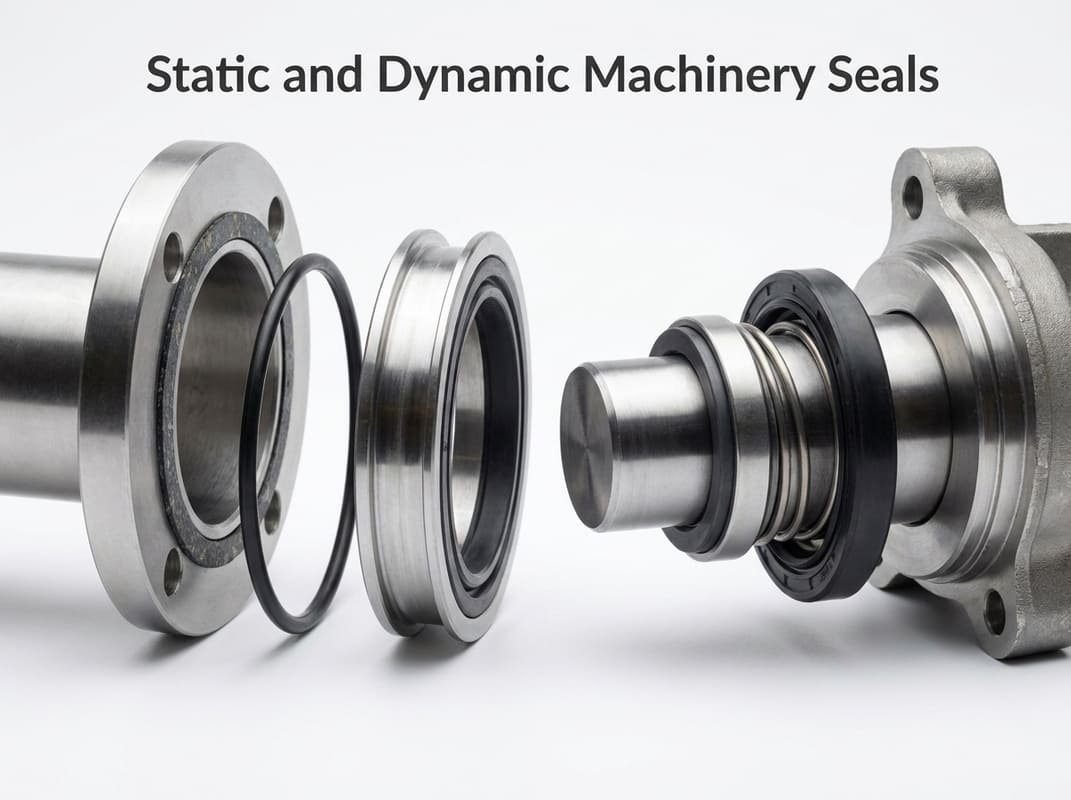

How Do Static, Reciprocating and Rotary Interfaces Change Seal Requirements?
A seal should be selected from the complete interface: media, pressure or vacuum, direction, motion, gap, surface finish, lubrication, assembly method and allowed leakage. Static and dynamic seals can use similar materials but require different geometry and validation.
| Interface | Important Inputs | Common Failure Drivers |
|---|---|---|
| Static face or cover seal | Compression, flange stiffness, fastener load, finish, media and temperature cycling | Under-compression, over-compression, flange distortion, compression set or surface damage |
| Static radial seal | Groove, squeeze, stretch, clearance, assembly lead-in and pressure direction | Twist, cutting, extrusion, incorrect groove fill or trapped pressure |
| Reciprocating rod or piston | Stroke, speed, pressure, finish, lubrication, side load and contamination | Friction heat, lip wear, rolling, spiral failure, particles or misalignment |
| Rotary shaft interface | Shaft speed, runout, finish, lubrication, heat, pressure and eccentricity | Dry running, heat buildup, wear track, lip hardening or shaft damage |
| Wiper or scraper | Contaminant type, interference, rod finish, ingress direction and drain path | Edge damage, debris trapping, excessive friction or inadequate wiping |
| Diaphragm or rolling interface | Pressure differential, stroke, convolution, clamp, fatigue, media and reinforcement | Fold cracking, edge cutting, delamination, inversion or stress concentration |
Control Compression
Stops, groove depth, flange stiffness and fastener distribution should create repeatable compression without crushing or buckling the part.
Protect Dynamic Edges
Lead-ins, finish, lubrication, alignment and cleanliness can determine whether a seal survives assembly and initial motion.
Test the Complete Boundary
A material property sheet does not establish leakage performance at the actual gap, surface and pressure cycle.
Vibration and Shock Control

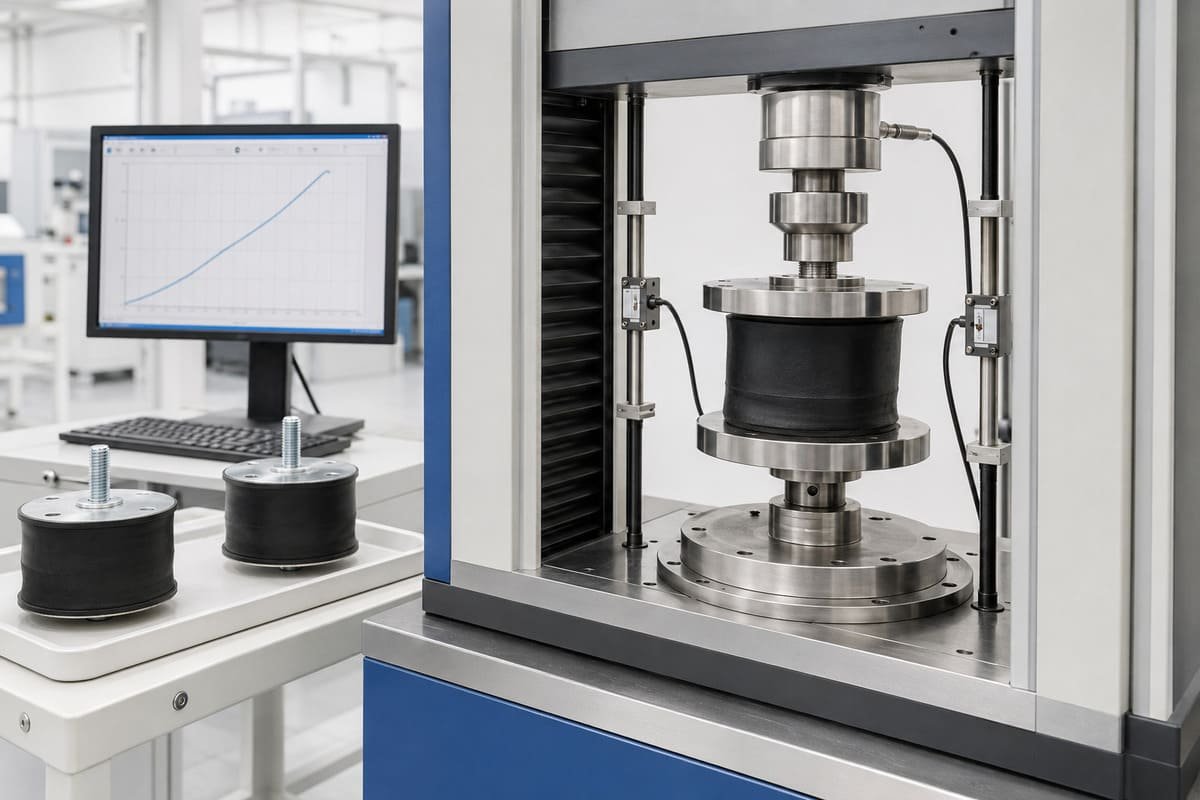

How Should Rubber Mounts, Bushings and Isolation Pads Be Specified?
Vibration isolation is a system problem. Static load capacity alone is insufficient; the supported mass, load direction, stiffness, damping, excitation spectrum, natural frequency, travel, restraint and environment must be evaluated together.
Static Load and Deflection
Define load per mounting point, center of gravity, compression or shear direction, allowable sag and preload.
Excitation Frequency
Record operating speed, harmonics, variable-speed ranges, reciprocating forces and transient events.
Dynamic Stiffness
Rubber response changes with frequency, amplitude, temperature, preload and compound; static stiffness is not automatically equivalent.
Damping and Resonance
Damping limits amplification near resonance, while effective isolation normally requires operation beyond the resonant region.
Motion and Restraint
Available travel, snubbing, fail-safe retention, lateral stability, leveling and pipe or cable forces affect mount behavior.
Environmental Exposure
Oil, coolant, heat, ozone, weather, cleaning and long-term compression can alter stiffness and durability.
| Design Input | Why It Matters | Useful Validation Direction |
|---|---|---|
| Load distribution | Unequal load changes deflection, natural frequency and stability at each mount | Measure equipment corner loads or define center of gravity and mounting geometry |
| Compression, shear or combined loading | Geometry and stiffness differ by load direction | Test in the installed orientation with representative preload |
| Operating frequency range | Isolation can improve or worsen as speed crosses resonance | Measure transmissibility or transfer stiffness over the relevant frequency range |
| Shock and overtravel | A mount optimized for vibration may not absorb a severe transient without bottoming | Apply defined shock, displacement and restraint conditions |
| Temperature and ageing | Stiffness, damping and set can change over time | Condition parts before repeating load-deflection or dynamic checks |
Rolling and Driven Contact

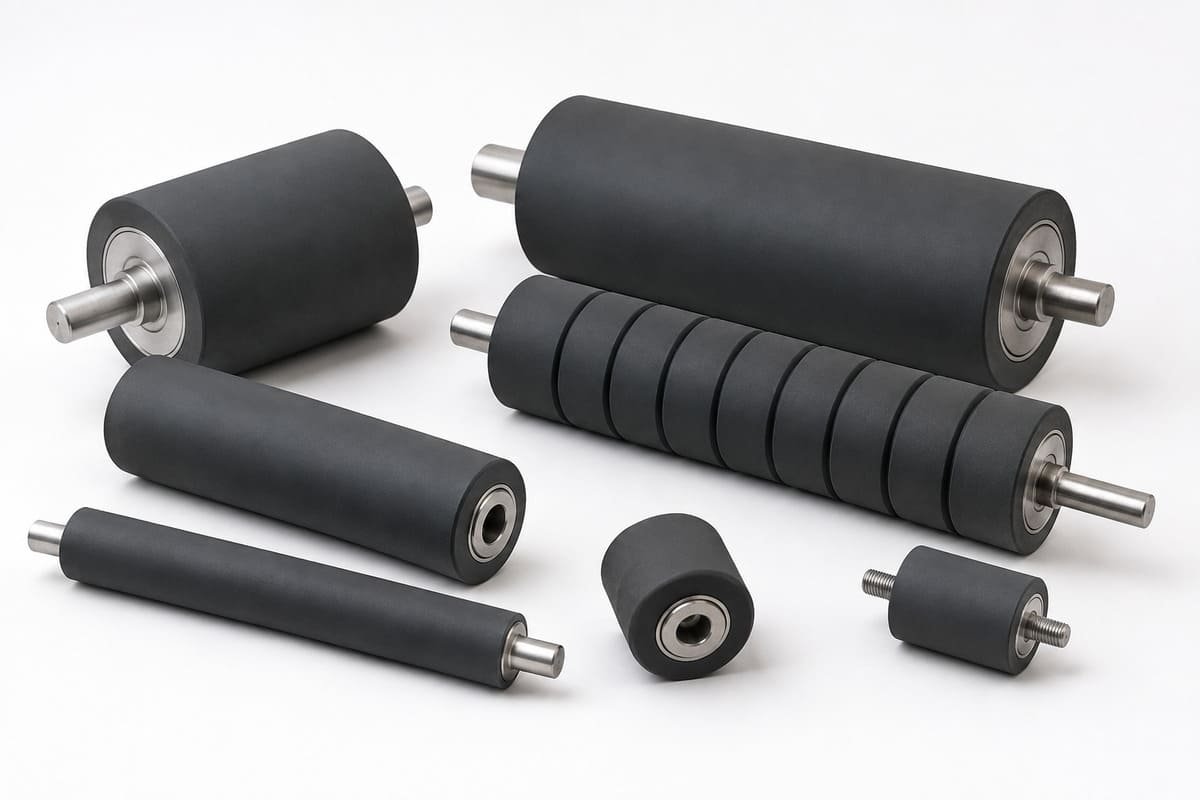

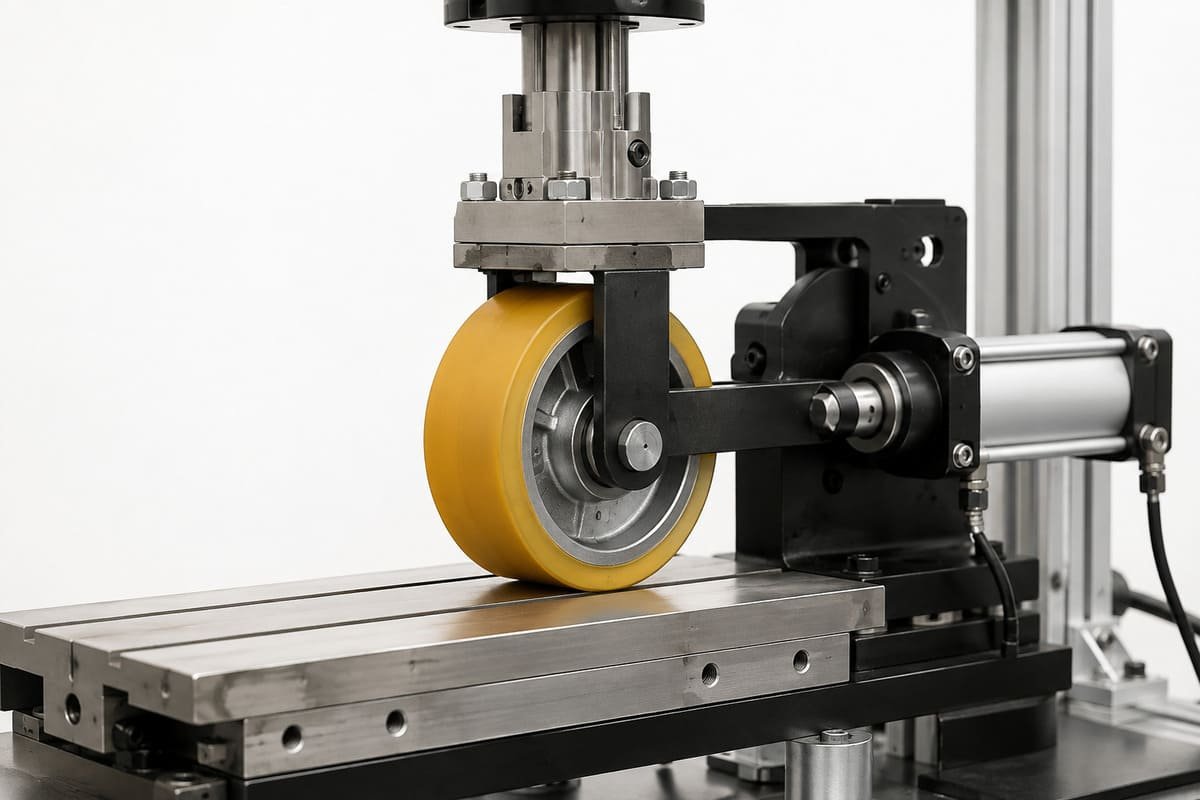

What Controls Rubber Wheel, Roller and Drive-Contact Performance?
Rubber wheels and rollers may support load, guide a product, meter material, grip a surface, transmit torque or absorb irregularity. The correct construction depends on the contact mechanics and duty cycle rather than color or hardness alone.
| Component Role | Critical Inputs | Typical Risks |
|---|---|---|
| Load wheel or support roller | Radial load, speed, floor or rail, diameter, tread, heat, impact and bearing interface | Flat spotting, heat buildup, chunking, overload or tread separation |
| Drive or traction roller | Torque, contact pressure, coefficient of friction, slip, speed and contamination | Glazing, slippage, abrasion, thermal damage or bond failure |
| Pinch or nip roller | Nip force, crown, parallelism, material thickness, surface finish and runout | Uneven pressure, tracking error, marking, compression set or eccentric wear |
| Feed or metering roller | Grip, release, dimensional stability, speed, cleanliness and product sensitivity | Double feeding, inconsistent advance, contamination or surface transfer |
| Guide or idler roller | Alignment, side load, low rolling resistance, edge contact and bearing fit | Tracking drift, edge wear, vibration or hub movement |
| Coated metal roller | Core material, surface preparation, bond line, rubber thickness, grinding and balance | Delamination, trapped air, eccentricity, exposed edges or coating damage |
Contact Stress
Load, tread geometry, crown and hardness determine the contact patch and localized strain.
Hysteresis Heat
Repeated deformation generates heat. Speed, load, diameter, compound and cooling conditions control temperature rise.
Bond and Core Design
Insert edges, mechanical retention, substrate preparation, adhesive route and differential strain affect coated-part durability.
Movement and Protection

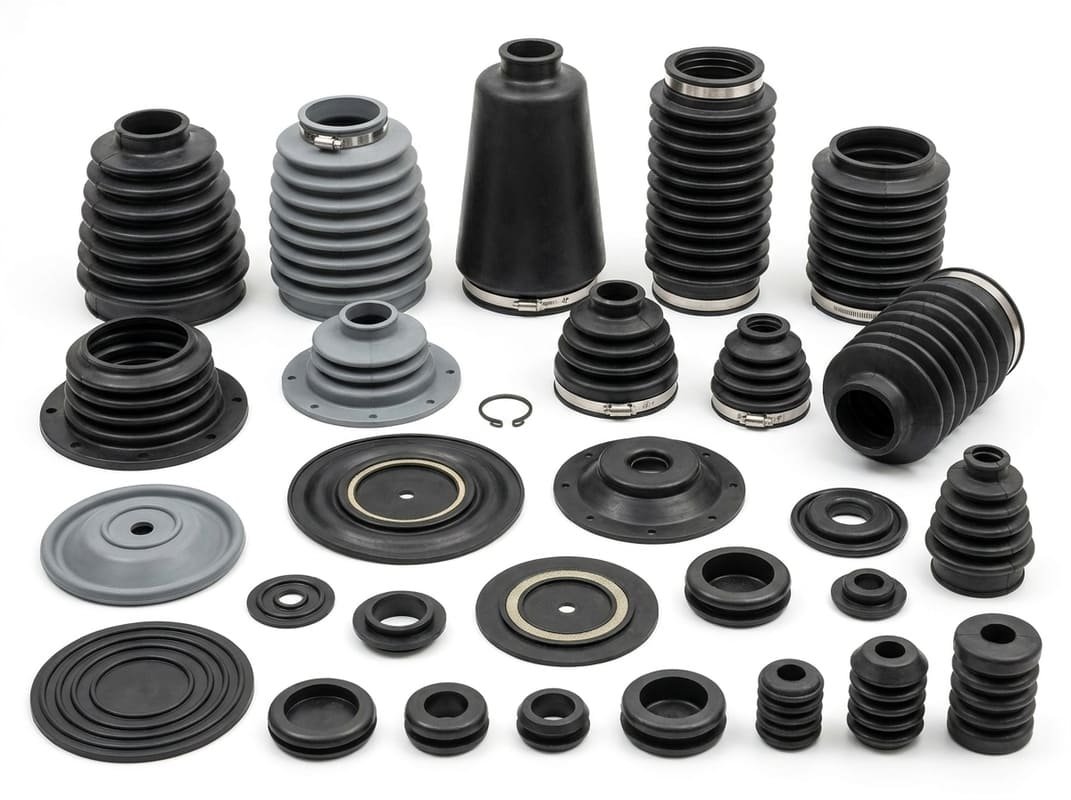

How Should Bellows, Boots, Diaphragms and Protective Parts Be Designed?
Flexible components survive by distributing strain. Free length, installed length, stroke, bend, pressure difference, fold geometry, clamp region and environmental exposure must be considered before the material is finalized.
| Part Type | Primary Function | Design and Validation Focus |
|---|---|---|
| Bellows | Protect a rod, screw, joint or guide while accommodating axial or angular motion | Convolution strain, minimum and maximum length, fold contact, pressure equalization and retention |
| Boots | Exclude dust, water or debris from joints, levers, connectors or shafts | Flex location, clamp fit, twist, puncture, weather exposure and installation damage |
| Diaphragms | Separate media or transfer pressure and force without sliding seals | Pressure differential, effective area, stroke, clamp edge, fatigue and reinforcement |
| Bladders | Contain or separate gas and liquid through controlled expansion | Volume change, precharge, fold, permeation, media, pressure cycle and shell contact |
| Grommets and sleeves | Protect cables, tubes and penetrations from sharp edges, vibration or ingress | Panel thickness, pull-through force, cable range, retention and abrasion |
| Bumpers and stops | Limit travel, absorb impact or prevent hard contact | Energy, compression curve, bottoming, rebound, mount strength and repeated impact |
Free Shape Is Not Installed Shape
Record assembly compression, extension, bend, twist and clamp condition. A part that looks correct on a table may be overstressed after installation.
Protect the Flex Zone
Parting lines, trimming marks, insert edges, fabric terminations and sharp hardware should be kept away from the highest cyclic strain where possible.
Complete Duty Definition
Which Operating Conditions Must Be Defined Before Selecting a Compound?
Machinery service is rarely described by one maximum temperature or one fluid. Continuous conditions, start-up, cleaning, shutdown, outdoor exposure and abnormal events can control different failure mechanisms.
- Minimum, continuous and peak temperature at the part
- Exact oils, fuels, coolants, water, chemicals and cleaners
- Static, reciprocating, rotating, flexing or rolling motion
- Load magnitude, direction, dwell and load distribution
- Speed, frequency, stroke, acceleration and start-stop cycle
- Pressure, vacuum, pulsation and pressure direction
- Abrasion, particles, chips, dust, mud and washdown
- Ozone, UV, weather, humidity and outdoor storage
- Electrical insulation, conductivity or static-control needs
- Cleaning, sterilization or contamination-control requirements
- Installation lubricant, mating materials and surface finish
- Target life, maintenance interval and failure consequence
| Duty Phase | Information to Capture | Why It Can Change the Design |
|---|---|---|
| Storage and transport | Duration, packaging, deformation, temperature, ozone, UV and contamination | Parts can take set, crack, distort or become contaminated before installation |
| Installation | Stretch, compression, tools, lubricant, sharp edges, clamping and alignment | Initial cuts, twist, over-compression or poor seating can cause early failure |
| Start-up | Dry motion, cold stiffness, pressure ramp, acceleration and transient loads | Start-up friction or shock may exceed steady-state conditions |
| Normal operation | Continuous load, motion, frequency, media, temperature and generated heat | Controls ageing, fatigue, wear, creep and energy loss |
| Cleaning and shutdown | Cleaning fluid, steam or water, depressurization, cooling and idle compression | A secondary exposure may be more aggressive than the production medium |
| Abnormal event | Jam, overload, loss of lubrication, overtravel, impact, vacuum or emergency stop | May require a restraint, sacrificial design or separate acceptance criterion |
Compound Selection

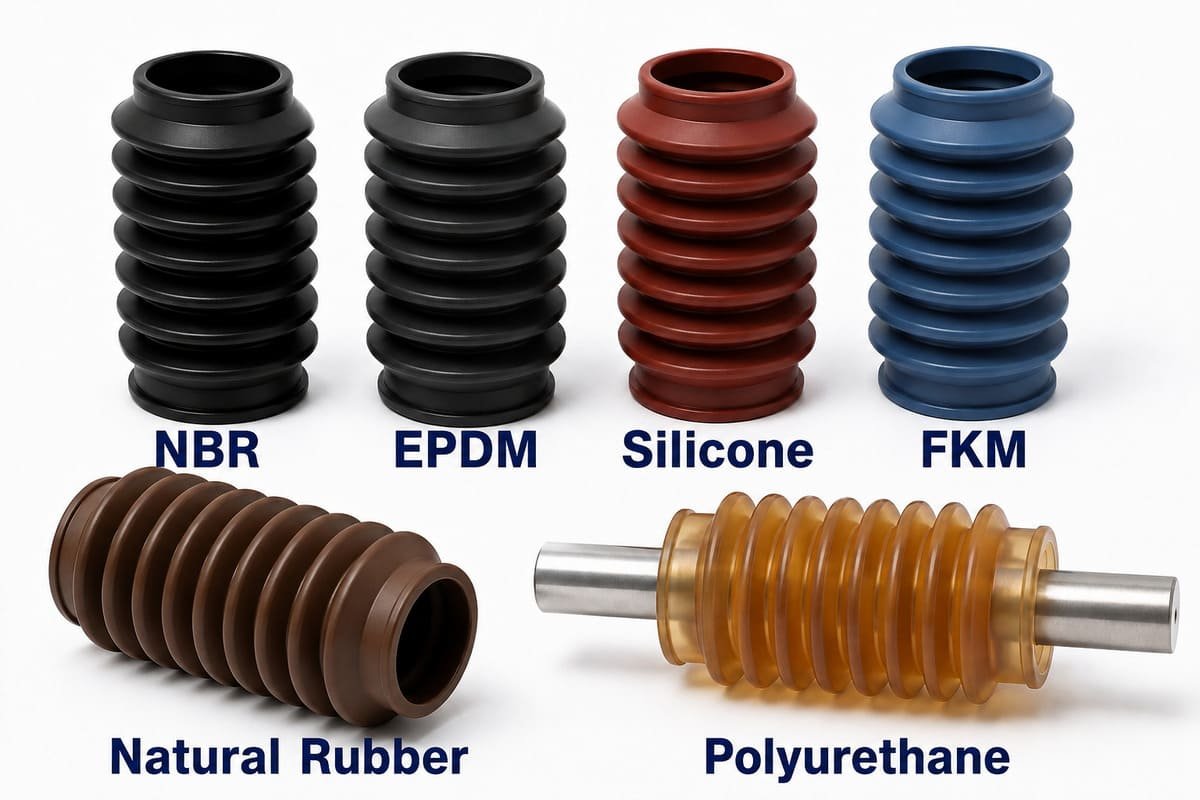

How Do Common Rubber Materials Compare for Machinery Components?
Polymer family is an initial filter. The approved compound must also meet the required hardness, mechanical behavior, fluid resistance, ageing, dynamic response, color, cleanliness and manufacturing process. Two compounds from the same family can perform differently.
| Material Family | Potential Use Direction | Important Limitations or Checks |
|---|---|---|
| NR | High-resilience mounts, bushings, wheels, impact parts and abrasion duties | Oil, ozone, weather and heat exposure require careful review |
| SBR | General-purpose pads, bumpers, wheels and wear parts where service permits | Oil, ozone, weather and elevated-temperature limitations |
| NBR | Oil-contact seals, gaskets, diaphragms, rollers, mounts and fluid-power parts | Grade-specific fuel, ozone, weather, heat and low-temperature behavior |
| HNBR | Selected higher-temperature, oil-contact and mechanically demanding seals or bonded parts | Compound-specific media, low-temperature, dynamic heat and cost review |
| EPDM | Outdoor, weather, water, steam, glycol, enclosure seals and flexible protection parts | Generally unsuitable for petroleum oils and hydrocarbon fuels unless specifically validated |
| CR | Weather-resistant boots, bellows, mounts, protective parts and selected oil-splash duties | Not a universal solution for severe oil, fuel, chemical or high-temperature service |
| Silicone | Selected temperature, electrical, low-force sealing, cushioning and clean-component duties | Tear, abrasion, oil, gas permeability and high-load dynamic use require review |
| FKM | Selected oil, fuel, chemical and elevated-temperature seals or gaskets | Type-specific low-temperature, steam, amine, base and dynamic behavior |
| Polyurethane | Wear-resistant wheels, rollers, wipers, scrapers, bumpers and high-load parts | Hydrolysis, heat buildup, compression behavior and chemical compatibility are grade-dependent |
| ACM | Selected hot-oil seals, gaskets and transmission-related components | Low-temperature, water, steam and dynamic property limitations require review |
| AEM | Selected hot-oil, heat and automotive-style machinery sealing duties | Fuel, chemical, low-temperature and compression performance depend on the compound |
| ECO | Selected fuel, oil, ozone and low-permeation hose or seal applications | Water, steam, heat, processing and dynamic requirements need compound-specific validation |
| IIR | Low-permeation bladders, diaphragms and selected damping or chemical duties | Oil resistance, resilience, bonding and dynamic-fatigue requirements require review |
Approve the Exact Compound
Record the compound or purchased grade, cure system, physical-property limits, relevant ageing evidence, process route and authorized change controls.
Separate Material and Part Evidence
A standard test sheet supports material screening. It does not prove sealing, isolation, traction, fatigue or bond performance in the final geometry.
Mechanical Design Inputs
How Do Load, Deformation, Frequency and Motion Affect Rubber Part Design?
Elastomers are nonlinear and time-dependent. Their force response changes with geometry, strain, rate, frequency, temperature, preload and ageing. A hardness result cannot replace a load-deflection curve or dynamic test when mechanical response controls the equipment.
| Design Variable | Effect on the Part | Review or Control Direction |
|---|---|---|
| Compression and shape factor | Constrained rubber can become much stiffer as loaded area and free bulge area change | Model the real contact and define controlled compression stops where needed |
| Shear and combined loading | Can provide lower stiffness but introduces stability, bond-edge and lateral-motion concerns | Define load vector, restraint, preload and maximum displacement |
| Strain amplitude | High local strain accelerates heat generation, crack initiation and permanent deformation | Reduce sharp transitions and validate the highest-strain region |
| Rate and frequency | Changes apparent stiffness, damping and temperature rise | Test at relevant speed, frequency, amplitude and temperature |
| Dwell and creep | Long load duration can increase deflection and reduce retained force | Include time under load and recovery in acceptance criteria |
| Friction and slip | Affects traction, wear, heat and stick-slip behavior | Use representative counterface, contamination, pressure and speed |
| Misalignment and runout | Concentrates load and cyclic strain on one region | Include hardware tolerance, shaft movement and assembly alignment |
| Thermal expansion | Changes squeeze, clearance, preload and material response | Review the full equipment temperature cycle and mating materials |
| Overtravel or jam | Can bottom, buckle, tear or overload bonds and fasteners | Define stops, fail-safe retention or sacrificial behavior |
Use Representative Preload
Many dynamic properties change after installation compression or supported load is applied.
Measure Heat Buildup
High-cycle deformation can create internal heat even when ambient temperature is moderate.
Protect Against Instability
Slender or highly compressed parts may bulge, buckle, roll or walk if lateral restraint is inadequate.
Fit and Measurement
How Should Dimensions, Tolerances and Mating Interfaces Be Specified?
Rubber parts deform under their own weight and under measuring force. Tolerances should reflect function, process capability, part size, compound shrinkage and the agreed conditioning and measurement method.
| Characteristic | Why It Matters | Recommended Definition |
|---|---|---|
| Sealing section and compression | Controls contact stress, groove fill and retained sealing force | Define free dimension, installed gap, squeeze direction and measurement force |
| Mount or bushing datums | Controls assembled position, alignment and load path | Reference functional metal or rubber surfaces and installed orientation |
| Wheel or roller diameter | Affects speed, contact, nip, feed length and runout | State diameter, crown, concentricity, finish and measuring condition |
| Bonded insert location | Changes rubber thickness, stress distribution and assembly fit | Dimension from stable insert datums and control insert movement |
| Bellows or boot length | Determines installed compression, extension and fold strain | State free, installed, minimum and maximum operating lengths |
| Panel or groove fit | Controls retention, pull-through force and compression | Provide mating thickness, edge radii, groove, lead-in and tolerance stack |
| Flash and parting line | Can interfere with sealing, flexing, appearance or assembly | Identify functional surfaces and location-specific workmanship limits |
| Soft-part measurement | Contact force and conditioning can change the reading | Agree instrument, fixture, force, temperature, rest time and sampling |
- Identify the functional interface. Mark sealing, loading, gripping, locating, flexing and bonded surfaces.
- Build the tolerance stack. Include rubber, insert, housing, shaft, fastener, temperature and assembly variation.
- Choose practical controls. Apply tight tolerances only where function requires them and the process can support them.
- Agree the measurement method. Define conditioning, datum, fixture, contact force, gauge and acceptance record.
- Confirm the installed result. Use fit, force, runout, leakage, movement or assembly checks where free dimensions are insufficient.
Composite Construction
When Are Rubber-to-Metal Bonding, Inserts and Reinforcement Needed?
Inserts and reinforcement can carry load, control deformation, provide attachment or improve dimensional stability. They also create interfaces that must survive surface contamination, thermal expansion, fatigue, impact and manufacturing variation.
Bonded Metal Inserts
Used in mounts, bushings, rollers, wheels, plates and drive elements to transfer load through a defined bonded area.
Mechanical Retention
Holes, grooves, knurls, flanges and undercuts can support retention where geometry and molding flow are controlled.
Fabric Reinforcement
Controls growth, pressure deformation or flex behavior in diaphragms, sleeves, connectors and composite parts.
Plastic Inserts
Can provide insulation, low mass or integrated assembly features but require heat, shrinkage and adhesion review.
Cord or Wire Reinforcement
Supports selected rotational, pressure or tensile loads when placement, tension and end termination are controlled.
Multi-Hardness or Layered Parts
Can separate grip, wear, damping or support functions, subject to material compatibility and interface validation.
| Control Point | What Must Be Managed | Possible Evidence |
|---|---|---|
| Insert specification | Material, coating, dimensions, surface condition, cleanliness and revision | Incoming inspection, certificate or approved sample |
| Surface preparation | Degreasing, blasting or treatment, contamination prevention and storage time | Controlled work instruction and process records |
| Primer and adhesive | Product identity, lot, mixing, thickness, drying, shelf life and handling | Lot traceability and application controls |
| Insert location | Fixture, movement during molding, rubber coverage and exposed edges | Dimensional check, sectioning or dedicated fixture |
| Bond geometry | Edge stress, peel, shear, rubber thickness and differential movement | Design review and representative fatigue or destructive test |
| Reinforcement placement | Material, orientation, overlap, tension, end location and trapped air | Lay-up record, section inspection or functional test |
Tooling and Production Route
How Are Custom Machinery Rubber Components Manufactured and Sampled?
Manufacturing route depends on geometry, compound, insert or reinforcement, critical surfaces, quantity and validation plan. Tool design and finishing methods should protect the features that control machine function.
Compression Molding
Suitable for many seals, pads, diaphragms, larger parts and reinforced constructions. Charge placement, venting, cure and flash require control.
Transfer Molding
Supports detailed cavities and selected insert-molded parts. Runner balance, air traps, knit lines and scorch behavior need review.
Injection Molding
Supports repeatable production for suitable geometry, volume and compounds. Gate, venting, cure balance and handling affect quality.
Extrusion and Joining
Used for continuous profiles, tubes and seals. Die design, cure, cut length, splices and molded corners are managed together.
Rubber-to-Metal Bonding
Insert preparation, treatment, adhesive application, storage, molding and bond-edge inspection form one route.
Fabric or Insert Molding
Reinforcement and inserts are positioned and retained before molding, with orientation and contamination controlled.
Roller Covering and Finishing
Core preparation, building, curing, grinding, crowning, finish, concentricity and balance are defined by the roller function.
Die Cutting and Conversion
Suitable sheet or sponge materials can be converted into gaskets, pads and strips where edge and thickness requirements permit.
Trimming and Post-Processing
Manual, mechanical, cryogenic or tool-based finishing is selected around sealing, flexing, gripping and appearance surfaces.
- Application review. Confirm function, failure consequence, interfaces, service, validation and commercial input.
- Drawing and feasibility review. Resolve critical dimensions, tolerances, material, draft, parting line, gate, vent and trimming.
- Tooling and control planning. Define cavities, inserts, gauges, visual zones, traceability and sample evidence.
- Initial samples. Inspect dimensions, material properties, appearance, fit and agreed functional characteristics.
- Assembly validation. Test in representative hardware under the required load, motion, media and environment.
- Production release. Freeze the approved revision, compound, tooling, process, inspection and change controls.
Failure Prevention

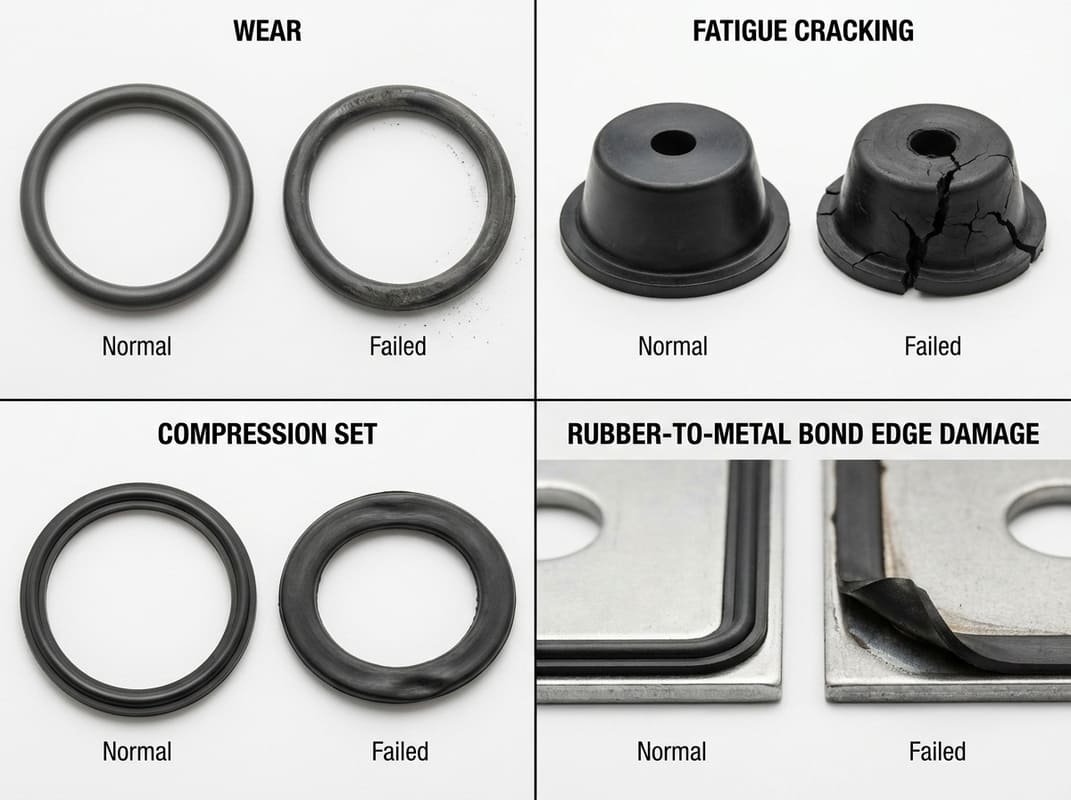

Why Do Machinery Rubber Parts Crack, Wear, Slip, Set or Delaminate?
Similar symptoms can have different causes. Effective corrective action preserves evidence from the part, equipment, mating hardware, operating record, material lot, tooling cavity and production process before deciding the cause.
| Observed Failure | Possible Contributors | Investigation Direction |
|---|---|---|
| Cracking at a fold or edge | Excess strain, sharp transition, ozone, heat, wrong installed length, trimming damage or fatigue | Map crack origin, installed motion, local geometry, environment and cavity history |
| Permanent set or loss of force | Over-compression, heat, long dwell, unsuitable compound, creep or inadequate recovery time | Measure installed compression, temperature history and retained force after ageing |
| Abrasion or chunking | Overload, slip, particles, misalignment, rough counterface, heat buildup or wrong compound | Check wear pattern, contact stress, speed, temperature, debris and surface condition |
| Slippage or loss of grip | Contamination, glazing, inadequate contact pressure, compound change, polish or thermal damage | Compare friction under real surface, load, speed and contamination conditions |
| Swelling or softening | Incompatible oil, fuel, coolant, cleaner, additive or elevated exposure temperature | Identify exact media and compare mass, volume and properties before and after exposure |
| Hardening or embrittlement | Heat, oxidation, ozone, UV, chemical extraction or unsuitable ageing resistance | Review environment, surface pattern and property change across the section |
| Bond separation | Insert contamination, poor preparation, adhesive control, edge stress, overload or fluid ingress | Identify whether failure is adhesive, cohesive, substrate-related or caused by rubber tearing |
| Leakage | Incorrect compression, damaged edge, extrusion, finish, gap, misalignment, debris or pressure direction | Inspect sealing track, hardware, installation and pressure history before changing material |
| Bushing walk or mount movement | Retention error, insufficient interference, side load, lubricant, overtravel or bond failure | Check press fit, housing, load vector, displacement and assembly process |
| Bellows or boot pull-off | Clamp mismatch, pressure difference, stroke, twist, contamination or incorrect installed length | Measure retention interface and full operating envelope |
Preserve the Operating Record
Capture load, speed, starts, temperature, media, cleaning, lubrication, maintenance and the event immediately before failure.
Compare Known-Good Parts
Part mass, hardness, dimensions, cavity marks, bond appearance and property changes can help separate service effects from manufacturing variation.
Evidence by Level
Which Material, Finished-Part and Equipment Tests Should Be Considered?
Validation should follow the failure risk. Material tests control compound properties, finished-part checks control manufactured geometry and workmanship, and equipment tests confirm the function of the assembled system.
| Evidence Level | Possible Checks | What It Can Establish |
|---|---|---|
| Incoming material or compound | Identity, cure behavior, hardness, density and agreed physical-property checks | Batch consistency against an approved compound specification |
| Material compatibility | Immersion, heat ageing, ozone, weathering, compression set or low-temperature tests | Property change under stated laboratory conditions |
| Finished-part dimensions | Critical dimensions, insert position, runout, concentricity, crown, profile and free length | Conformance to agreed drawing and measurement method |
| Finished-part workmanship | Flash, voids, tears, cuts, contamination, surface, bond edge and reinforcement location | Location-specific manufacturing acceptance |
| Mechanical response | Load-deflection, spring rate, torque-angle, pull-through, rebound or compression force | Part response under defined load, rate and conditioning |
| Dynamic behavior | Fatigue, rolling endurance, wear, heat buildup, transmissibility, dynamic stiffness or damping | Performance over representative motion, frequency, speed and cycles |
| Bond or reinforcement | Peel, pull, push-out, torque, sectioning or destructive part test | Process consistency and failure mode at the actual interface |
| Sealing or pressure function | Leakage, pressure, vacuum, pulsation, burst or proof check where applicable | Performance of the part or assembly under stated boundary conditions |
| Equipment-level validation | Installed fit, noise, vibration, motion, traction, leakage, output quality and target life | Whether the complete machine meets its functional criteria |
Condition Before Testing
Temperature, rest time, preload, fluid exposure and ageing can alter results. Record the conditioning sequence and test timing.
Match the Real Boundary
Use representative hardware, finish, alignment, lubrication, load, speed, frequency, motion and environment wherever function depends on them.
Test methods, sample size, acceptance limits, frequency and required reports are available upon request or confirmed from the project specification.
Repeatable Production
What Should a Machinery Rubber Component Quality Plan Include?
Quality control should connect the approved compound, tooling, inserts, process, critical dimensions, functional surfaces and test evidence to each production lot. Controls should reflect the actual failure risks of the part.
Approved Compound
Control formulation or purchased grade, cure system, supplier, lot, storage and authorized substitution.
Tool and Cavity
Identify tool, cavity, die, revision, repair, vents, parting surfaces and maintenance history.
Inserts and Reinforcement
Trace metal, plastic, fabric, cord, coating, adhesive and surface-treatment route as applicable.
Process Window
Control molding, extrusion, cure, bonding, lay-up, roller finishing, joining, post-cure and trimming.
Critical Dimensions
Use agreed datums, fixtures, conditioning, gauge force, sampling and installed checks.
Functional Surfaces
Define zone-specific limits for flash, tears, voids, dents, contamination, texture and handling damage.
Functional Response
Apply agreed force, runout, bond, leakage, stiffness, wear or movement checks where dimensions are insufficient.
Lot Traceability
Connect finished parts to material, insert, production date, tool/cavity, process, inspection and shipment.
Change Notification
Define approval for formulation, source, cure, tooling, cavity, process, site, subcontractor or inspection changes.
Packaging and Storage
Prevent deformation, contamination, mixed lots, ozone exposure, stacking damage and uncontrolled compression.
Nonconformance Control
Contain suspect lots and preserve batch, cavity, process and service evidence before disposition.
Record Retention
Keep the agreed inspection, material, process, test and shipment records for the project-defined period.
| Production Stage | Typical Controls | Project-Specific Additions |
|---|---|---|
| Incoming | Material identity, insert dimensions, reinforcement, adhesive status and storage | Certificates, special cleanliness, coating or source approval |
| First-off | Drawing characteristics, cavity, appearance, insert location and basic function | Fit, force, runout, bond, leakage or assembly verification |
| In-process | Process settings, cure status, cavity separation, visual control and sampling | Critical parameter records or automated monitoring |
| Final inspection | Dimensions, workmanship, marking, quantity, packaging and lot identity | Functional testing, report format or retained samples |
| Change control | Review and authorization before changing approved inputs | Revalidation level based on risk and customer requirements |
Standards and Evidence
Which Standards and Documents May Apply to Machinery Rubber Parts?
The applicable reference depends on the part and equipment contract. A dimensional, material or laboratory test standard does not automatically certify a finished component or complete machine. Confirm the edition, scope, acceptance limits and required evidence before quotation.
| Reference | General Relevance | Important Scope Boundary |
|---|---|---|
| ISO 3302-1 | Dimensional tolerance classes and related methods for molded, extruded and calendared solid rubber products | Does not cover every product type; drawing-critical characteristics and measurement methods still require agreement |
| ISO 3302-2 | Geometrical tolerances for relevant rubber products where contractually selected | Applicability and current edition must be confirmed for the actual geometry |
| ISO 3601-1 | Inside diameters, cross-sections, tolerances and designation codes for fluid-power O-rings | Not a general tolerance standard for every molded ring or custom seal |
| ISO 10846 series | Laboratory measurement of vibro-acoustic transfer properties of resilient elements | Select the appropriate part and test boundary; it does not provide a universal mount rating |
| ISO 6072 | Controlled comparison of hydraulic-fluid effects on standard elastomeric materials | Does not specify actual service compounds or prove finished-part life in a machine |
| SAE J200 or ASTM D2000 | Classification of vulcanized rubber material properties where specified | Material callout does not define finished geometry, dynamic response or assembly performance |
| ASTM D1414 | Selected test methods for rubber O-rings | Test method and acceptance criteria must be tied to the project specification |
| Customer drawing and equipment specification | Defines material, dimensions, workmanship, tests, documents and change controls | Project requirements can be more restrictive than general references |
| Machine safety or industry-specific requirements | May govern guards, food contact, electrical, fire, pressure or functional safety at equipment level | Confirm exact component obligations; do not infer compliance from a rubber material name |
Material Documents
Compound specification, batch certificate, physical properties, ageing or compatibility evidence and change status as required.
Part Documents
Approved drawing, ballooned characteristics, inspection report, workmanship criteria, bond evidence and sample approval.
Production Documents
Control plan, process route, tool/cavity identity, traceability, nonconformance, packaging and change agreement.
Technical Sourcing
How Should a Machinery Rubber Component Supplier and RFQ Be Evaluated?
A useful RFQ allows engineering and sourcing teams to compare the same technical boundary. It should show whether the supplier understands the mechanical function, interfaces, compound control, manufacturing route, validation and production-change requirements.
Application Review
Does the review cover function, failure consequence, load, motion, speed, frequency, media, heat and environment?
Interface Review
Can the supplier discuss compression, grooves, shafts, housings, fits, fasteners, contact surfaces and installation?
Compound Control
Can the exact compound, cure system, batch, relevant evidence and authorized change process be identified?
Composite Capability
Are insert preparation, bonding, reinforcement, layer placement and exposed edges controlled where applicable?
Manufacturing Fit
Are molding, extrusion, conversion, roller finishing, trimming and assembly matched to geometry and quantity?
Measurement Discipline
Are soft, bonded, tubular and rotating parts measured with suitable datums, fixtures and contact force?
Functional Validation
Can material, finished-part and equipment-level evidence be separated and tied to stated test conditions?
Traceability and Change
Can material lots, inserts, tooling, cavities, production records and authorized changes be traced?
Corrective Action
Can suspect lots be contained while part, machine, service, process, tooling and installation evidence are analyzed?
| RFQ Information | What to Provide |
|---|---|
| Part definition | 2D drawing, 3D model or representative sample; revision; critical characteristics; mating parts and installed orientation |
| Equipment and function | Machine type, component location, sealing, isolation, impact, traction, wear or protection duty and failure consequence |
| Load and motion | Static and peak load, direction, preload, displacement, stroke, speed, frequency, torque, slip and target cycles |
| Media and environment | Exact fluids, cleaners, contamination, dust, water, weather, ozone, UV and electrical requirements |
| Temperature | Minimum, continuous, peak, cycle, generated heat and exposure duration at the part |
| Interfaces | Housing, shaft, groove, panel, core, fastener, finish, alignment, clearance, compression and assembly method |
| Construction | Material requirement, hardness if specified, insert, bond, reinforcement, finish, color and marking |
| Standards and validation | Required standard and edition, inspection level, material, functional, endurance and equipment approval requirements |
| Commercial input | Prototype quantity, annual or batch quantity, packaging, delivery destination and required schedule |
Drawing-Based Development
Provide controlled dimensions, tolerances, material, interfaces and critical characteristics. Unknown information remains to be confirmed rather than inferred.
Sample-Based Development
A physical sample can support geometry review, but wear, compression, ageing, original tolerances and compound history may be unknown. Functional requirements are still needed.
Practical Questions
Frequently Asked Questions About Machinery Rubber Components
These answers provide a screening framework. Final material, geometry, process and validation requirements remain project-specific.
Which rubber is best for machinery components?
There is no universal best rubber. Selection depends on function, load, motion, media, temperature, wear, weather, electrical or cleanliness requirements and the intended manufacturing process. The exact compound and finished part should be validated.
Can one hardness value define a rubber mount?
No. Hardness is a material test, while mount stiffness also depends on geometry, shape factor, load direction, preload, frequency, amplitude and temperature. Load-deflection and dynamic data are more relevant when isolation performance controls the design.
How is a vibration isolator selected?
Define supported mass, load at each position, center of gravity, excitation frequencies, desired isolation, available travel, load direction, shock, restraint and environment. Representative dynamic validation may then be planned.
What causes rubber rollers to overheat?
Repeated deformation, excessive load, slip, speed, misalignment, small diameter, high hysteresis and inadequate cooling can generate heat. Temperature should be measured under representative load and speed.
Why does a rubber drive roller lose grip?
Possible causes include oil or dust contamination, glazing, insufficient nip force, surface polish, wear, compound change, heat damage or a counterface change. Friction should be evaluated under the real contact conditions.
Can EPDM be used for machinery seals?
EPDM may suit selected water, steam, glycol, weather and outdoor duties, but it is generally not selected for petroleum oil or hydrocarbon fuel contact. Confirm the exact media and compound.
When is NBR considered for machinery parts?
NBR is often screened for oil-contact seals, gaskets, diaphragms, rollers and fluid-power components. Fuel composition, weather, ozone, temperature, low-temperature flexibility and dynamic heat still require grade-specific review.
When is polyurethane considered instead of rubber?
Polyurethane may be considered for high-wear wheels, rollers, scrapers, wipers and load-bearing parts. Hydrolysis, heat buildup, compression behavior, chemical exposure and the specific PU chemistry must be checked.
What causes a bellows to crack early?
Excess extension or compression, sharp fold geometry, twist, an incorrect installed length, ozone, heat, parting-line damage, abrasion or contamination can initiate cracking. The full motion envelope and flex zones should be reviewed.
How are rubber-to-metal bonded parts inspected?
Controls may include insert inspection, process records, bond-edge inspection, dimensions and project-defined peel, pull, push-out, torque, sectioning or destructive part tests. The method should match the actual load path.
Can a custom machinery part be developed from a sample?
Yes, a sample can support geometry review. However, wear, set, ageing, original tolerances and compound history may be unknown, so application, interface and functional requirements are still needed.
Which tolerances apply to molded machinery rubber parts?
ISO 3302-1 or a project standard may be selected for relevant solid rubber products. Precision O-rings, composite parts, rotating components and critical functional dimensions require the correct specific reference and agreed measurement method.
Does SAE J200 or ASTM D2000 specify finished-part performance?
These systems classify vulcanized rubber material properties when specified. They do not by themselves define part dimensions, isolation response, traction, bond durability, leakage or equipment life.
How should dynamic rubber parts be tested?
Use representative preload, amplitude, frequency, speed, temperature, media, counterface and alignment. Define cycles, interruptions, measurements and failure criteria before testing.
Can food-contact or clean-machinery requirements be supplied?
Material, manufacturing and documentation options can be reviewed when the exact contact medium, temperature, cleaning process and required regulation or standard are provided. Compliance is confirmed for the selected project rather than assumed.
What causes batch-to-batch differences in rubber parts?
Compound variation, raw-material source, cure, cavity, insert, bonding, finishing, measurement, storage and ageing can all contribute. Approved specifications, traceability and change control reduce uncontrolled variation.
What are the MOQ and lead time for custom machinery parts?
MOQ and lead time depend on geometry, material, tooling, inserts, validation, quantity and production route. They are available upon request after the technical information has been reviewed.
What information is needed for an accurate quotation?
Provide a drawing, model or sample; machine function; load and motion; exact media; temperature; interfaces; material or hardness if specified; validation requirements; quantity and required schedule.
Custom Machinery Elastomer Components
Have a seal, mount, bushing, roller, bellows, diaphragm or bonded component to develop?
Send the available drawing, sample, equipment, load, motion, speed, media, temperature, interface, validation and quantity information for a project-specific feasibility and quotation review.
