Acrylate Rubber (ACM): Properties, Applications & Selection Guide
Acrylate rubber (ACM) is selected when a seal, gasket, hose or molded component must retain performance in hot air and petroleum- or synthetic-based lubricants. It is widely associated with automotive engine, transmission and air-management systems. ACM is not one fixed formulation: monomer design, cure-site chemistry, compound ingredients, temperature, fluid additives, water exposure and low-temperature requirements must be reviewed together.
ACM Fundamentals
What Is ACM Rubber?
ACM is a family of synthetic elastomers based mainly on acrylic ester monomers. Its saturated carbon-chain backbone supports heat, oxidation and ozone resistance, while the polar ester groups provide resistance to many petroleum and synthetic lubricants. Cure-site monomers allow the material to be crosslinked into useful sealing compounds.
“ACM” is not a complete material specification. Monomer composition, cure-site type, molecular structure, fillers, plasticizer, stabilizers, cure package and processing history all influence the finished compound. Two parts labeled “ACM 70 Shore A” can therefore differ in lubricant swell, low-temperature flexibility, compression set, water resistance and heat-aging retention.
This is especially important in automotive sealing. ACM should be selected against the exact engine oil, transmission fluid, gear lubricant or air-management environment—not a generic statement such as “oil resistant.” Base-oil chemistry, additive package, water content, temperature, exposure time and motion can materially change the result.
ACM is usually a strong candidate when
- The part contacts hot engine oil, transmission fluid or a compatible synthetic lubricant.
- Long-term hot-air aging and sealing-force retention are important.
- The application is an automotive shaft seal, gasket, O-ring, hose or molded component.
- A validated ACM grade meets the actual fluid, temperature and low-temperature duty.
ACM needs another look when
- The minimum operating temperature exceeds the selected grade's recovery or sealing capability.
- Hot water, steam, brake fluid or prolonged water exposure is central to the duty.
- The lubricant contains an unverified additive package or the medium is a fuel or aggressive solvent.
- The application needs the broader heat or chemical range of FKM, or the cold flexibility of another family.
Performance Profile
What Are the Key Properties of ACM Rubber?
ACM is best understood as a heat- and lubricant-resistant elastomer family. Its saturated backbone generally supports hot-air, oxidation and ozone resistance, while the acrylic ester chemistry supports many automotive oils. Low-temperature flexibility, water resistance, mechanical strength and additive compatibility remain grade- and compound-dependent.
Hot Oil & Lubricants
ACM is widely selected for petroleum- and synthetic-based lubricants at elevated temperature. Base oil, additives, temperature and grade determine actual swelling and property retention.
Heat & Oxidation
The saturated backbone gives ACM useful long-term resistance to hot air and oxidative aging. Continuous limits still depend on grade, cure system, medium and required retention.
Ozone & Weathering
ACM generally provides useful ozone and weathering resistance because of its saturated backbone. Outdoor durability still depends on compound protection, strain and exposure.
Low-Temperature Flexibility
Low-temperature recovery is a common ACM selection limit. Special low-temperature grades exist, but sealing function must be validated at the actual minimum temperature.
Compression Set
Selected ACM compounds can retain sealing force under prolonged heat, but cure state, squeeze, dwell, lubricant exposure and part geometry determine the result.
Water & Steam
Hot water, humidity and steam can be limiting for some ACM compounds. Hydrolysis-resistant grades and exact wet-heat validation may be required.
Polymer & Compound Design
How Do ACM Monomers, Cure Sites and Compounds Change Performance?
ACM grades use different acrylic ester combinations and cure-site chemistries to balance lubricant resistance, low-temperature flexibility, water resistance, processing and vulcanization. A more polar formulation may improve resistance to selected lubricants but can shift cold flexibility or wet-heat behavior. There is no single “standard ACM” performance curve.
Commercial portfolios include general-purpose, low-temperature, improved-processing, high-heat, improved-hydrolysis and fast-curing grades. The finished compound then adds fillers, plasticizer, stabilizers and a cure package. For a critical part, specify measurable aged properties and media limits unless an approved polymer or compound is mandatory.
| ACM Variable | General Direction | Why It Matters |
|---|---|---|
| Acrylic ester composition | Changes polarity, lubricant swell, low-temperature flexibility and water sensitivity | The fluid and minimum functional temperature must be balanced, not evaluated separately. |
| Cure-site monomer | Controls which crosslinking chemistry and processing window are feasible | Influences cure rate, post-cure, compression set, heat aging and manufacturing control. |
| Low-temperature grade | Formulated to improve flexibility and recovery in colder service | Useful only when its lubricant and heat-aging performance also meets the application. |
| Hydrolysis-resistant grade | Developed to improve retention under hot-water, humidity or wet-heat exposure | Still requires the exact liquid, temperature, duration and acceptance criteria. |
| Mooney viscosity / molecular structure | Changes mixing, mold flow, extrusion, green strength and filler dispersion | Must suit the process route, part geometry and required surface quality. |
| Fillers / plasticizer | Adjust hardness, modulus, strength, cold behavior, swell and processing | Explains why equal-hardness ACM compounds can perform differently. |
| Stabilizer package | Supports retention during hot-air or hot-oil aging | Must be evaluated with the real temperature, lubricant and service duration. |
| Cure package | Changes compression set, heat aging, bonding and production behavior | Must match the cure-site chemistry and finished-part requirements. |
Engineering note: monomer and cure-site descriptions help explain ACM behavior, but the cured compound and finished part—not the raw polymer alone—must meet the project specification.
Vulcanization
How Does the ACM Cure System Affect Finished-Part Performance?
ACM vulcanization depends on the cure-site chemistry built into the polymer and the matching crosslinking package. Commercial systems may use amine-, soap/sulfur- or other cure-site-specific chemistries. These routes are not interchangeable, and a cure system should never be assigned from the material abbreviation alone.
| Selection Factor | Cure-Site-Specific System | Finished-Part Requirement |
|---|---|---|
| Polymer compatibility | The cure package must match the grade's cure-site monomer and supplier guidance. | Do not substitute cure routes without revalidating compound and process performance. |
| Heat aging | Crosslink structure and cure state affect retained hardness, tensile and elongation. | Specify aging temperature, time and permitted property change. |
| Compression set | Cure density, post-cure and formulation influence long-term recovery. | Specify compression, time, temperature, medium and recovery conditions. |
| Mechanical balance | Fillers, plasticizer and crosslink structure tune strength, elongation and modulus. | Validate the balance needed for installation, pressure, motion and fatigue. |
| Rubber-to-metal bonding | Adhesive and surface treatment must be compatible with the ACM compound and cure cycle. | Define substrate, bond area and aged bond-performance requirement. |
| Production control | Scorch safety, cure rate, mold release and post-cure depend on the selected system. | Control mixing, temperature, time, cavity behavior and traceability. |
Durometer Selection
What ACM Hardness Should You Choose?
ACM compounds can be formulated across different hardness levels, but there is no single family-wide durometer recommendation. The correct target depends on seal geometry, squeeze, pressure, extrusion gap, motion, assembly force, temperature, lubricant exposure and required sealing-force retention.
Hardness affects conformity, compression force, deformation, extrusion resistance and handling. It does not directly define lubricant resistance, low-temperature recovery, hydrolysis resistance, compression set or service life. Equal-hardness ACM compounds designed for different cure systems or temperature targets can behave differently.
Lower Hardness
Can improve conformity to mating surfaces and reduce closure force. Pressure and gland geometry must still prevent over-deformation or extrusion.
Medium Hardness
Often used for general molded seals and components because it can balance flexibility, handling, compression and load support.
Higher Hardness
Can improve resistance to deformation or extrusion under load, but usually requires greater assembly or compression force.
Specify the hardness method, nominal value and tolerance on the approved material specification. ISO 48-4 or ASTM D2240 are commonly used for Shore durometer testing of vulcanized rubber.
Thermal Limits
What Temperature Range Can ACM Rubber Handle?
There is no single ACM temperature range that applies to every compound. Commercial suppliers publish markedly different limits by grade, including special low-temperature formulations and high-heat materials. Some product families describe compoundable ranges extending from approximately -40°C to 200°C, but those figures are portfolio capabilities—not a guarantee for every ACM compound or finished part.
Usable limits depend on acrylic ester composition, plasticizer, cure-site and cure system, exposure time, lubricant, water content, pressure, motion and the required function. Storage survival at a stated minimum temperature does not prove that a seal will recover, follow a shaft or maintain leakage control at that temperature.
Low Temperature
Define storage, start-up and operating requirements separately. Special low-temperature ACM grades can improve recovery, but lubricant swell and heat-aging trade-offs still require review.
Continuous Heat
Long exposure controls hardening, compression set and retained strength. Use compound-specific air and fluid aging data at the real continuous temperature.
Peak Temperature
State peak value, duration and frequency. Short peaks should not be converted into a continuous-service rating without compound data and validation.
Hot Fluid Exposure
Lubricant additives, water contamination and synthetic base oils can change swelling or property loss at elevated temperature. Test the actual medium at temperature.
Media Compatibility
What Oils, Lubricants and Chemicals Is ACM Compatible With?
ACM is widely considered for hot engine oils, transmission fluids and selected petroleum- or synthetic-based lubricants. “Oil resistant” does not mean universal compatibility: base-oil type, additive package, water content, temperature, pressure, motion and exposure time can all change swelling and retained properties.
| Medium / Environment | General ACM Direction | Engineering Note |
|---|---|---|
| Engine oils | Generally strong | Core ACM application; verify base oil, additive package, temperature and drain interval. |
| Automatic transmission fluids | Often suitable | Common ACM service, but each ATF formulation and temperature profile requires validation. |
| Gear oils / axle lubricants | Often suitable | Extreme-pressure and sulfur-containing additives can affect swelling or aging. |
| Synthetic lubricants | Application-specific | Compatibility depends on the synthetic base stock and additive system, not the word “synthetic.” |
| Lubricating greases | Compound-specific | Review base oil, thickener, additives and operating temperature together. |
| Gasoline / diesel / biofuels | Requires exact-fluid review | ACM is not a universal fuel elastomer; oxygenates, aromatics and bio-components can change swell. |
| Water / coolant / humidity | Grade-specific | Hydrolysis-resistant grades may improve wet-heat retention; concentration and temperature still matter. |
| Hot water / steam | Usually not first choice | Prolonged wet heat can be limiting; EPDM or another validated family may be more suitable. |
| Glycol brake fluids | Usually unsuitable | EPDM is commonly evaluated for glycol-based brake-fluid service; confirm the exact fluid specification. |
| Ketones / strong polar solvents | Often unsuitable | Swelling or property loss may be severe; review the exact solvent and alternative elastomers. |
| Ozone / outdoor weather | Generally useful | The saturated backbone supports ozone resistance, but compound, strain and exposure still require review. |
Material Selection
ACM vs. AEM, HNBR and FKM: Which Should You Use?
ACM is often selected for hot-oil sealing where its cost, heat resistance and lubricant compatibility fit the duty. AEM can offer improved low-temperature and flex-fatigue behavior in some automotive applications; HNBR combines oil resistance with strong mechanical performance; FKM is often evaluated for higher temperature or broader fuel and chemical resistance.
| Selection Factor | ACM | AEM | HNBR | FKM |
|---|---|---|---|---|
| Hot engine / transmission oil | Strong starting point with validated grade | Strong in selected formulations | Strong; fluid-specific | Often very strong; chemistry-specific |
| High-temperature aging | Strong within compound limit | Strong | Strong | Typically highest range of these families |
| Low-temperature flexibility | Common selection constraint; LT grades available | Often better than conventional ACM | Grade-specific | Depends strongly on FKM type |
| Mechanical / abrasion performance | Moderate to useful; compound-specific | Useful flex and tear balance | Often strong | Compound-specific |
| Water / wet-heat exposure | Grade-specific; may be limiting | Compound-specific | Compound-specific | Compound-specific |
| Fuel / solvent breadth | Limited and exact-fluid dependent | Limited and compound-specific | Selected fuels; grade-specific | Often broader, but not universal |
| Cost position | Often competitive for automotive hot-oil duty | Often above ACM | Typically above ACM | Typically higher |
This comparison is directional. Final material selection requires the exact compound, fluid, temperature, pressure, motion, expected life and applicable specification.
Industrial Applications
Where Is ACM Rubber Used?
ACM is widely used in automotive and industrial components exposed to hot air, engine oil, transmission fluid and compatible lubricants. Its best fit is usually a carefully defined hot-oil duty; geometry alone should never determine the material.

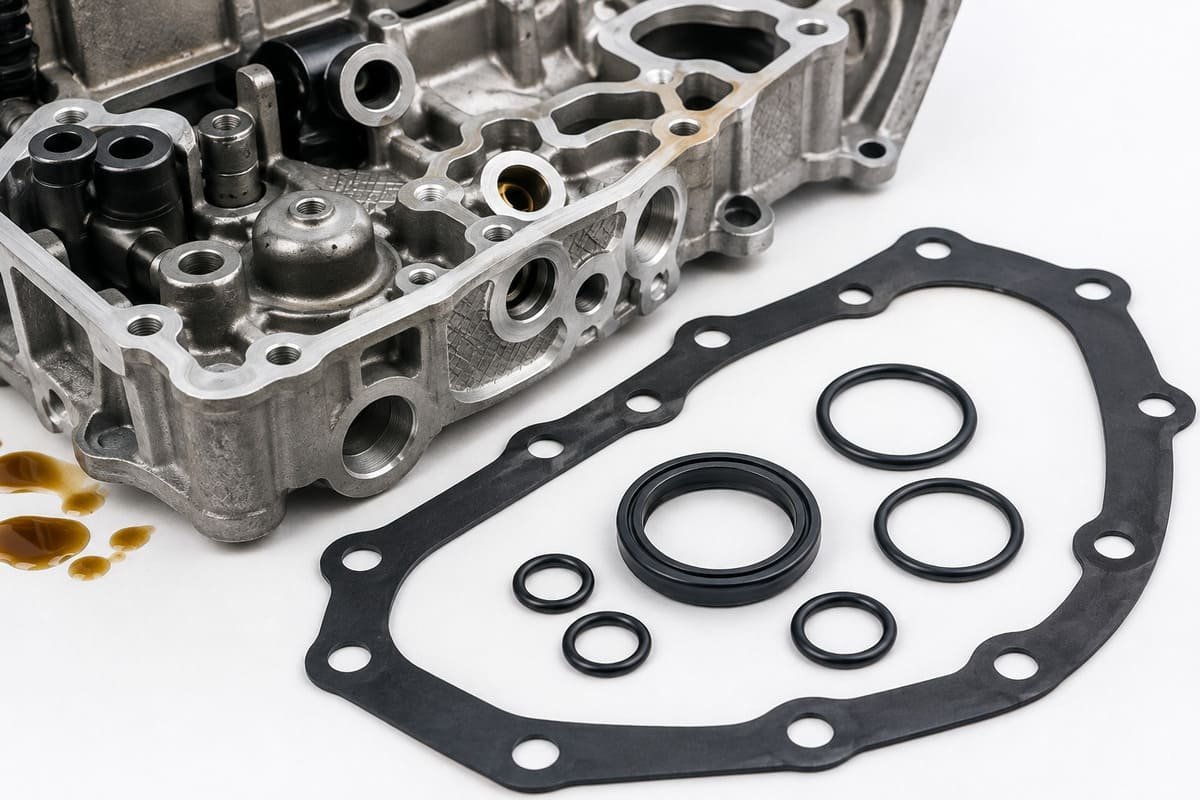

Engine Seals & Gaskets
Valve-cover gaskets, oil-pan gaskets, O-rings and custom molded seals exposed to hot engine oil and hot air.

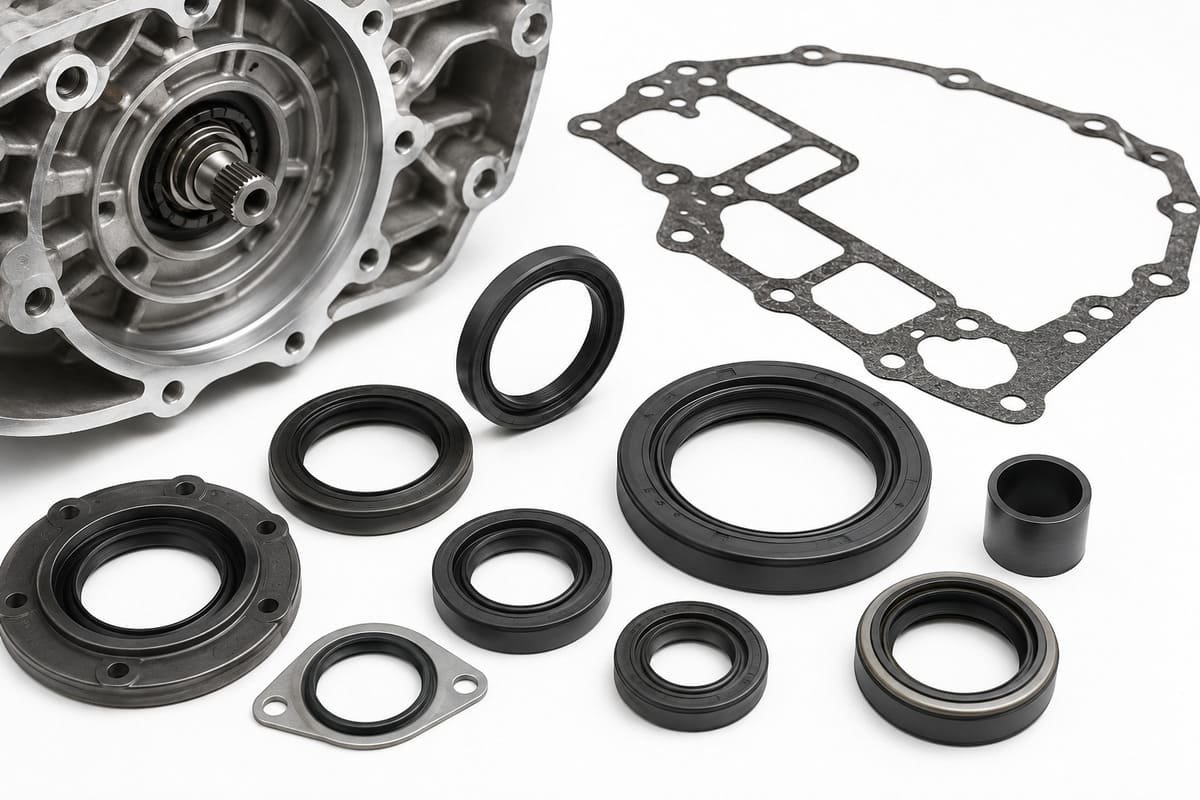

Transmission & Driveline Seals
Shaft seals, bonded seals and gaskets used with validated transmission fluids, gear oils or axle lubricants.

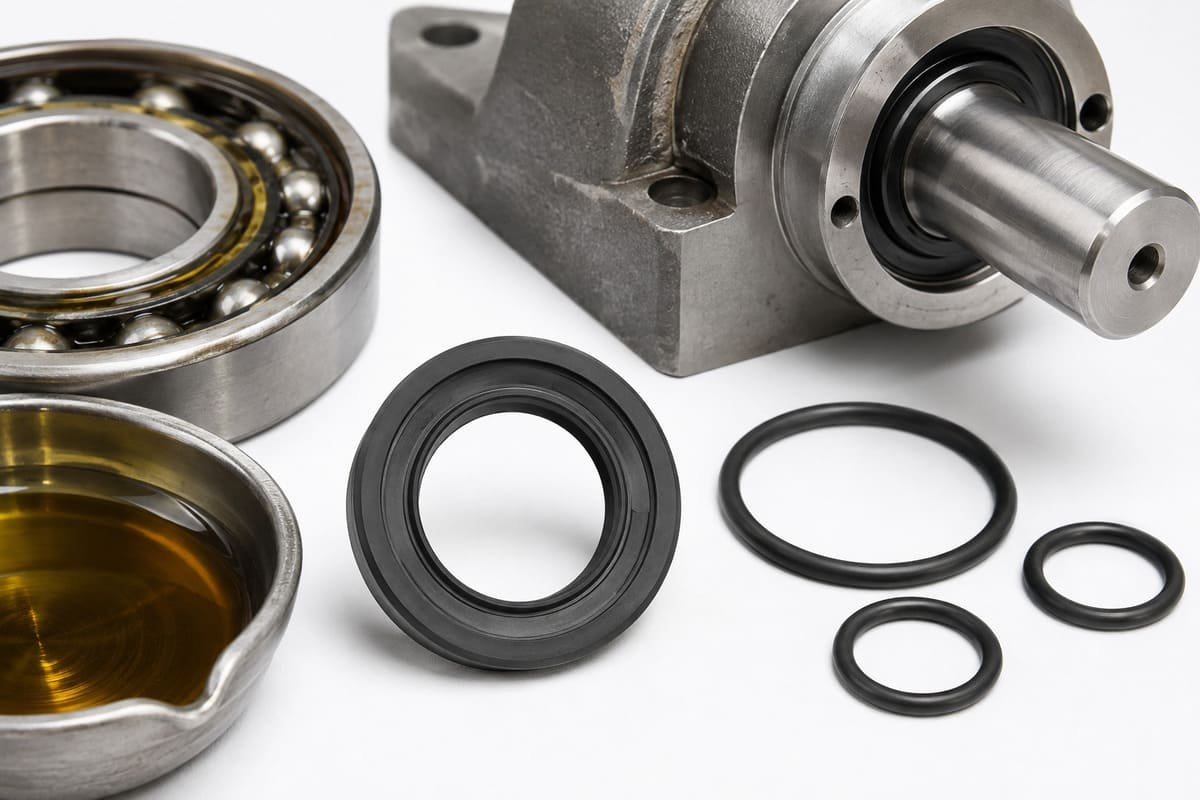

Rotary Shaft Seals
Sealing lips and elastomer elements where lubricant, shaft speed, counterface, temperature and low-temperature start-up are defined.

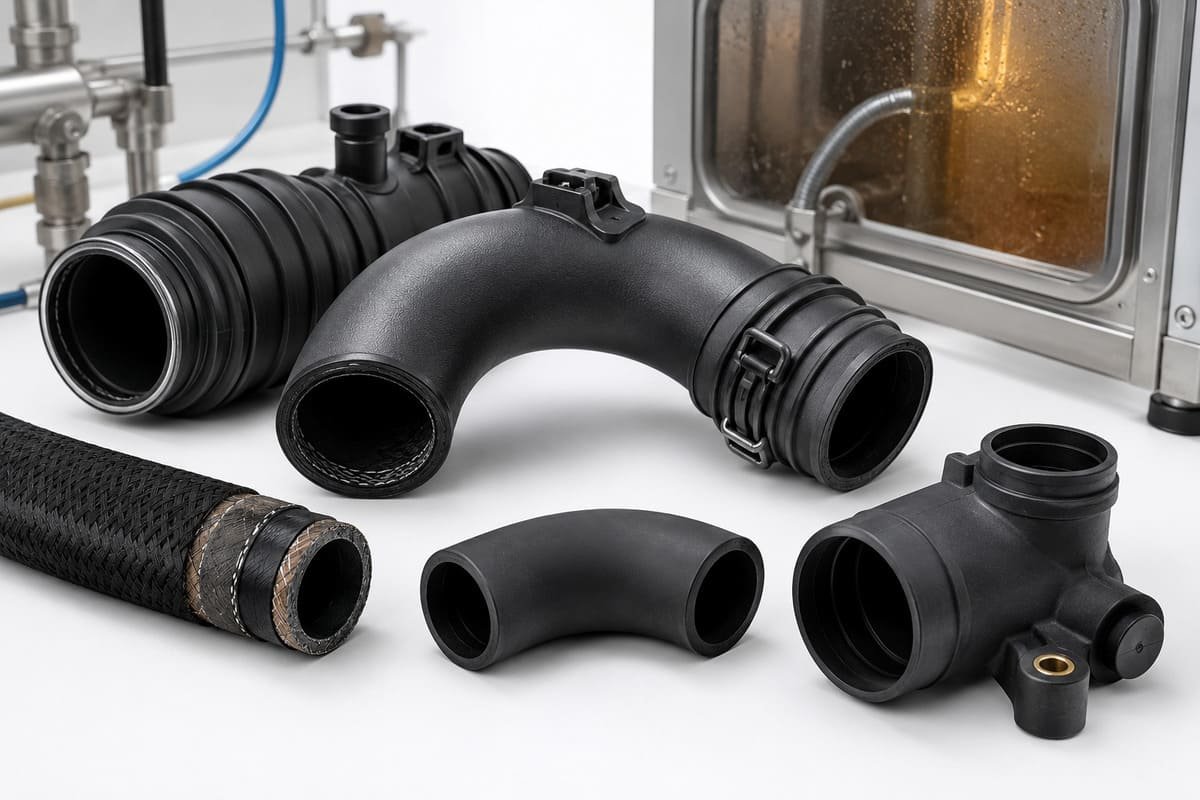

Air-Management Hoses
Selected turbocharger and crankcase-ventilation hose layers or molded connectors exposed to hot air and oil mist.
Rubber-to-Metal Components
Bonded gaskets, carriers and molded seals requiring a compatible ACM compound, adhesive, substrate preparation and cure process.
Industrial Hot-Oil Parts
Custom gaskets, O-rings and molded components for compatible lubricants when temperature and service conditions suit ACM.
Compression Set & Failure Analysis

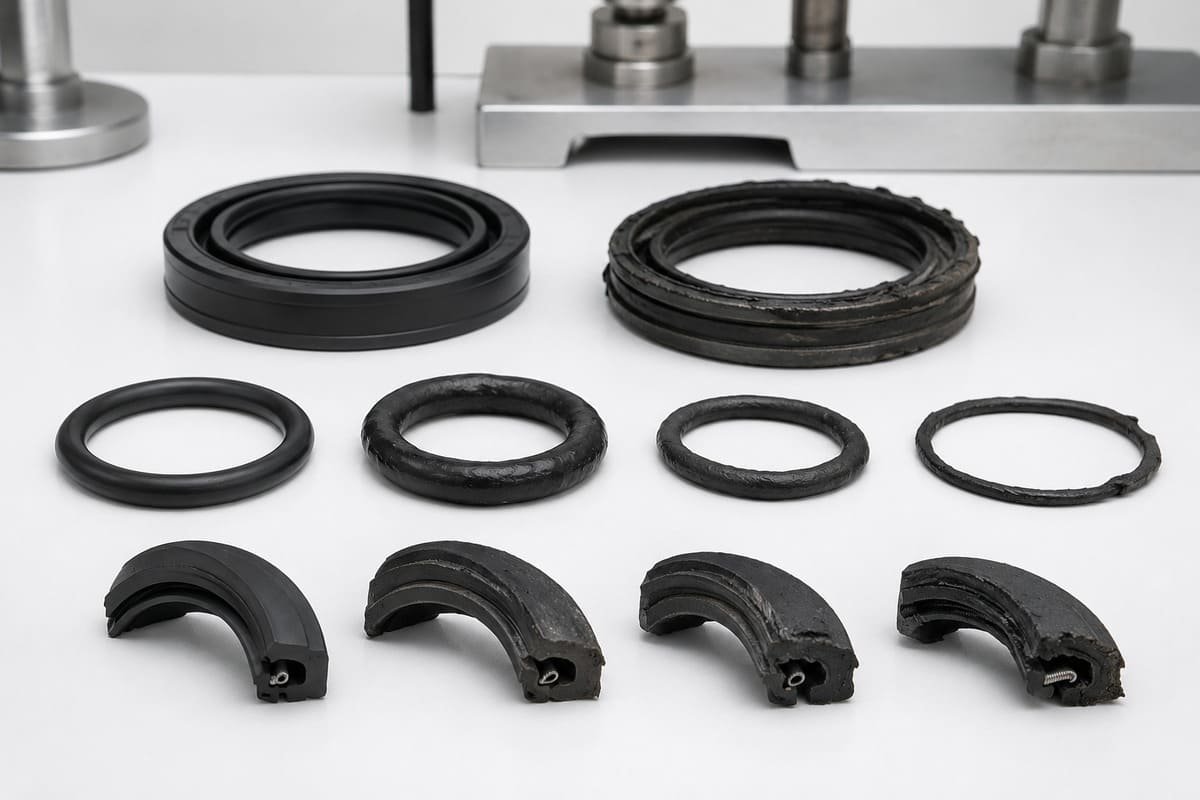

Why Do ACM Seals Fail, Swell, Harden or Lose Sealing Force?
ACM failures are often caused by interaction between lubricant additives, heat, water contamination, low-temperature stiffness, cure state, compression, friction and seal geometry. Swelling, hardening, wet-heat degradation, permanent flattening and lip wear point toward different mechanisms and should be diagnosed separately.
Compression set and compressive stress relaxation are especially important in hot static seals because a part can lose contact force before a visual crack appears. The result is influenced by compound, cure state, post-cure, time, temperature, squeeze, lubricant and thermal cycling.
| Observed Symptom | Possible Causes | What to Review |
|---|---|---|
| Volume swell / softening | Incompatible lubricant, fuel, solvent or aggressive additive package | Exact fluid, grade, temperature, duration and ISO 1817 / ASTM D471 results. |
| Shrinkage / hardening | Plasticizer extraction, excessive heat, oxidation or incompatible fluid | Mass and volume change, hardness, retained tensile and service-temperature history. |
| Permanent flattening / leakage | Compression set, stress relaxation, excessive heat, under-cure or over-compression | Cure state, post-cure, squeeze, gland fill, dwell and ISO 815-1 conditions. |
| Wet-heat cracking / softening | Hydrolysis, hot-water contamination, coolant exposure or unsuitable grade | Water content, temperature, duration, pH, grade and aged mechanical properties. |
| Extruded or damaged edge | Excessive clearance, pressure, swelling, thermal expansion or inadequate support | Gap, pressure cycle, hardness, gland fill, volume change and back-up design. |
| Worn or polished sealing lip | Friction, poor lubrication, rough shaft, contamination, runout or excessive speed | Surface finish, lubricant supply, shaft motion, temperature rise and wear debris. |
| Bond failure | Surface preparation, incompatible adhesive, contamination or incorrect cure | Substrate, pretreatment, adhesive system, ACM compound and aged bond test. |
Manufacturing

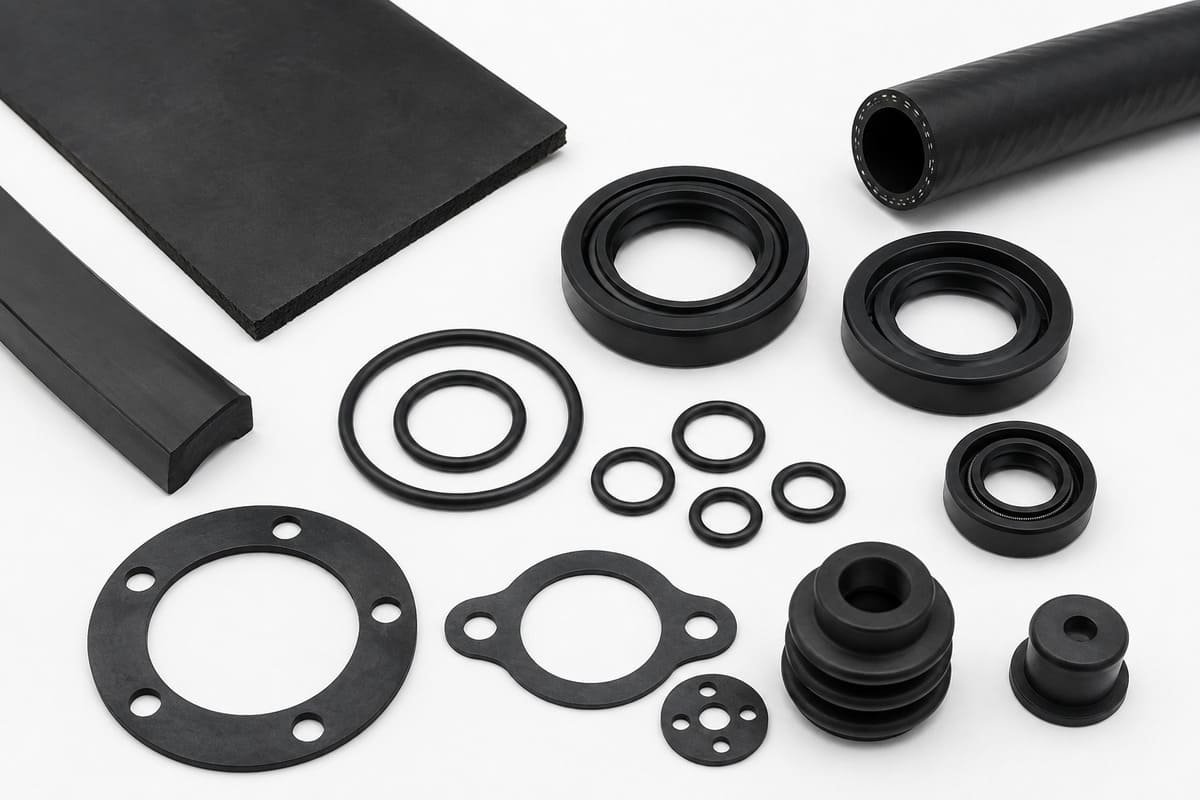

How Are Custom ACM Rubber Parts Manufactured?
Custom ACM parts can be compression molded, transfer molded, injection molded, extruded, calendered or bonded to metal. The route depends on compound viscosity, cure-site chemistry, cure package, geometry, tolerance, surface requirements, quantity and validation plan. Some ACM systems require controlled post-curing to reach their intended properties.
- Application reviewConfirm lubricant, additives, water exposure, temperature, pressure, motion, environment and expected life.
- Compound definitionSelect grade direction, hardness, cure-site-compatible system and required heat, fluid or low-temperature properties.
- Tooling / process reviewChoose compression, transfer, injection, extrusion or bonding based on rheology, geometry and volume.
- Sample validationCheck dimensions, appearance, fit and the agreed air-aging, fluid-aging or functional tests.
- Production controlControl compound batch, cure, post-cure, cavities, dimensions, appearance and traceability.

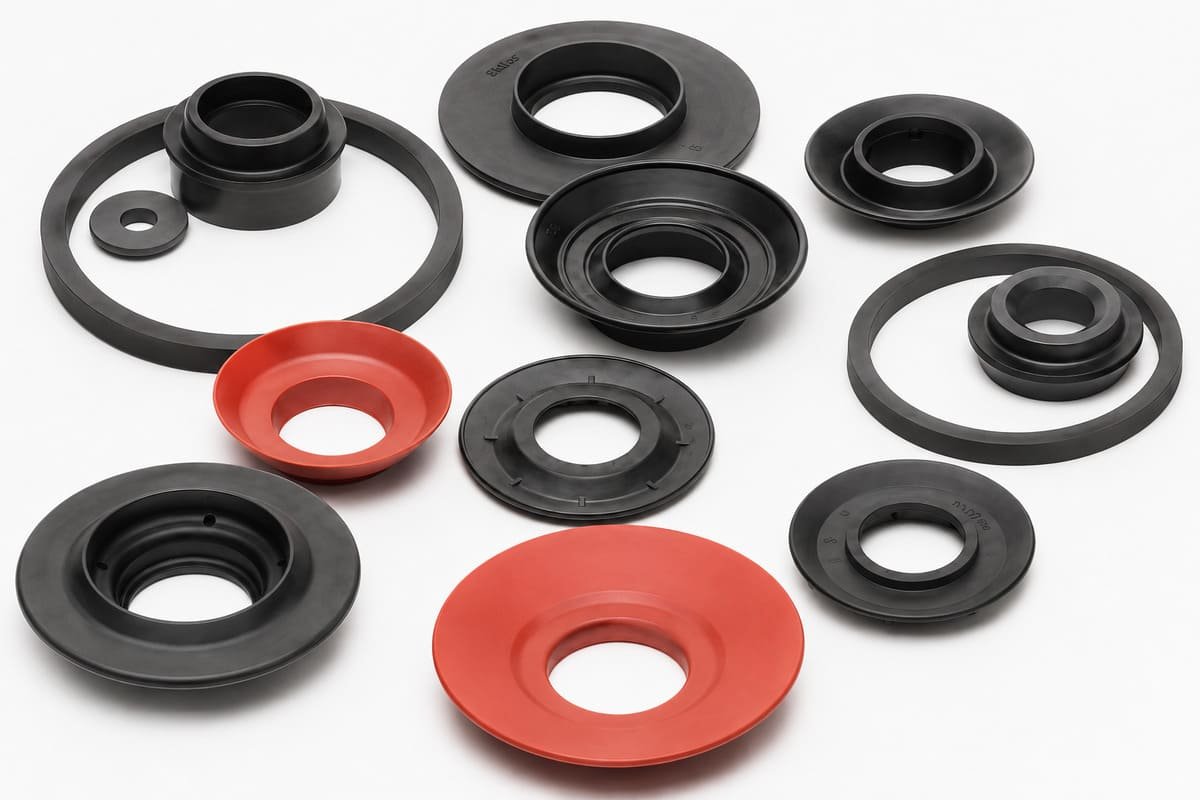

Molded ACM
Suitable for shaft-seal elements, O-rings, gaskets, bonded seals and complex molded parts. Tooling and cure process depend on geometry and volume.

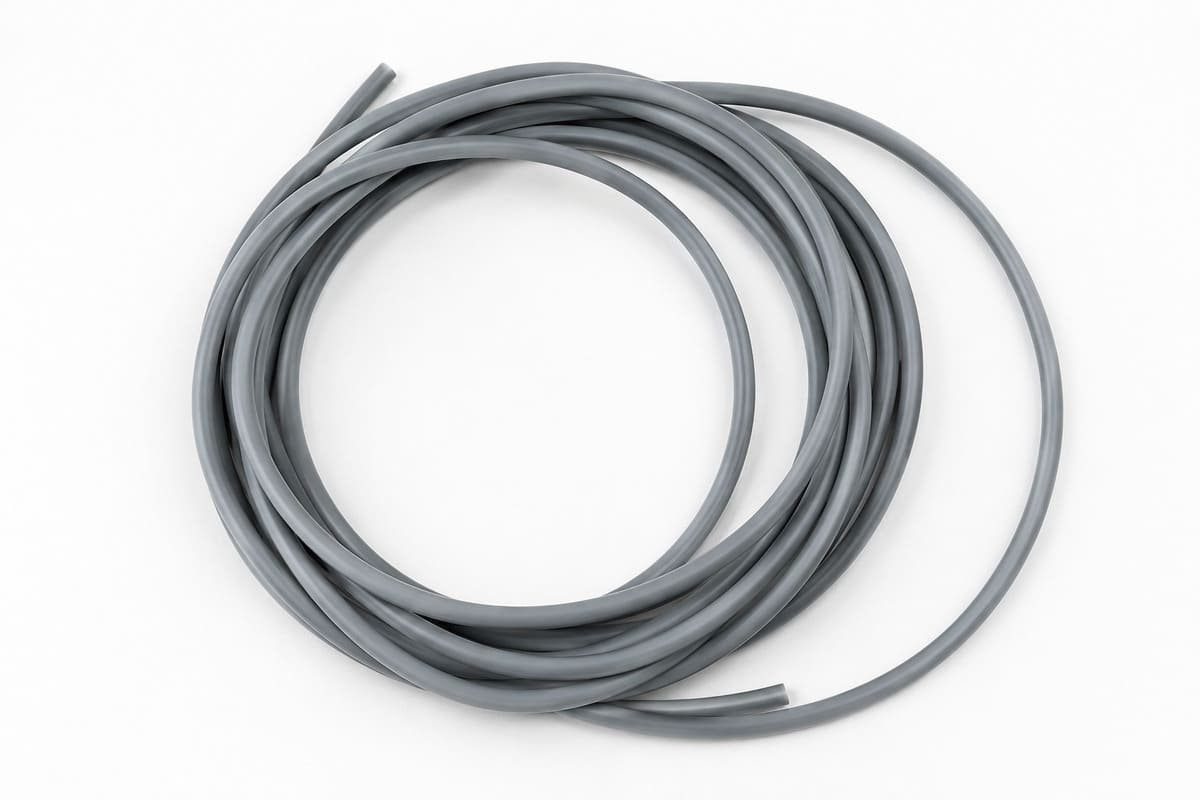

Extruded ACM
Used for selected profiles, hose layers, cords and tubing. Cross-sectional tolerance, surface, cut length and joining requirements should be specified.
Hose & Composite Layers
ACM may be used in air-management or oil-resistant composite constructions where reinforcement, adhesion and layer compatibility are engineered together.
Rubber-to-Metal ACM
Bonded parts require compatible substrate preparation, adhesive, ACM formulation and cure cycle. Aged bond requirements need definition.
Sheet & Cut Gaskets
Flat parts can be cut from a verified ACM sheet when compound, thickness, surface and sheet specification meet the application.
Secondary Operations
Post-curing, trimming, grinding, cutting, marking, inspection and packaging should be defined when they affect performance or cleanliness.
Dimensions & Design
What Tolerances Can Be Achieved on ACM Parts?
There is no universal tolerance for “ACM rubber.” Achievable tolerances depend on part size, geometry, mold-dependent versus mold-independent dimensions, compound shrinkage, tool construction, flash location, process and measurement method.
ISO 3302-1:2014 is a common dimensional-tolerance reference for molded, extruded and calendared solid rubber products. Precision O-rings and similar toroidal sealing rings are normally specified under product-specific standards such as ISO 3601 rather than treating ISO 3302-1 as an O-ring size standard. The correct tolerance system must be agreed before tooling.
Define Critical Characteristics
Identify sealing diameters, wall thickness, compression height, groove interfaces, hole positions and other dimensions that actually control function.
Avoid Unnecessary Tight Tolerances
Tighter tolerances increase tooling, measurement and process-control demands. Apply precision only where it protects fit, sealing or assembly.
Agree Flash & Surface Criteria
Parting line, flash, gate or injection point, trimming, grinding and cosmetic limits should be defined separately from dimensional tolerance.
Confirm Measurement Method
Soft elastomers deform under measurement force. Define conditioning, datums, fixtures and measurement method for dimensions sensitive to compression.
Validation & Quality

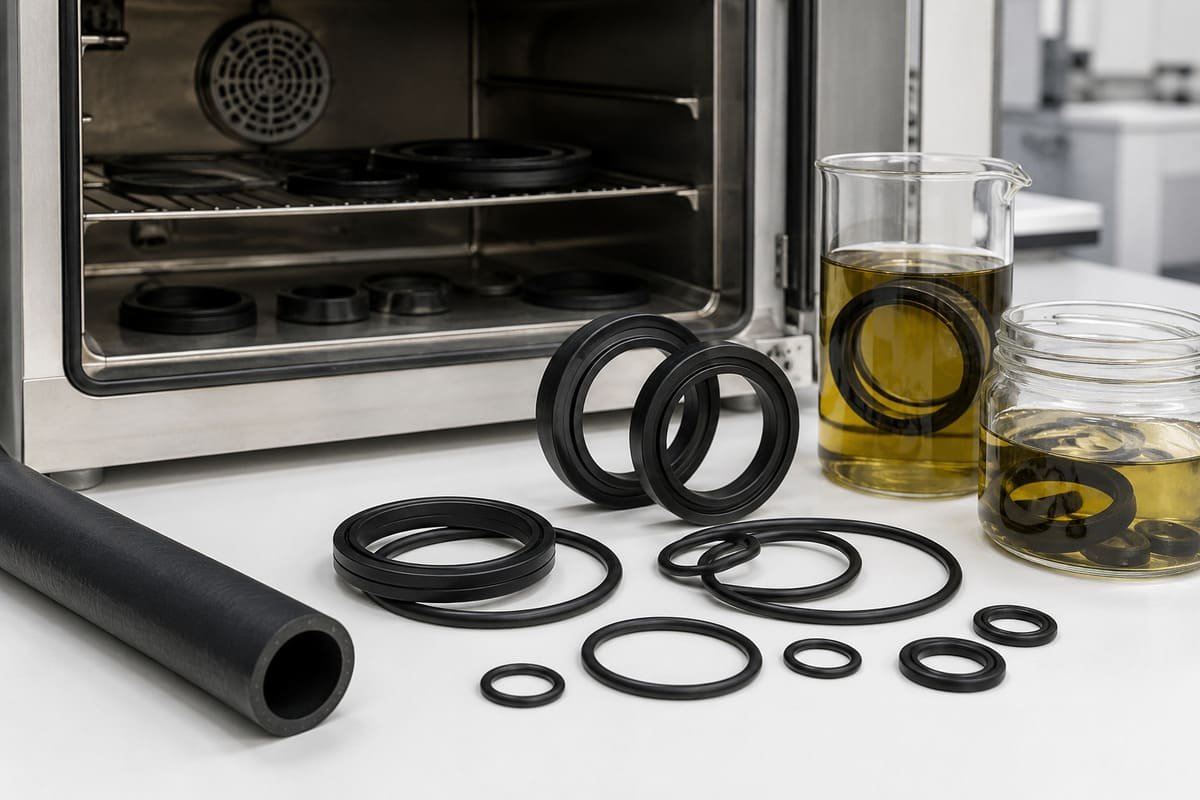

Which Tests Should Be Specified for ACM Rubber?
A useful ACM test plan starts with the dominant failure risk. Hardness and tensile data alone are not enough if a seal must retain force in hot lubricant, recover at low temperature, resist wet-heat degradation or control leakage during rotary service.
| Property / Risk | Common Test Reference | What to Define |
|---|---|---|
| Hardness | ISO 48-4 / ASTM D2240 | Scale, nominal value, tolerance, conditioning and test-piece requirement. |
| Tensile strength / elongation | ISO 37 / ASTM D412 | Minimum values, specimen type and whether results are original or aged. |
| Compression set | ISO 815-1:2019 / ASTM D395 | Compression, time, temperature, recovery method and maximum result. |
| Heat aging | ISO 188:2023 / ASTM D573 | Temperature, duration and permitted hardness, tensile or elongation change. |
| Lubricant / liquid resistance | ISO 1817:2024 / ASTM D471 | Exact fluid, temperature, duration and permitted mass, volume or property change. |
| Low-temperature behavior | ISO 2921 / ASTM D1329 or agreed method | Retraction or recovery criterion, conditioning and actual functional temperature. |
| Wet-heat / hydrolysis resistance | Agreed liquid-aging and property-retention method | Water or coolant, pH, temperature, duration and permitted property change. |
| Dimensions / appearance | Approved drawing and inspection plan | Critical dimensions, method, sampling, flash, trimming and visual criteria. |
| Application validation | Customer-specific test | Pressure, fluid, leakage, cycle, friction, fatigue, life or assembly conditions. |
Test standards and editions should be agreed in the purchase specification. Availability of any specific test, report or third-party laboratory service is to be confirmed for the project.
Regulatory & Documentation
Does ACM Automatically Meet Automotive, RoHS or Other Requirements?
No. ACM is a polymer-family name, not a compliance statement. Specific compounds may be developed or validated for automotive material specifications, lubricant systems, environmental restrictions or customer requirements, but generic ACM does not automatically satisfy any named standard.
If the project requires an OEM material specification, SAE J200 / ASTM D2000 classification, RoHS, REACH, ELV, PPAP documentation, restricted-substance declaration or another customer standard, state the exact revision and evidence required at RFQ stage. Compound availability, color, testing and documentation must be confirmed before approval.
Purchasing Guide
What Information Should You Send for an ACM RFQ?
A quote can look complete but still carry material risk if it contains only “ACM, black, 70 Shore A.” For a hot-oil seal, the exact lubricant and additives, minimum functional temperature, continuous heat, peak exposure and aging limits are as important as hardness and geometry.
| RFQ Item | Information to Provide | Why It Matters |
|---|---|---|
| Geometry | 2D drawing, 3D model or physical sample; identify revision | Defines tooling, parting, dimensional risk and inspection. |
| Function | Shaft seal, O-ring, gasket, hose, bonded seal, molded connector or other part | Changes compression, friction, fatigue and validation requirements. |
| Medium | Exact engine oil, ATF, gear oil, grease, fuel, coolant or chemical; include additives | Determines swelling, extraction, hydrolysis risk and whether ACM is appropriate. |
| Temperature | Minimum, continuous maximum, peak maximum and peak duration | Controls low-temperature flexibility, aging and compression-set risk. |
| Pressure / vacuum | Normal and maximum pressure; pressure direction if relevant | Affects hardness, extrusion, reinforcement and seal geometry. |
| Motion | Static, reciprocating, rotating or flexing; include speed, stroke or cycle | Changes friction, wear, heat generation and counterface requirements. |
| Material target | Approved ACM compound or OEM callout if fixed; hardness, color and cure requirement | Separates mandatory requirements from supplier recommendations. |
| Aging limits | Permitted volume, mass, hardness, tensile, elongation or compression-set change | Turns “hot-oil resistant” into measurable acceptance requirements. |
| Tolerances | Critical dimensions, tolerance standard and inspection method | Controls tooling, process capability and measurement cost. |
| Compliance | Exact regulation, customer standard, report or approval required | Prevents generic ACM from being mistaken for an approved compound. |
| Testing | Hot-air aging, lubricant immersion, compression set, low-temperature, leak, wear or PPAP | Allows validation scope, cost and timing to be reviewed before production. |
| Quantity | Prototype quantity, order quantity and annual demand | Influences tooling layout, cavity count and manufacturing route. |
| Packaging / traceability | Label, lot, cleanliness and packaging requirements | Ensures delivery format matches receiving and production needs. |
ACM FAQ
Frequently Asked Questions About ACM Rubber
These answers are material-family guidance. Final performance should always be confirmed against the exact ACM compound and service conditions.
What does ACM stand for?
ACM is the ISO abbreviation for acrylate rubber. It describes a family of acrylic ester-based elastomers, not one fixed compound, hardness or approval.
Is ACM the same as acrylic rubber or polyacrylate rubber?
Yes. Acrylate rubber, acrylic rubber and polyacrylate rubber are commonly used for the ACM family. A purchasing specification must still identify the exact compound or required performance.
Is ACM rubber resistant to oil?
Resistance to many engine oils, transmission fluids and lubricants is a major ACM strength. Suitability still depends on the exact base oil, additive package, temperature, exposure time and compound.
Can ACM be used with automatic transmission fluid or gear oil?
Selected ACM compounds are widely used with transmission and driveline lubricants. ATF and gear-oil additive packages vary, so the exact fluid, temperature and aging limits must be validated.
What temperature can ACM withstand?
There is no single ACM temperature range. Commercial portfolios include special low-temperature and high-heat grades, and some suppliers publish compoundable ranges extending from about -40°C to 200°C. The exact grade, cure, lubricant, duration and function determine the usable limit.
Is ACM suitable for low-temperature sealing?
Low-temperature performance is a common ACM selection constraint. Special low-temperature grades are available, but storage survival and functional sealing are different requirements; recovery must be checked at the actual minimum temperature.
Is ACM resistant to ozone and outdoor weathering?
ACM generally has useful ozone and weathering resistance because of its saturated backbone. Long outdoor life still depends on compound protection, strain, heat, lubricant exposure and the complete environmental profile.
Is ACM suitable for water, coolant or steam?
Performance in water and coolant is grade- and temperature-specific, and prolonged wet heat can be limiting. Hydrolysis-resistant grades may improve retention, but generic ACM should not be assumed suitable for steam.
What Shore hardness is ACM?
ACM is not one fixed hardness. The correct target depends on geometry, pressure, squeeze, extrusion gap, assembly force, motion, temperature and lubricant exposure. Available compound hardness is to be confirmed.
What causes compression set in an ACM seal?
Compound design, cure state, post-cure, time, temperature, compression, lubricant and thermal cycling all influence compression set. Excessive set can reduce sealing force even when the part has no obvious crack.
ACM or AEM: which should I choose?
ACM is a strong candidate for hot-oil sealing. AEM is often evaluated when improved low-temperature flexibility, flex fatigue or selected coolant performance is important. Compare the exact fluid, temperature, motion and compound data.
ACM or HNBR: which should I choose?
ACM is widely used for hot automotive lubricants and good sealing-force retention. HNBR is often selected when stronger mechanical, abrasion or dynamic performance is required. Fluid additives and low-temperature duty may decide the choice.
ACM or FKM: which should I choose?
ACM can be cost-effective for validated hot-oil duties. FKM is commonly considered for higher heat or broader fuel and chemical resistance, but FKM type and low-temperature behavior still matter.
Can ACM be bonded to metal?
Yes. ACM can be used in bonded seals and carriers when substrate preparation, adhesive, compound and cure cycle are designed together. Aged bond testing should be specified when durability is critical.
What information is needed to quote a custom ACM part?
Send the drawing, 3D model or physical sample together with the exact lubricant and additives, minimum and maximum temperature, pressure, motion, hardness, tolerance, compliance, testing and quantity requirements.
Custom ACM Components
Have an ACM shaft seal, gasket, hose or molded part to develop?
Send the available drawing or sample information together with the exact lubricant and additives, temperature profile, pressure, motion, hardness target and expected quantity. We can review the ACM material direction, manufacturing feasibility and the technical information still needed before quotation.
