Construction and Heavy Equipment Application Engineering Guide
Rubber Parts for Construction and Heavy Equipment
Rubber parts for construction and heavy equipment seal hydraulic systems, isolate vibration, exclude dust and mud, protect cables and joints, carry fluids and control impact in excavators, loaders, bulldozers, cranes, compactors and attachments. A reliable component must be engineered around its exact machine system, mounting location, fluid, pressure, load, motion, contamination, service life and production controls—not selected by shape or polymer name alone.
Application Fundamentals

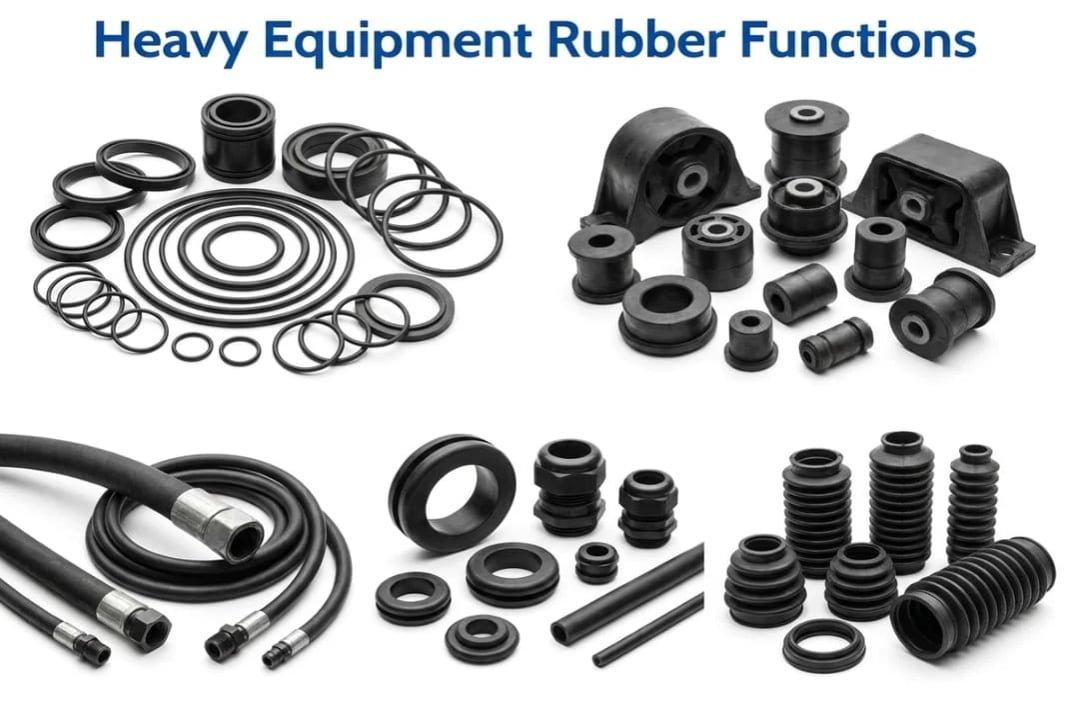

What Do Heavy-Equipment Rubber Parts Actually Do?
Heavy-equipment rubber parts are functional interfaces between hydraulic fluids, structures, wiring, moving joints and a highly contaminated outside environment. Their job is rarely described completely by a product name. A grommet may protect a harness, seal a panel opening and decouple vibration at the same time; a hose must transport fluid while tolerating pressure impulses, heat, articulation, abrasion and installation strain.
The correct engineering sequence is function first, location second, exposure third and material fourth. Starting with “oil-resistant rubber” or “70 Shore gasket” can hide the real risks: extrusion, fluid swell, cold hardening, fatigue, abrasive wear, bond separation, assembly damage or uncontrolled variation between batches.

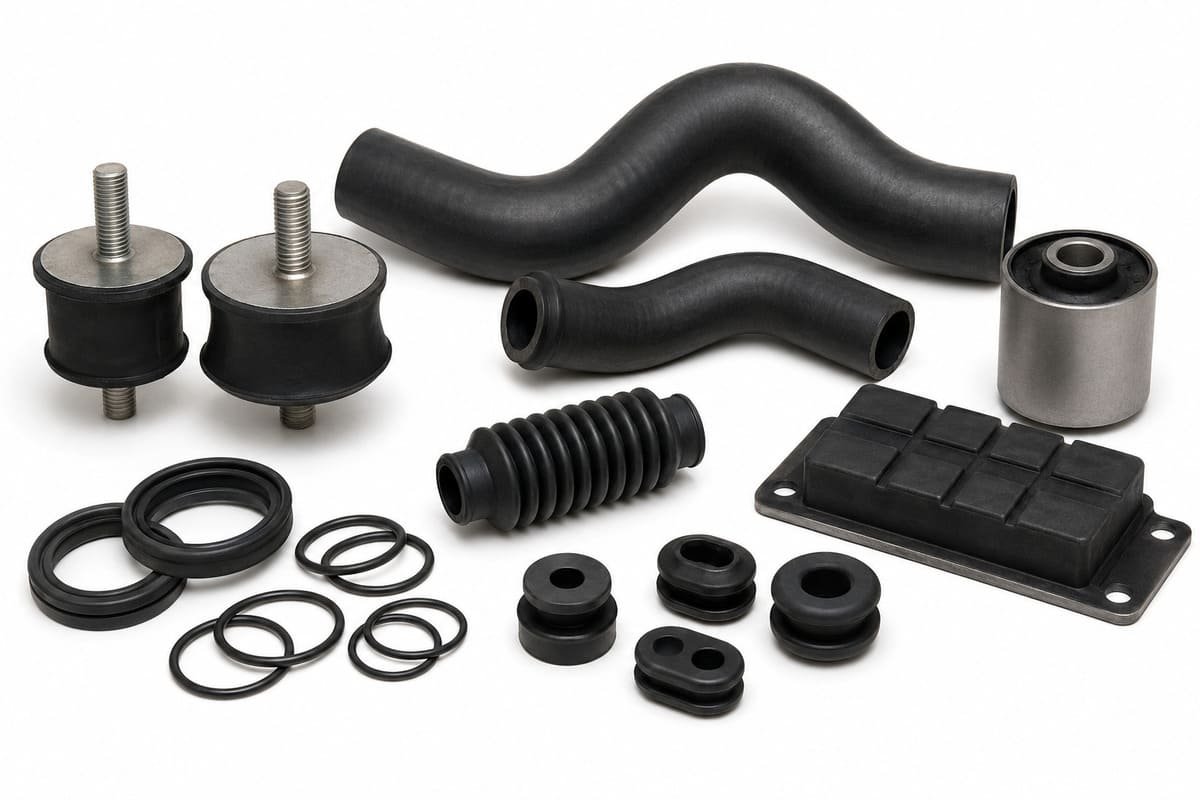

This guide covers custom elastomer components used in excavators, wheel loaders, bulldozers, cranes, compactors, agricultural and mining equipment, attachments and related site machinery. Actual requirements remain controlled by the customer's drawing, material specification, validation plan and supplier requirements.
Control Hydraulic Fluids
Gaskets, O-rings, custom seals, diaphragms and sleeves reduce leakage across defined interfaces. Pressure, squeeze, extrusion gap, surface finish and fluid compatibility must be designed together.
Manage Shock & Vibration
Bushings, engine mounts, cab mounts, pads and bonded isolators tune stiffness, damping and movement between structures. Static hardness alone does not define isolation performance.
Carry Fluid & Air
Hydraulic, coolant, fuel and air hoses transport media while tolerating routing, pressure impulses, vacuum, machine articulation and vibration.
Exclude Dust & Mud
Wipers, boots, bellows, caps and covers protect cylinder rods, joints, actuators and connectors from abrasive dust, mud, water and debris.
Protect Wiring & Openings
Grommets and pass-through seals isolate cables or tubes from panel edges, locate assemblies and control water, dust, chafing and noise paths.
Control Impact & Travel
Bumpers, stops, pads, track components and buffers absorb energy, limit travel, prevent hard contact and accommodate assembly variation.
System Mapping
Where Are Rubber Components Used Across Construction Machinery?
Mounting location changes the exposure profile. A cab seal, hydraulic hose, cylinder wiper, engine mount and track pad can all be made from elastomers, yet they see different fluids, temperatures, pressure, movement, loads, contamination and failure consequences.
| Machine System | Representative Rubber Parts | Dominant Engineering Questions |
|---|---|---|
| Hydraulic pumps, valves & manifolds | O-rings, gaskets, bonded seals, diaphragms, sleeves and accumulator components | Exact fluid, working and peak pressure, impulse, temperature, extrusion gap and cleanliness. |
| Cylinders, booms & attachments | Rod wipers, dust seals, bellows, protective boots, pin bushings and hose guards | Stroke, side load, rod condition, packed debris, articulation, fatigue and pull-off resistance. |
| Engine & powertrain | Gaskets, O-rings, mounts, couplers, boots, grommets and oil-contact parts | Hot oil, blow-by gases, heat ageing, vibration, compression set and contamination. |
| Cooling, fuel & air systems | Radiator hoses, formed elbows, charge-air couplers, fuel seals and connector gaskets | Exact coolant or fuel, hot-fluid ageing, pressure/vacuum, permeation, clamps and routing. |
| Transmission & driveline | Oil seals, gaskets, boots, bonded dampers, mounts and flexible couplings | Transmission fluid, torsional movement, heat, fatigue, wear and bonded-interface durability. |
| Undercarriage & ground contact | Rubber tracks, track pads, bonded rollers, bump stops and wear strips | Load, sharp terrain, abrasion, cut and tear, impact, traction, heat build-up and adhesion. |
| Steering, braking & actuation | Boots, seals, diaphragms, grommets and air- or hydraulic-system hoses | System-specific fluid, pressure, safety consequence, low-temperature response and validated material. |
| Cab, doors & access panels | Weatherstrips, glazing profiles, joystick boots, floor grommets and panel seals | Dust and water paths, ozone, UV, compression recovery, closing force and frame variation. |
| Electrical & electronics | Connector seals, cable grommets, enclosure gaskets, boots and battery seals | Ingress at assembly level, pressure washing, temperature cycles, fluids, chafing and electrical requirements. |
| Breakers, grapples & compactors | Diaphragms, dampers, hoses, covers, mounts and high-fatigue bonded parts | Impact, pressure pulses, vibration, debris, rapid cycling, attachment motion and service replacement. |
| Crushers, screens & site equipment | Rubber springs, isolation mounts, liners, flexible connectors, wheels and rollers | Abrasive particles, high dynamic load, misalignment, heat build-up, outdoor exposure and wear. |
Product Architecture
What Are the Main Types of Heavy-Equipment Rubber Parts?
Construction-equipment elastomer parts should be classified by function and construction, not shape alone. Molded, extruded, reinforced, hose and rubber-to-metal products have different design rules, tooling routes, tolerances and failure modes.

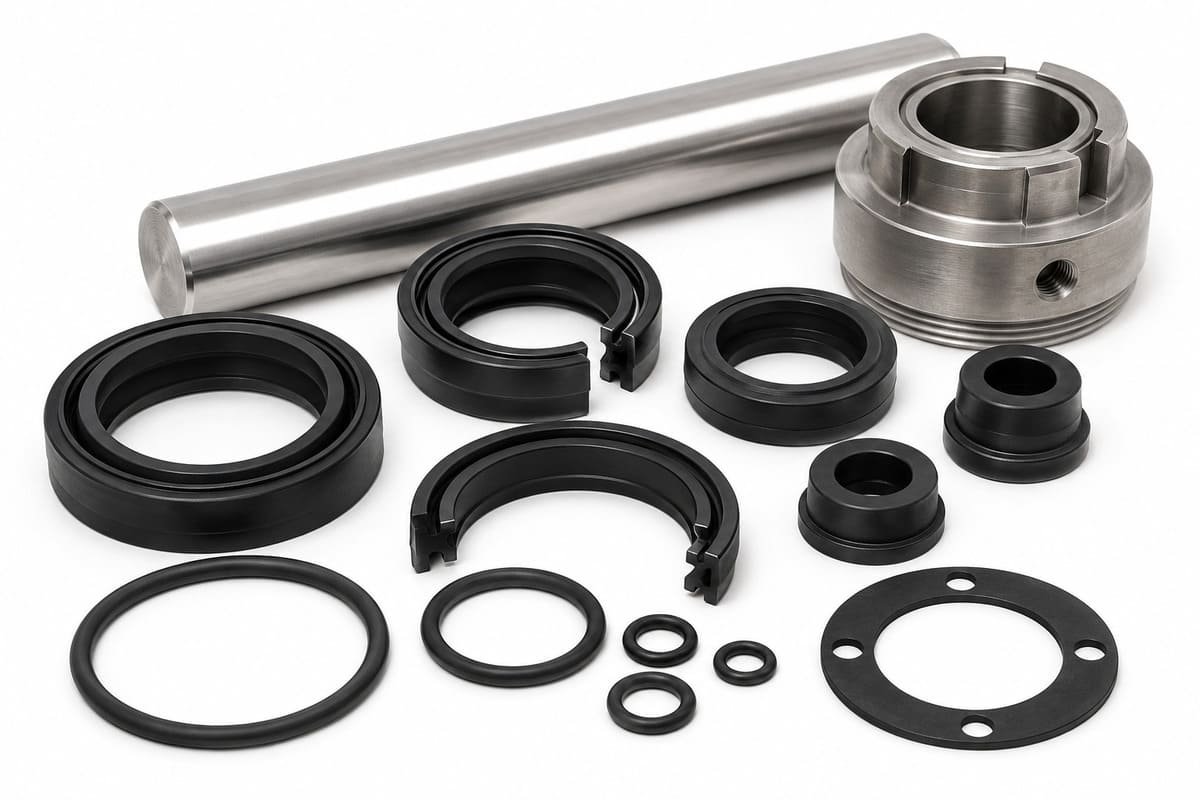

Hydraulic Seals, Gaskets & O-Rings
Static or limited-motion interfaces for hydraulic fluid, oil, coolant, air, fuel or water. Groove geometry, pressure direction, extrusion gap and retained sealing force are critical.

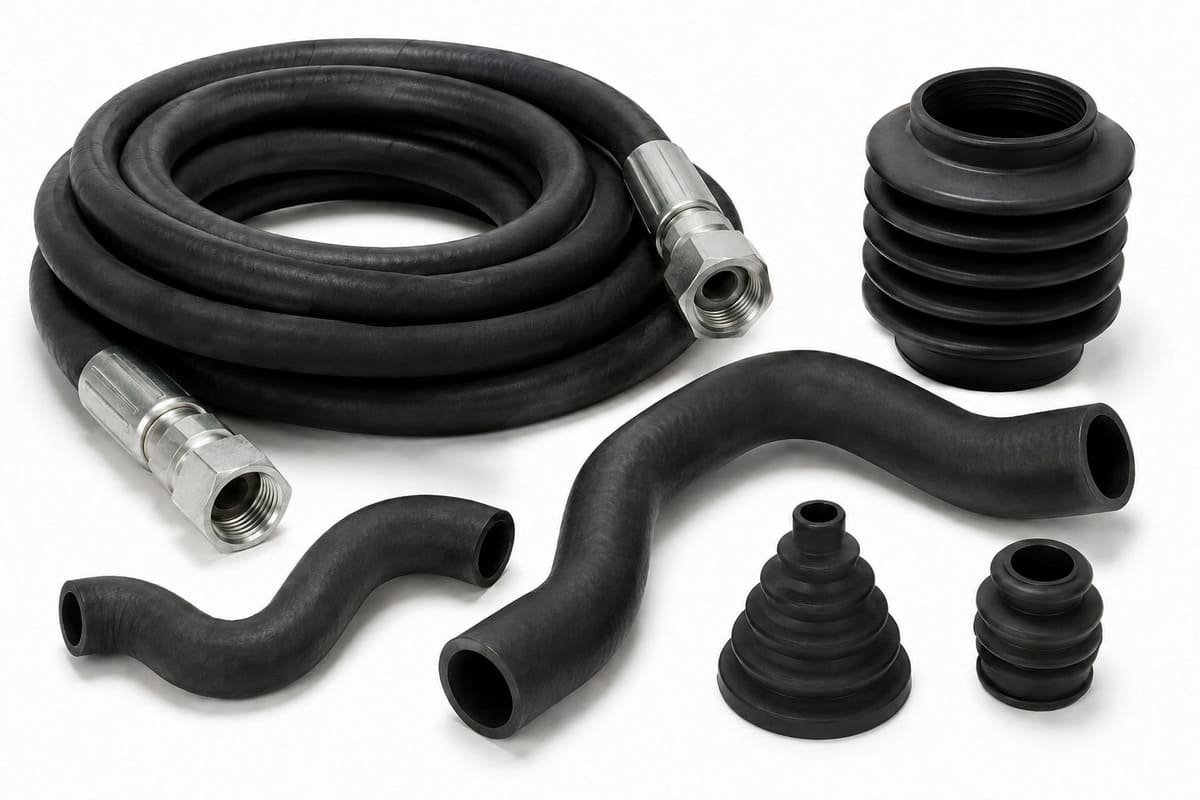

Hydraulic Hoses, Ducts & Couplers
Straight or formed constructions for hydraulic fluid, air, coolant, vacuum, oil or fuel. Reinforcement, fittings, crimp, wall design, routing and end geometry affect reliability.
Bushings, Mounts & Isolators
All-rubber or bonded components that control engine, cab, equipment and linkage load paths. Static, dynamic and temperature-dependent stiffness may all matter.
Wipers, Boots & Bellows
Flexible barriers for cylinder rods, joints, control levers, actuators and connectors. Stroke, articulation, fold geometry, venting, debris and fatigue require validation.
Grommets & Electrical Seals
Panel interfaces for cables, tubes and harnesses. Panel thickness, hole geometry, retention, insertion force, sealing lips and edge protection must be defined.
Diaphragms, Bladders & Valve Parts
Pressure-responsive parts for pumps, valves, accumulators and fluid-control modules. Stroke, pressure, reinforcement, decompression, fatigue and fluid compatibility interact.
Stops, Pads & Wear Components
Cushioning, spacing, ground-contact or protection parts. Load, impact energy, abrasion, compression, traction, retention and environment guide the design.
Cab Profiles & Panel Seals
Solid, sponge or multi-material profiles used around doors, windows, covers, filters and enclosures. Cross-section, compression load, frame tolerance and joining quality control sealing.

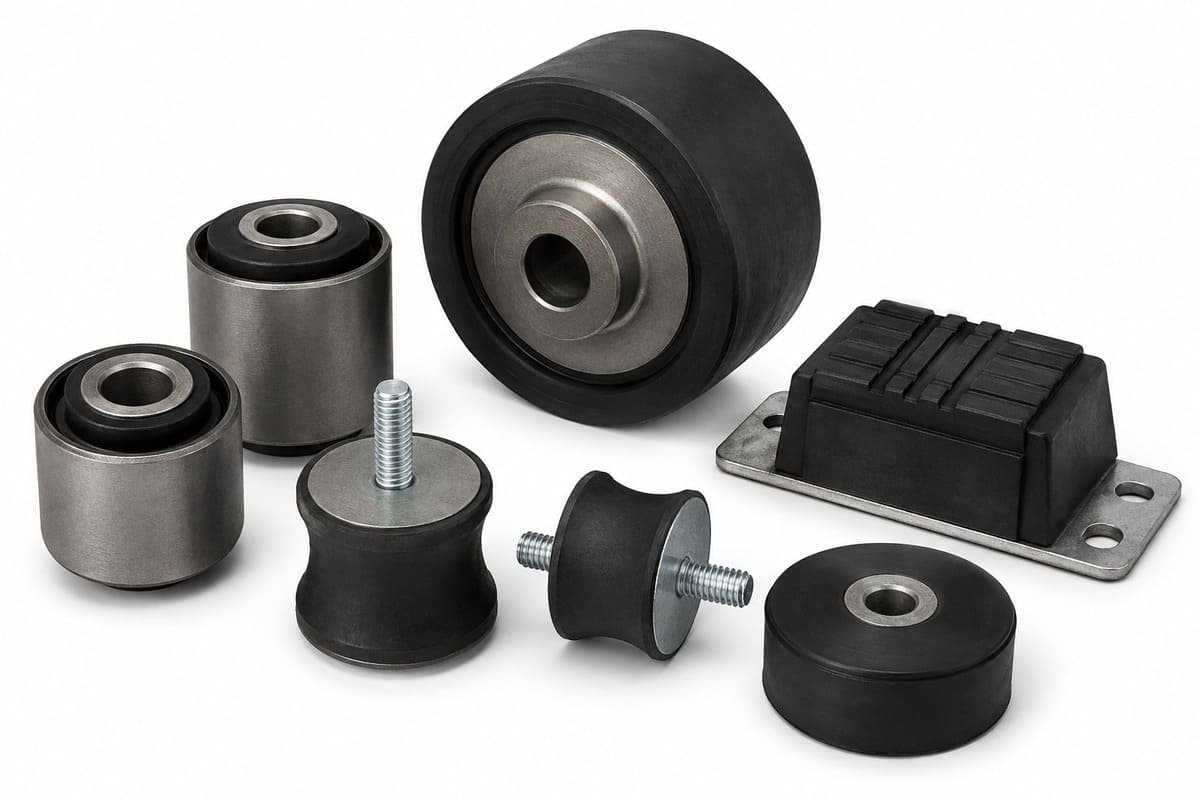

Rubber-to-Metal Bonded Parts
Bushings, mounts, rollers, pads and isolators using inserts or housings. Surface preparation, adhesive, rubber flow, bond edges, load direction and corrosion protection are part of the design.
Duty Definition
Which Operating Conditions Must Be Defined Before Material Selection?
“Heavy duty,” “outdoor” or “oil resistant” are not complete service conditions. Construction-equipment exposure changes by mounting location, machine duty, site material, fluid formulation, cleaning process, climate and maintenance. The RFQ should separate normal, peak, transient, storage and abuse conditions.
| Exposure Category | Information to Define | Why It Changes the Part |
|---|---|---|
| Temperature | Cold start, continuous maximum, peak, peak duration, thermal cycle, fluid temperature and nearby heat source | Controls elasticity, compression set, ageing, stiffness, fluid response and assembly dimensions. |
| Fluids & chemicals | Exact hydraulic fluid, engine oil, fuel blend, coolant, grease, refrigerant oil, cleaner or site chemical | Generic families contain different additives and chemistries that change swell and retained properties. |
| Pressure & vacuum | Working, peak, impulse, proof, burst, suction vacuum, reversal and decompression profile | Controls extrusion, reinforcement, wall thickness, collapse, fittings and leakage testing. |
| Motion | Static, reciprocating, rotating, articulation, flexing, torsion, vibration, stroke, speed and cycles | Changes fatigue, abrasion, heat build-up, friction and geometry requirements. |
| Mechanical load | Compression, shear, tension, side load, impact, torque, insertion and extraction forces | Hardness alone cannot predict stiffness, damping, deformation, bond stress or service strain. |
| Site & weather exposure | Ozone, UV, water, salt, ice, clay, silica dust, sand, stone impact and pressure washing | Changes polymer family, protective additives, surface design and validation. |
| Electrical environment | Voltage class, insulation, conductivity, grounding, battery system and cable interfaces | Standard black rubber is not automatically insulating, conductive, flame rated or suitable for high-voltage use. |
| Contamination & cleanliness | Dust size, mud, water, metal particles, concrete slurry, silicone restrictions and capped hose cleanliness | Particles and secondary operations can affect hydraulic, electronic, optical and cab requirements. |
| Assembly & service | Lubricant, stretch, insertion path, clamps, crimp, sharp edges, field tools and replacement access | Installation and maintenance can damage a suitable material before or during service. |
| Service life | Machine hours, cycles, seasonal storage, service interval, duty profile and permitted performance drift | Short material tests do not automatically predict system-level life. |
Compound Strategy
How Do NBR, HNBR, EPDM, CR, Silicone, FKM, NR and PU Compare?
Polymer family is an efficient first screen, not a final specification. The finished compound includes polymer grade, fillers, plasticizers, cure system, protective additives, pigments and process controls. Two compounds with the same generic name and hardness can age, swell, compress and fatigue differently.
| Material Family | Strong Heavy-Equipment Starting Point | Main Limits to Review |
|---|---|---|
| EPDM | Cab profiles, exterior grommets, water/coolant parts and weather-exposed seals using the correct compound | Generally unsuitable for petroleum oils and hydrocarbon fuels; hot-fluid and compression-set performance are compound-specific. |
| NBR | Mineral-oil, grease, hydraulic-fluid and selected fuel seals at appropriate temperatures | Ozone, weathering, cold flexibility, hot ageing and fuel-blend compatibility vary with formulation. |
| HNBR | Hydraulic, engine, oil, heat, ozone and mechanical duties needing more margin than standard NBR | Exact fuel, biodegradable fluid, coolant, low-temperature and chemical response still require grade-specific data. |
| VMQ Silicone | Wide-temperature flexibility, electrical insulation, weathering and selected protected air or enclosure parts | Standard VMQ is not a universal fuel/oil material; tear, abrasion and gas permeation require attention. |
| FKM | Hot oils, fuels and chemically demanding engine or hydraulic seals using the correct FKM type | Low-temperature flexibility, steam, amines and some fluids vary widely by grade; cost is higher. |
| FVMQ | Compatible fuel/oil sealing where low-temperature flexibility is also important | Tear, abrasion, dynamic wear and permeation often need more careful design than tougher elastomers. |
| ACM | Hot engine and transmission oils where the chosen grade fits the fluid | Low-temperature flexibility and water resistance can be limiting. |
| AEM | Hot oil, air-management, hose and engine-compartment applications needing heat and ozone resistance | Fuel and aggressive-fluid resistance are formulation-dependent. |
| CR / Neoprene | Balanced weather, flex, moderate oil and mechanical performance in boots, bellows, mounts and hose covers | Usually not the strongest choice for severe hot oil, fuel or long-term high-temperature service. |
| Natural Rubber | High resilience, fatigue, tear and vibration performance in mounts, bushings and impact parts | Poor resistance to petroleum oil, ozone, UV and long-term outdoor exposure without protection. |
| IIR / Halobutyl | Low gas permeability, damping and selected accumulator or fluid-control applications | Dynamic rebound, oil/fuel resistance and bonding/process requirements depend on formulation. |
| PU | High wear, load support, tear and anti-extrusion duties such as wipers, rollers, stops and wear parts | Hydrolysis, heat, compression set and fluid compatibility vary strongly by chemistry. |
Do not select by hardness alone
- Hardness does not define compression set or sealing-force retention.
- It does not predict dynamic modulus, damping or fatigue life.
- It does not prove compatibility with hydraulic fluid, grease, fuel or coolant.
Approve the complete compound
- Use a material specification or agreed property envelope.
- Define aged-property and fluid-immersion requirements.
- Control compound identity and changes through production.
Machine Duty Zones

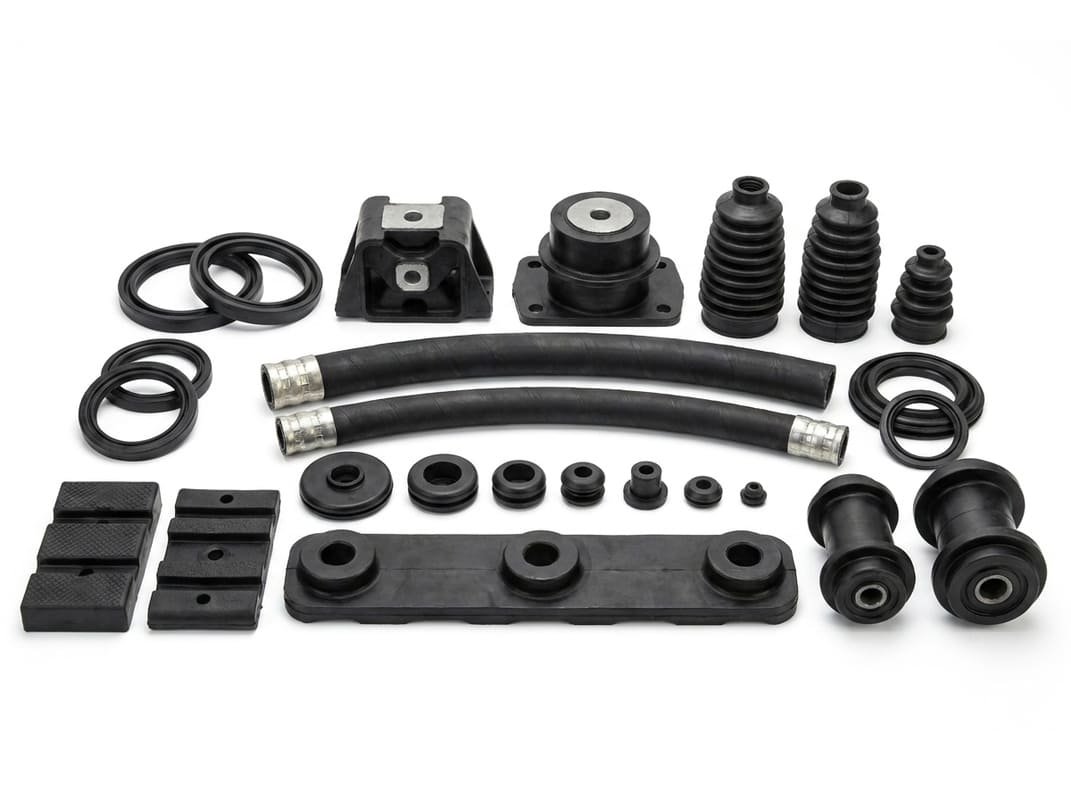

How Do Hydraulic, Engine, Cab and Undercarriage Zones Change Requirements?
A construction machine combines high-pressure fluid power, hot engine systems, operator-isolation requirements, exposed electrical interfaces and abrasive ground contact. The same polymer or test plan cannot be assumed across these zones.
| Duty Zone | Important Rubber-Part Areas | Key Validation Questions |
|---|---|---|
| Hydraulic and work equipment | Pumps, manifolds, valves, cylinders, accumulators, hoses, boom/arm joints and attachments | Exact fluid, pressure impulse, extrusion clearance, decompression, stroke, debris and hose articulation. |
| Engine, cab and electrical | Engine oil, fuel, charge air, cooling, mounts, weatherseals, harnesses, enclosures and operator controls | Hot fluids, vibration, low-temperature start, dust/water ingress, closing force, pressure washing and electrical requirements. |
| Undercarriage and site contact | Rubber tracks, track pads, bonded rollers, stops, wear strips, screening and crushing components | Load, abrasion, cuts, tear, impact, traction, sharp debris, heat build-up, bond durability and replaceability. |
Hydraulic Pressure & Impulse
Seals, diaphragms and hoses must be matched to normal pressure, peaks, waveform, temperature, fluid, fittings and the maximum hardware clearance under load.
Dust, Mud & Pressure Washing
Wipers, boots, cab seals and enclosure gaskets must control abrasive contamination without trapping water, packed debris or pressure at moving interfaces.
Engine & Cooling Exposure
Oil, fuel, coolant, charge air and heat require exact media definitions, clamp interfaces, movement allowance and retained-property testing after ageing.
Cab Isolation & Sealing
Cab mounts, door profiles, glazing seals and control boots must balance vibration isolation, closing force, frame variation, dust exclusion and service access.
Undercarriage Wear
Tracks, pads, rollers and stops need representative load, terrain, bending, impact, abrasion, temperature and bond testing; hardness alone cannot predict life.
Electrified Equipment
Battery seals, high-voltage cable interfaces and cooling components may add insulation, thermal-event, venting and cleanliness requirements that must be specified separately.
Geometry & Interfaces
Which Design Decisions Control Heavy-Equipment Rubber-Part Reliability?
Material cannot rescue an uncontrolled interface. Hydraulic sealing squeeze, extrusion gaps, hose routing, bushing preload, bellows stroke, insert geometry, bond-edge stress, cab frame variation and service assembly often determine whether a suitable compound succeeds or fails.
Hydraulic Sealing Compression
Define nominal and worst-case squeeze, groove volume, pressure direction, relaxation, surface condition and thermal expansion. Too little compression leaks; too much can damage or overfill the gland.
Extrusion Gap
Pressure, peak impulse, hardness, temperature, fluid swell and hardware movement influence gap extrusion. Back-up rings or reinforced geometry may be required.
Mating Surface
Rod or flange finish, waviness, coating, corrosion, porosity, wear and contamination affect sealing and friction. Rubber specifications should not ignore the hardware.
Movement & Strain
Wipers, boots, bellows, diaphragms and hoses need controlled strain through the complete stroke and articulation envelope. Sharp roots and local stretch can start fatigue cracks.
Assembly Protection
Chamfers, lead-ins, lubrication, insertion tools, clamps and edge radii prevent cuts, twisting and overstretch. Retention must be balanced with assembly and service force.
Rubber-to-Metal Geometry
Insert preparation, mechanical interlock, adhesive area, rubber thickness, load direction, bond-edge protection and corrosion control influence durability.
Hose Routing
Bend radius, clamp position, fitting orientation, boom or engine movement, chafing clearance and pressure growth should be checked in the installed state.
Drainage & Venting
Cab seals, electrical boots and protective bellows can trap water, mud, air or pressure. Intentional drain and vent paths must not create uncontrolled ingress routes.
Serviceability & Traceability
Markings, cavity identification, orientation features and packaging can reduce installation errors and support field replacement, containment and failure analysis.
Dimensional Control
How Should Dimensions and Tolerances Be Specified?
Elastomer dimensions vary with mold shrinkage, compound batch, cure, post-cure, part geometry, reinforcement, insert position, flash removal, storage and measurement force. Applying metal-part tolerances to every dimension can increase tool and inspection cost without improving function.
ISO 3302-1 is commonly used as a dimensional-tolerance framework for solid rubber products, while O-rings may use ISO 3601 or a customer-specific standard. The applicable class, exceptions and latest required edition must be stated on the drawing. Actual capability is to be confirmed after part and process review.
| Drawing Element | Recommended Treatment | Common Risk |
|---|---|---|
| Critical sealing dimensions | Identify with functional tolerance, datum logic and measurement method | Unclear priorities cause cost to be spent on non-functional features. |
| Mold-dependent dimensions | Distinguish dimensions formed in the same mold part from those crossing parting interfaces | Parting and tool movement can change achievable capability. |
| Wall thickness | Control where it affects pressure, extrusion, flexing, cure or collapse | Large variation can concentrate strain or change hose, seal or boot behavior. |
| Flash and parting line | Define location, maximum condition and functional exclusion zones | A generic visual statement may allow flash on a sealing lip or assembly surface. |
| Surface condition | Separate cosmetic criteria from cuts, flow marks, knit lines, contamination and functional defects | Subjective appearance standards create inconsistent inspection. |
| Soft-part measurement | Define conditioning, fixture, contact force, gauge and time after molding/post-cure | Different methods can produce different results on the same part. |
| Extruded profiles | Control cross-section, cut length, bow, twist, splice or corner joints as applicable | Local section compliance does not guarantee assembled sealing continuity. |
| Bonded inserts | Use datums that reflect installed load and distinguish insert from rubber tolerances | Insert position, runout, coating and rubber flash may interact. |
Production Route

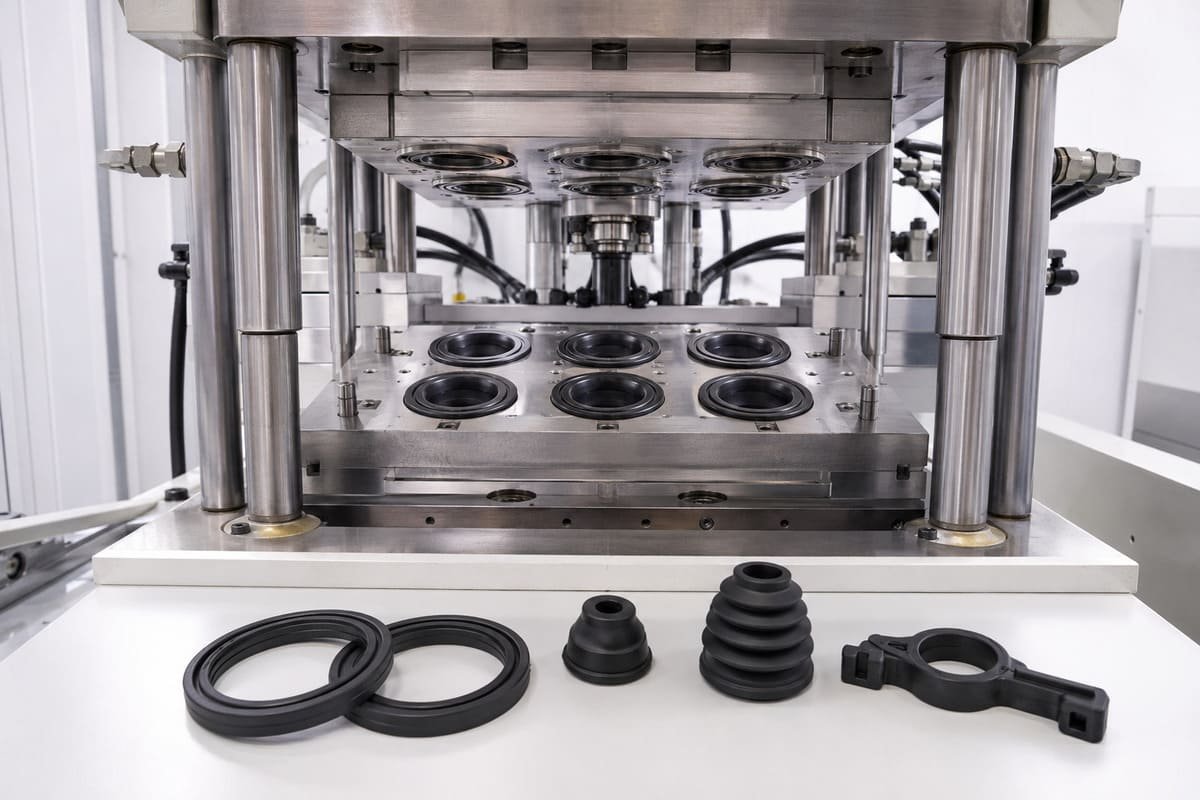

How Are Custom Heavy-Equipment Rubber Parts Manufactured?
Process selection depends on geometry, compound form, volume, pressure duty, dimensional risk, insert structure, reinforcement and required automation. Compression, transfer and injection molding can all be valid; the lowest unit price is not always the lowest total risk.
Machine, function, drawing, fluid, pressure/load, validation, volume and timing.
Geometry, parting, shrinkage, reinforcement, inserts, tooling route and compound specification.
Mold manufacture, trial, dimensional review, assembly check and initial testing.
Corrections, validation, PPAP scope and signed requirements.
Controlled process, inspection, traceability, packaging and delivery.
Compression Molding
Useful for many low-to-medium volume, larger, reinforced or insert-related parts. Charge placement, venting, cure and flash control affect repeatability.
Transfer Molding
Can improve material flow into multi-cavity or insert geometries while keeping controlled mold loading. Runner waste and flow behavior require review.
Injection Molding
Supports automated, repeatable production for suitable compounds and volumes. Tool balance, cold/runner system, scorch safety and gate effects are important.
Extrusion & Profile Joining
Used for cab seals, channels, tubing and profiles. Cross-section, surface, cure, cut length and joint/corner quality must match the assembly.
Hose Construction
May combine inner tube, wire or textile reinforcement and cover layers, followed by forming, vulcanization, fitting and crimp. Each layer must match fluid, pressure and environment.
Rubber-to-Metal Bonding
Requires controlled insert cleaning, surface treatment, adhesive, handling and cure. Bond testing should reflect load direction, substrate, corrosion and environmental risk.
Fabric Reinforcement
Diaphragms, hoses and flexible structures may use textile layers to control growth and load. Fabric orientation and exposed edges influence fatigue.
Deflashing & Trimming
Manual, cryogenic, die-cut or other methods are chosen around geometry and defect risk. Sealing lips and thin edges need special protection.
Cleaning, Marking & Packaging
Secondary operations should meet hydraulic cleanliness, traceability and service-assembly requirements without introducing contamination or deformation.
Industrialization
How Should Tooling, Prototypes and Samples Be Planned?
Prototype intent must be clear. A rapid prototype can check packaging and assembly but may not represent molded compound properties, production shrinkage, parting lines or process capability. Production approval should use parts from production-intent material, tooling and process unless the customer authorizes another route.
| Stage | Purpose | Important Controls |
|---|---|---|
| Concept / soft prototype | Package space, assembly direction or interface review | Do not use substitute material behavior as production validation. |
| Prototype tool | Early molded geometry and material screening | Document differences from production cavity, steel, venting and process. |
| Production-intent tool | Dimensional, functional and process approval | Cavity count, parting, gate, surface, insert location and identification. |
| Tool trial | Establish fill, cure, release, flash and dimensional direction | Record compound batch, process settings, cavity and corrections. |
| Initial samples | Drawing, material, assembly and application validation | Use an agreed inspection and test report; identify sample, cavity, process status and revision. |
| Run at rate / capacity review | Confirm output and control under production conditions when required | Cycle, labor, scrap, cavity balance, inspection and packaging flow. |
Failure Analysis

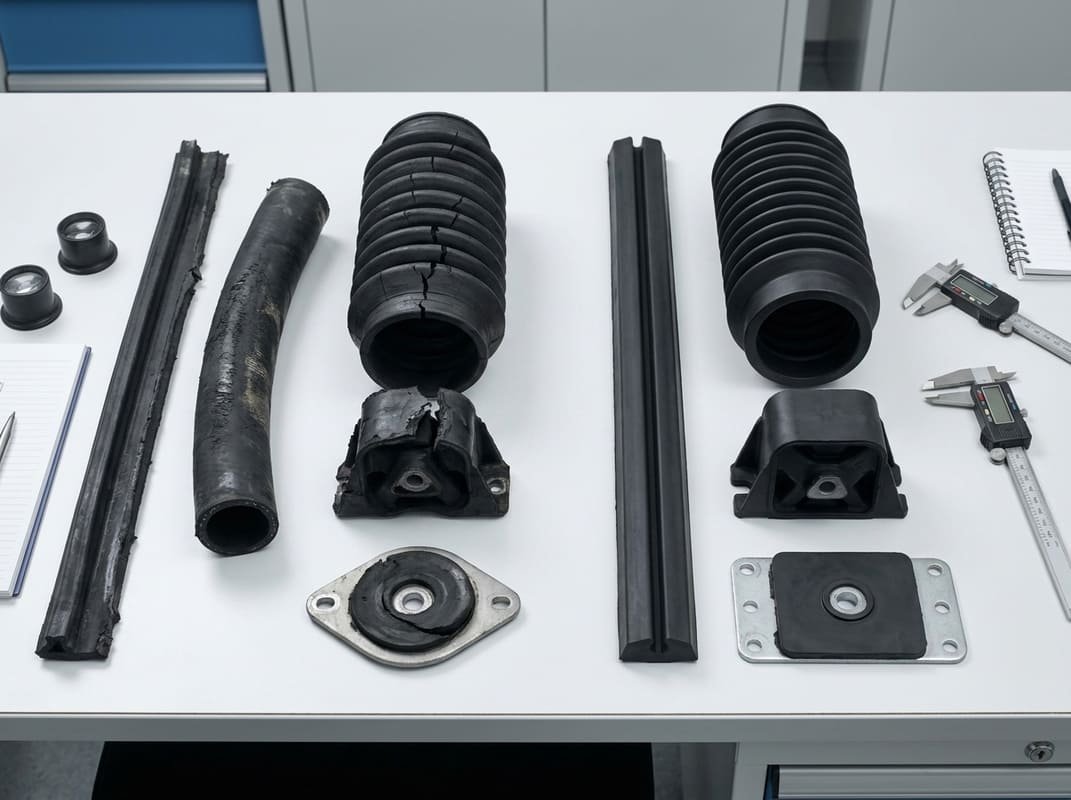

Why Do Heavy-Equipment Rubber Parts Leak, Crack, Wear or Separate?
A failed part should not be diagnosed from appearance alone. Similar cracks can result from ozone, flex fatigue, abrasive debris, installation cuts, chemical attack or excessive strain. Root-cause work should preserve the failed part, mating hardware, fluid and pressure history, machine hours, installation method, lot/cavity data and a known-good comparison.
| Observed Failure | Possible Causes | Evidence to Check |
|---|---|---|
| Leakage without visible damage | Low squeeze, flange movement, surface waviness, compression set, pressure spikes or incorrect assembly | Compression map, hardware flatness, fastener load, pressure history, leak location and aged cross-section. |
| Swelling or softening | Incompatible hydraulic fluid, fuel, coolant, cleaner, additive package, contamination or excessive temperature | Exact fluid identity, exposure sequence, volume/mass change, hardness change and compound traceability. |
| Hardening or cracking | Heat/oxidation, ozone under strain, chemical extraction, low-temperature embrittlement or excessive ageing | Crack orientation, installed strain, surface location, temperature history and retained properties. |
| Extrusion or nibbling | High pressure, excessive gap, thermal softening, swelling, pressure impulse or insufficient support | Gap under load, pressure waveform, seal hardness/modulus, back-up arrangement and damage direction. |
| Cut, chunked or torn edge | Sharp hardware, stone impact, abrasive debris, poor lead-in, overstretch, trapped flash or handling damage | Installation path, terrain, counterface, edge radius, tool marks and fracture origin. |
| Bellows/boot fatigue | Excess stroke, local strain, misalignment, packed mud, abrasion, pressure lock or poor fold geometry | Motion envelope, witness marks, crack origin, debris, venting and cycle history. |
| Hose blister, crack or burst | Fluid attack, impulse/temperature excess, reinforcement damage, incorrect crimp, kinking or chafing | Layer-specific failure, route, fitting/crimp, bend, burst section, pressure trace and fluid residue. |
| Bond separation | Insert contamination, adhesive/process variation, corrosion, peel stress, overload or environmental ageing | Rubber/adhesive/metal failure surface, insert finish, preparation, load direction and cure records. |
| Excess vibration or mount tearing | Wrong dynamic stiffness, preload, overload, oil attack, temperature shift, resonance or installation constraint | Frequency/load/temperature data, travel marks, installed orientation and force-displacement response. |
| Rapid wear or track damage | Misalignment, high contact pressure, sharp terrain, slipping, heat build-up or unsuitable compound | Wear map, operating surface, machine alignment, load, speed, temperature and retained cross-section. |
Evidence of Suitability

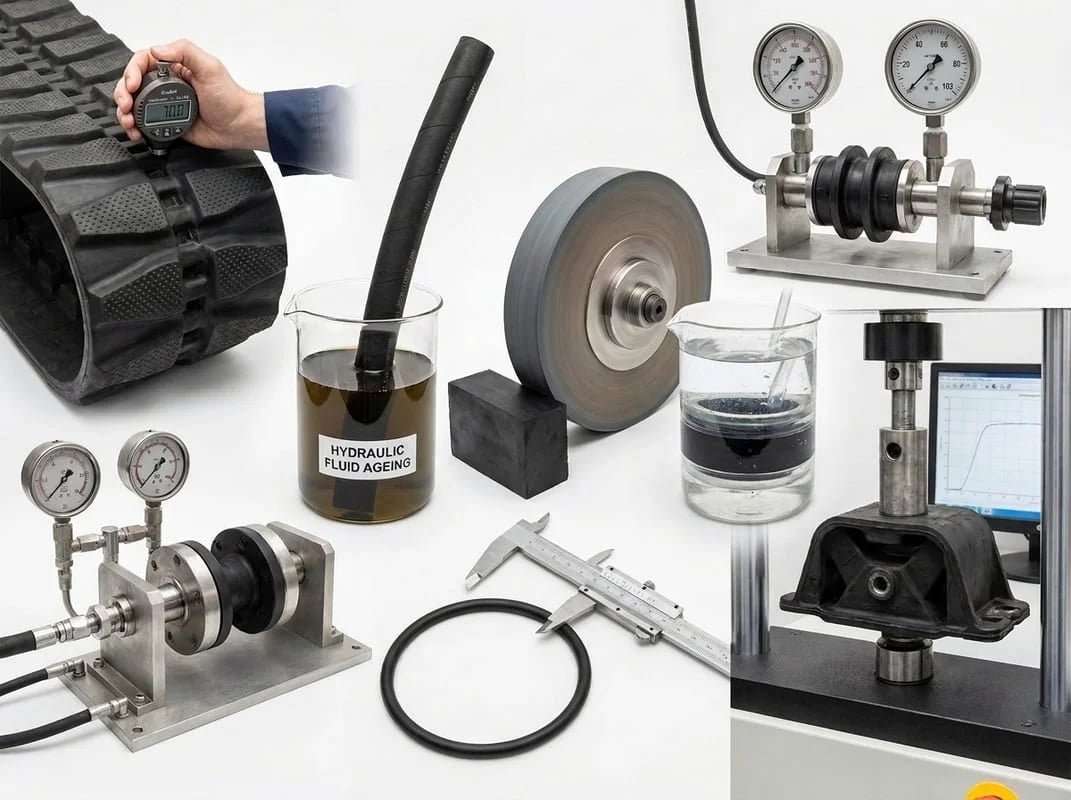

Which Material and Finished-Part Tests Should Be Included?
A useful validation plan follows the failure risk. Material coupons measure compound properties; finished-part and machine-interface tests show whether geometry, process and hardware work together. Passing hardness and tensile requirements does not prove hydraulic sealing, hose impulse life, vibration isolation, wear or bond durability.
| Risk or Property | Common Reference Direction | What the Specification Must Define |
|---|---|---|
| Hardness | ISO 48-4 / ASTM D2240 | Scale, nominal value, tolerance, conditioning, test piece and aged/original status. |
| Tensile / elongation | ISO 37 / ASTM D412 | Specimen, direction, minimum values and retained properties after aging. |
| Tear resistance | ISO 34-1 / ASTM D624 | Specimen type and relevance to installation, flexing or edge damage. |
| Compression set | ISO 815-1 / ASTM D395 | Compression, time, temperature, recovery and maximum result. |
| Heat aging | ISO 188 / ASTM D573 | Temperature, duration and permitted hardness/tensile/elongation change. |
| Liquid resistance | ISO 1817 / ASTM D471 | Exact fluid, temperature, time, specimen and permitted volume/mass/property change. |
| Ozone resistance | ISO 1431-1 / ASTM D1149 | Ozone concentration, strain, temperature, time and crack acceptance. |
| Low-temperature behavior | ISO 2921, ISO 812 or customer method as applicable | Whether the requirement concerns brittleness, retraction, flexibility or functional sealing. |
| Adhesion | ISO 813 / ASTM D429 or project-specific method | Substrate, peel/tension mode, aging, minimum force and failure mode. |
| Dynamic stiffness / damping | Customer-defined force-displacement or dynamic test | Static load, frequency, amplitude, shock, temperature, preload, direction and acceptance window. |
| Hydraulic hose performance | Applicable pressure, proof, burst, vacuum, impulse and ageing tests | Hose/fitting construction, crimp, installed routing, fluid, temperature, cycles and failure criteria. |
| Dimensions / appearance | Approved drawing and control plan | Critical characteristics, method, fixture, sampling, cavity and visual standard. |
| Machine-interface validation | Customer system or representative-hardware test | Leakage, pressure impulse, ingress, thermal cycling, vibration, movement, debris, pressure washing or wear as relevant. |
Test methods, editions, sample preparation, laboratory scope and acceptance values must be agreed for the project. Availability of specific in-house or third-party testing is to be confirmed before quotation.
Launch & Production Approval
What Should a Heavy-Equipment Quality and PPAP Plan Control?
When required, PPAP or a customer-specific first-article package demonstrates that the production process can consistently meet the engineering record and specification under actual production conditions. It is not a substitute for clear requirements. Submission level and required elements must be agreed before project timing and cost are committed.
Design Record & Revision
Use the approved drawing, specification, CAD revision and authorized deviations. Conflicting dimensions or outdated files must be resolved before tooling release.
Process Flow
Map incoming material, compound control, insert preparation, molding, extrusion, hose assembly or bonding, secondary operations, inspection, packaging and shipment.
PFMEA & Control Plan
Connect process failure risks to prevention, detection, reaction plans and responsible controls. Generic documents are weak if they ignore the actual geometry.
Measurement System
Soft-part gauges and methods require repeatability, reproducibility and suitable fixtures. Deformation under contact force can dominate the result.
Initial Dimensional Results
Report agreed characteristics by cavity when required, using the approved method and identifying sample, lot and tool status.
Material & Performance Results
Link test reports to the approved compound, production lot, specimen condition, fluid, pressure/load and specified test method.
Capability Evidence
Capability should be applied to stable, measurable characteristics with agreed sampling and method. It is not meaningful for every subjective rubber feature.
Master Sample & Boundary Samples
Retained samples can support appearance, flash and workmanship decisions when storage, approval and replacement rules are defined.
Packaging Approval
Packaging must prevent deformation, contamination, mixed lots and handling damage while supporting labels and line-side use.
Specifications & Compliance
Which Standards and Documents May Apply?
No single “heavy-equipment rubber standard” approves every part. Material classification, dimensions, hydraulic-hose requirements, test methods, quality submission, substance reporting and machine-interface validation are separate layers. The customer's drawing and supplier requirements normally determine which documents apply.
| Document Family | Typical Role | Important Limitation |
|---|---|---|
| SAE J200 / ASTM D2000 | Classification framework for vulcanized rubber material requirements | A callout must be interpreted correctly and supplemented with part-specific requirements where needed. |
| ISO 3302-1 | Dimensional tolerance classes for rubber products | Class and exceptions must be shown; it does not replace functional tolerance review. |
| ISO 3601 | O-ring dimensions, housings, tolerances and quality-related provisions | Applies to relevant O-rings, not every hydraulic or heavy-equipment rubber seal. |
| ISO 18752 or specified hose standard | Performance framework for applicable reinforced hydraulic hoses and assemblies | The exact class, grade, type, fittings, routing and machine-level safety requirements must be confirmed. |
| ISO / ASTM rubber test methods | Hardness, tensile, tear, compression set, heat aging, fluid and ozone tests | A method is incomplete without conditions and acceptance limits. |
| APQP / Control Plan / PPAP / FMEA / MSA / SPC when required | Quality planning, risk control, approval and measurement/process evidence | Edition, customer-specific requirements and submission scope must be agreed. |
| Material and substance declaration | Customer or market reporting for compound and component substances | Data format, ownership, deadline and reporting responsibility must be assigned before approval. |
| Machine or system specifications | Hydraulic, electrical, ingress, fire, safety and regional requirements for the complete equipment | A rubber material or part report does not establish compliance of the complete machine. |
| RoHS / REACH or other substance requirements | Regulatory or customer substance restrictions and declarations where applicable | Applicability and evidence must be confirmed; polymer family alone does not prove compliance. |
Repeat-Supply Stability
Which Changes Can Affect an Approved Heavy-Equipment Rubber Part?
An unchanged drawing does not guarantee an unchanged part. Compound ingredients, polymer source, cure package, reinforcement, hose fitting/crimp, production site, tooling, cavity, insert coating, adhesive, post-cure, trimming and packaging can change performance or assembly behavior.
| Potential Change | Possible Effect | Control Direction |
|---|---|---|
| Compound formulation or raw-material source | Fluid aging, hardness, modulus, cure, color, odor or process behavior | Define approved compound identity and notification/revalidation requirements. |
| Cure or post-cure cycle | Compression set, dimensions, volatiles and aged properties | Control process window and approval of significant changes. |
| Tool, cavity, hose line or production site | Dimensions, flash, flow, surface, reinforcement, crimp, shrinkage and capacity | Identify production source and determine dimensional or approval resubmission scope. |
| Insert material, coating or adhesive | Bond strength, corrosion, dimensions and load transfer | Control full insert specification, preparation and bond route. |
| Deflashing or secondary operation | Edge damage, cleanliness, surface and dimensions | Include secondary processes in flow, PFMEA and control plan. |
| Packaging or storage | Deformation, contamination, mixed lots, bloom or shelf condition | Approve packaging, label, storage and FIFO requirements. |
Sourcing Decision
How Should Purchasing Teams Evaluate a Heavy-Equipment Rubber Parts Supplier?
The strongest supplier is not simply the company quoting the lowest unit price or listing the most materials. Heavy-equipment sourcing requires evidence that the supplier can translate fluids, pressure, load, contamination and movement into a controlled compound, tool, reinforcement, process, inspection method and repeatable delivery plan.
Requirement Discipline
Does the supplier ask about machine system, exact fluid, pressure, temperature, load, movement, contamination, validation and annual volume before recommending a material?
Compound Control
Can it identify and maintain the approved formulation or purchased compound, including change notification and lot traceability?
DFM Capability
Can it discuss parting, flash, shrinkage, vents, ejection, inserts, tolerance priorities and measurement before tool release?
Tool Ownership & Maintenance
Are tool identification, cavities, maintenance, repair, storage and ownership responsibilities documented? Fully customer-paid tooling normally belongs to the customer unless agreed otherwise.
Inspection & Testing
Are methods suitable for soft parts, and are external laboratory needs, reports and acceptance criteria agreed?
Launch Documentation
Can the required first-article, APQP/PPAP, samples, timing and customer forms be supported for this exact project?
Capacity & Continuity
Are cavity plan, cycle, available equipment, backup arrangements and raw-material lead time realistic for annual demand?
Packaging & Logistics
Does the packaging protect shape and cleanliness while supporting labels, lot control, export shipment and line-side handling?
Corrective Action
Can the supplier contain suspect lots, trace cavities and batches, analyze failure evidence and implement verified corrective action?
Purchasing Guide
What Information Should You Send for a Heavy-Equipment Rubber Parts RFQ?
A complete RFQ reduces quotation assumptions and later engineering changes. If some information is unavailable, identify it as open rather than replacing it with a generic material or temperature range.
| RFQ Item | Information to Provide | Why It Matters |
|---|---|---|
| Project identity | Part name/number, machine model or module, revision and confidentiality requirements | Prevents file and requirement mismatch. |
| Geometry | 2D drawing, 3D model or physical sample with mating-interface data | Defines tooling, shrinkage, parting, assembly and inspection. |
| Function & location | What the part does, machine system and exact installed position | Establishes dominant exposure, hardware interface and failure consequence. |
| Media | Exact hydraulic fluid, oil, fuel, coolant, grease, gas, cleaner or contaminant | Controls compound selection, hose construction and ageing tests. |
| Temperature | Cold start, continuous, peak, peak duration, fluid and thermal cycles | Separates storage, survival and functional sealing or movement conditions. |
| Pressure / load / motion | Working and peak pressure, impulse, vacuum, forces, direction, impact, vibration, speed, stroke and cycles | Controls geometry, hardness/modulus, reinforcement, fittings, bond and fatigue review. |
| Material requirement | Exact specification/callout, hardness, color, cure or approved source if fixed | Separates mandatory material requirements from supplier selection support. |
| Critical characteristics | Key dimensions, tolerance standard, special characteristics and visual limits | Guides tool construction, control plan and measurement. |
| Validation | Material, fluid, pressure/impulse, leakage, vibration, abrasion, bond, durability and acceptance criteria | Allows scope, sample quantity, fixtures, laboratory route, cost and timing to be planned. |
| Quality submission | First article, APQP/PPAP level if required, customer forms, material reporting and deadline | Documentation can affect launch timing as much as tooling. |
| Quantity | Prototype, sample, order quantity, annual volume and program life | Determines cavity count, process economics, capacity and material planning. |
| Timing | Tool kickoff, sample, validation, approval, production and delivery milestones | Creates a realistic critical path and identifies long-lead items. |
| Packaging & logistics | Pack quantity, labels, cleanliness, shelf/storage, delivery terms and destination | Prevents deformation, contamination and receiving problems. |
Heavy Equipment Rubber Parts FAQ
Frequently Asked Questions About Construction and Heavy-Equipment Rubber Parts
These answers provide engineering and purchasing direction. Final material, dimensions, testing, documentation, MOQ and lead time must be confirmed for the specific project.
What are the most common rubber parts used in heavy equipment?
Common groups include hydraulic seals, gaskets, O-rings, wipers, hoses, couplers, grommets, bushings, engine and cab mounts, boots, bellows, diaphragms, accumulator parts, track pads, rollers, bumpers and rubber-to-metal bonded components. Their correct classification depends on function and machine system.
Which rubber is best for construction and heavy equipment?
There is no universal best rubber. NBR, HNBR, EPDM, CR, VMQ, FKM, FVMQ, ACM, AEM, natural rubber, IIR and PU each fit different combinations of hydraulic fluid, temperature, pressure, motion, weather, abrasion, load and cost. Select and validate the complete compound for the application.
Can EPDM be used with petroleum-based hydraulic oil?
EPDM is generally not selected for petroleum-based hydraulic oils or hydrocarbon fuels because unsuitable swelling and property change can occur. It is commonly considered for weather, water and coolant-related duties using the correct grade. Identify the exact fluid before choosing the compound.
What is the difference between a heavy-equipment bushing and a mount?
Both can control movement, shock and vibration. A bushing commonly works around a sleeve, pin or pivot, while a mount supports an engine, cab or equipment assembly between structures. Actual geometry and load path vary, so stiffness, preload, travel and bonded interfaces should be defined rather than relying on the name.
Can heavy-equipment rubber parts be developed from a physical sample?
Yes, a sample can support geometry review and reverse engineering, but it may be worn, swollen, abraded or permanently compressed. Material identity, reinforcement, original dimensions, tolerances, machine conditions and approval requirements should be confirmed separately.
Can you make rubber-to-metal parts for heavy equipment?
Rubber-to-metal structures can be reviewed for bushings, engine and cab mounts, isolators, rollers, pads and other suitable components. Provide the insert drawing, material/coating, bond area, load direction, environment, corrosion and test requirements.
Is Shore A hardness enough to specify a mount, seal or bushing?
No. Shore A indicates indentation hardness under a defined test method. It does not by itself define dynamic stiffness, compression set, damping, hydraulic-fluid resistance, extrusion resistance, tear strength or fatigue life. Those properties require separate specification and validation.
Which tolerances apply to molded heavy-equipment rubber parts?
ISO 3302-1 is a common reference, but the drawing must state the class and any tighter functional dimensions. O-rings may use ISO 3601 or another customer standard. Achievable tolerance depends on geometry, size, compound, tool and measurement method.
Can a cab or enclosure gasket guarantee dustproof or waterproof performance?
No. Ingress performance is a result of the complete assembly, including gasket, frame or flange stiffness, flatness, joints, latches, fasteners, compression, vents, drains and installation. The complete cab or enclosure must be validated to the required method.
How are rubber compounds validated against hydraulic fluids?
The exact hydraulic fluid, additive package, temperature and exposure time are defined, then changes such as volume, mass, hardness, tensile and elongation are measured as required. Finished seals, hoses or diaphragms may also need leakage, impulse or durability testing after exposure.
Can PPAP be used for heavy-equipment rubber parts?
Yes, when required by the customer. PPAP can demonstrate that engineering records and specification requirements are consistently met by the actual production process. Other projects may use first-article or customer-specific approval packages instead.
Is PPAP Level 3 available?
PPAP Level 3 requirements can be reviewed when requested. The exact document set, customer forms, sample quantity, tests, timing and commercial scope must be confirmed before quotation and project approval.
Does a higher-pressure hydraulic hose automatically fit the application?
No. A higher pressure rating does not prove compatible fittings, crimp, outside diameter, bend radius, impulse grade, fluid compatibility, routing or dynamic behavior. Confirm the complete hose assembly and the lowest-rated component.
Can one material specification be used for every machine location?
No. Hydraulic, engine, undercarriage, cab, fuel, electrical and attachment locations impose different pressure, thermal, chemical, mechanical, abrasion and cleanliness requirements. Even similar parts may need different compounds or validation plans.
How do you prevent variation between rubber production batches?
Control the approved compound and raw materials, mixing or incoming lot, cure process, tool/cavity, secondary operations, measurement method, sampling, traceability and reaction plan. Critical controls should be linked through the process flow, PFMEA and control plan.
How should heavy-equipment rubber parts be packaged?
Packaging should prevent deformation, hydraulic contamination, uncapped hose ends, adhesion, mixed lots, UV/heat exposure and handling damage while meeting label and pack-quantity requirements. Large seals, hoses and soft profiles may need shape-supporting packaging.
What is the MOQ and lead time for custom heavy-equipment rubber parts?
MOQ and lead time depend on geometry, material, tooling, cavity count, validation, documentation, order quantity and current production planning. They are available upon request after the project information is reviewed.
What information is needed for a reliable quotation?
Send the drawing, 3D model or sample; machine system and part function; exact hydraulic fluid or other media; temperature; pressure, load, motion and contamination; material specification; tolerances; validation and quality needs; trial and annual quantities; timing; packaging and delivery requirements.
Custom Construction and Heavy Equipment Rubber Parts
Have a hydraulic seal, hose, bellows, mount, bushing, track pad or bonded part to develop?
Send the available drawing, 3D file or sample together with the machine system, exact fluid or other media, temperatures, pressure or load, motion, contamination, material specification, annual quantity, validation plan and project timing. We can review the material direction, manufacturing feasibility and information still needed before quotation.
