Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer

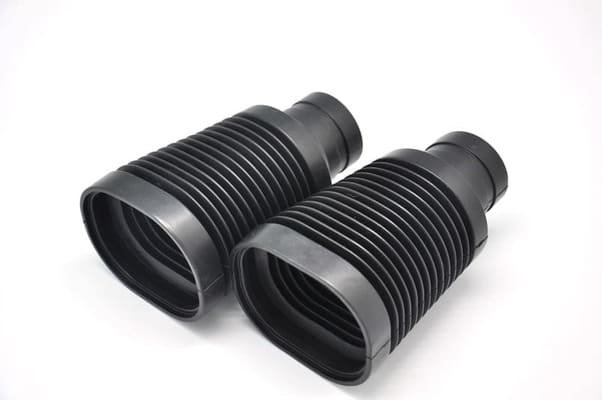

This strut rubber dust boot is a molded EPDM bellows for protecting shock absorber piston rods and oil-seal areas from road contaminants. It features a circular top spigot, a reinforced oval or rectangular base opening and a multi-convolution body. Custom lengths, opening dimensions, fold counts and packaging options are available.
Product Overview
The strut shock absorber rubber dust boot is installed around the exposed piston-rod section of a suspension damper. Its multi-convolution bellows body extends and compresses as the suspension moves through compression and rebound travel. The circular top spigot fits the piston rod or upper-mount interface, depending on the vehicle design. The reinforced oval or rectangular lower opening fits over the strut body, bump-stop seat or related mounting profile. The EPDM compound is selected for external underbody exposure to ozone, UV, water, road salt and road grit. Dimensions should be confirmed according to the strut assembly, piston-rod interface and required suspension stroke.
Key Features
- Multi-convolution rubber bellows body for controlled extension and compression during suspension movement.
- Designed to help protect the shock absorber piston rod and oil-seal area from external contaminants.
- Circular close-fit top spigot for the piston rod or upper-mount interface.
- Reinforced oval or rectangular base opening for compatible strut and bump-stop seat profiles.
- EPDM rubber compound for ozone, UV, water, road salt and road-grit exposure.
- Standard hardness range: 50–60 Shore A.
- Typical bellows structure: 12–15 convolutions, depending on the vehicle application.
- Custom length, opening dimensions, convolution count and packaging are available upon request.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Strut Shock Absorber Rubber Dust Boot |
| Material | EPDM rubber |
| Hardness | 50–60 Shore A |
| Color | Black |

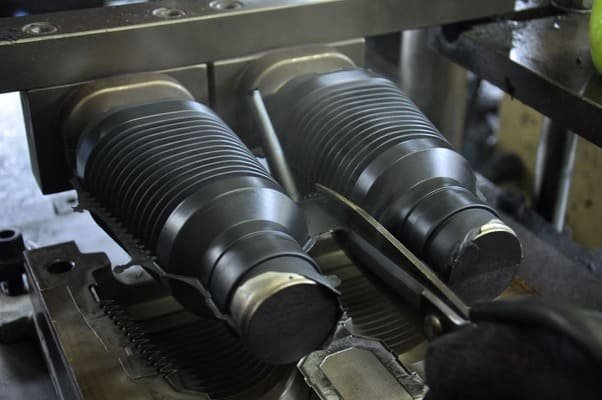

| Manufacturing Process | Rubber molding |
| Body Profile | Multi-convolution bellows body |
| Top End | Circular close-fit spigot |
| Base End | Oval or rectangular large-diameter opening with reinforced flange |
| Temperature Range | -45°C to +120°C |
| Resistance | Ozone, UV exposure, road salt, water and road grit |
| Supply Configuration | Sold as a pair: left and right boots |
| Application | Shock absorber piston-rod and oil-seal protection in automotive suspension assemblies |
| Customization | Overall length, compressed length, extended length, convolution count, top-spigot ID, base-opening profile, wall thickness, dimensional tolerance and packaging can be reviewed according to the vehicle suspension requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Product Structure
Multi-Convolution Bellows Body
The molded bellows body includes a series of flexible convolutions that extend and compress with the shock absorber stroke. The ribbed structure helps distribute flexing across multiple folds rather than concentrating movement at one point. The number of convolutions, fold pitch, overall length and wall thickness should be matched to the suspension travel and available installation space.
Circular Top Spigot
The upper end of the strut shock absorber rubber dust boot terminates in a circular spigot. This interface fits around the piston rod or related upper-mount structure, depending on the suspension design. The inner diameter and wall thickness should provide a secure fit without interfering with normal strut movement.
Reinforced Oval or Rectangular Base Opening
The lower opening has an oval or rectangular profile for compatible strut-body, spring-seat or bump-stop arrangements. The reinforced flange helps maintain the base shape during repeated suspension movement. The opening profile should be confirmed according to the original boot, suspension drawing or physical sample.
Applications
The strut shock absorber rubber dust boot is suitable for front strut and compatible rear shock absorber assemblies in passenger cars, SUVs, crossovers and related vehicle platforms. It encloses the exposed piston-rod area and helps reduce direct contact with road spray, mud, salt and abrasive particles during vehicle operation. The bellows body follows suspension travel while the upper and lower interfaces maintain coverage around the installation area. The final design should be matched to the strut-body profile, top interface, bump-stop arrangement and suspension stroke. Replacement requirements should be reviewed using the vehicle model, strut part number or original boot sample.
Customization Options
Custom strut shock absorber rubber dust boots can be developed according to a 2D drawing, 3D model, OEM part number or physical sample. Buyers can specify the overall length, compressed length, extended length, number of convolutions, fold pitch, top-spigot ID, base-opening dimensions, reinforced-flange geometry, wall thickness, Shore A hardness and dimensional tolerance. Please provide the vehicle make, model, year, strut part number, installation position and suspension-stroke requirements. Packaging for OEM supply and aftermarket replacement kits can also be reviewed. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing, OEM part number or physical sample
- Vehicle make, model and year
- Strut or shock absorber part number
- Front or rear suspension installation position
- Overall length, compressed length and extended length
- Top-spigot inner diameter
- Base-opening dimensions and profile
- Number of convolutions
- Required suspension stroke
- Rubber material
- Shore A hardness
- Operating temperature
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is a strut shock absorber rubber dust boot used for?
A strut shock absorber rubber dust boot encloses the exposed piston-rod area of a suspension damper. It helps reduce contact with dust, mud, water, road salt and abrasive grit while extending and compressing with the suspension movement.
Why does this dust boot use a multi-convolution bellows profile?
The multi-convolution bellows profile allows the boot to extend and compress across the required suspension stroke. The fold geometry helps distribute repeated movement across the bellows body and supports controlled deformation during compression and rebound cycles.
Why does the base opening have an oval or rectangular profile?
The lower mounting area of some strut assemblies is not circular. The boot may need to fit over a strut body, spring-seat structure or bump-stop seat with an oval or rectangular profile. The base dimensions should be confirmed against the original component.
Can this rubber dust boot be supplied without a bump stop?
Yes. The strut shock absorber rubber dust boot is supplied as a standalone bellows component. The bump stop is a separate part in many suspension assemblies. Buyers should confirm whether the replacement kit requires a dust boot only or a dust boot and bump-stop combination.
Why is EPDM used for this application?
EPDM rubber is suitable for external underbody protection because it provides resistance to ozone, UV exposure, road salt, water and road spray. The specified operating temperature range for this dust boot is -45°C to +120°C.
How should buyers confirm the correct replacement dimensions?
Please provide the vehicle model, strut part number, overall boot length, compressed length, extended length, top-spigot ID and base-opening dimensions. A physical sample is recommended when the original technical drawing or OEM specification is not available.
Request a Custom Quote
Send your vehicle model, strut part number, 2D drawing, 3D model or physical sample for a technical review of your strut shock absorber rubber dust boot. Please include the top-spigot ID, base-opening profile, suspension stroke, required quantity, estimated annual volume and packaging requirements.
