Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
Silicone massager node cap is an internal reinforced flexible cushioning shell for smart massagers, percussion devices and head massage instruments. It features three concentric reinforcement rings, 24 radial ribs and 6 oblong mounting slots. Material, hardness, color, rib layout, mounting structure, tolerance and packaging can be customized according to drawings or samples.
The silicone massager node cap is a precision molded flexible cushioning shell used inside smart massagers, percussion massagers and head massage devices. Its internal structure includes multi-tier concentric reinforcement rings, 24 radial ribs and 6 oblong mounting slots. The design supports soft skin-contact cushioning, rebound recovery, anti-twist assembly and stable retention during high-frequency movement.
Precision Engineered Silicone Massager Head Cap — Internal Ribbed Soft-Node Cushioning Shell

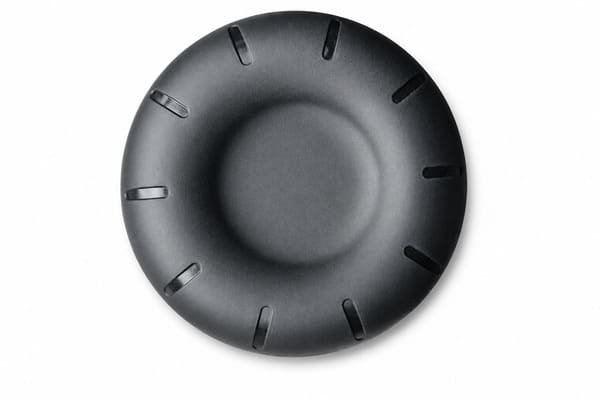

The Precision Engineered Silicone Massager Head Cap is an internally ribbed, liquid silicone rubber (LSR) cushioning shell designed for the contact head of percussion massagers, fascia guns, and head massage devices. Viewed from its internal underside, the design reveals a highly engineered elastomer structure with a reference outer diameter of Ø94mm, built to balance skin-soft external cushioning with strong internal mechanical support.
Key Specifications
| Parameter | Typical Specification |
|---|---|
| Product Type | Internal ribbed silicone massager node cap / cushioning shell |
| Reference Outer Diameter | Ø94 mm |
| Internal Structure | 3-tier concentric rings + 24 radiating ribs |
| Mounting Feature | 6 equidistant oblong alignment slots on outer flange |
| Material | Skin-safe medical/food-grade liquid silicone rubber (LSR) |
| Hardness | 30-50 Shore A |
| Compliance | RoHS, REACH compliant |
| Fatigue Rating | Rated for 500,000+ dynamic percussion cycles |
| Molding Process | Precision molding, flash-free finish |
Core Geometry and Internal Structural Design
Radiating Multi-Tier Rib Reinforcement
The inner chamber wall is engineered with three precise concentric rings combined with 24 radiating longitudinal ribs extending from the center hub to the outer wall. As the “soft shell” component that directly contacts the skin during use, this inner wall must deliver near-perfect mechanical support: the grid-like rib network ensures the shell retains silicone’s natural flexible cushioning while rapidly rebounding to its original shape after each high-frequency compression, strike, or torsional load, preventing collapse, deformation, or permanent creasing under prolonged fatigue loading.
Outer Mounting Flange and Alignment Slots
Along the outermost flat mounting flange, six oblong alignment slots are positioned at equal intervals around the circumference. These slots are specifically designed to seat the cushioning shell onto the massager’s rigid plastic actuator plate or drive mechanism, where mechanical retention clips or self-tapping screws lock the shell in place under interference fit. This mounting design prevents the shell from detaching or twisting out of alignment during the high-frequency vibration and rotation generated by the massage motor.
Material and Performance Requirements
Because this cap makes direct, repeated contact with human skin under dynamic high-frequency loading, its material selection must meet a demanding set of criteria.
Skin-Safe Medical/Food-Grade Silicone
The compound meets RoHS and REACH standards, is completely non-toxic and non-sensitizing to human skin, and resists degradation or surface tackiness even with prolonged exposure to sweat, massage oils, or skincare products.
Superior Tear Strength and Flex Fatigue Resistance
Percussion massagers and kneading devices operate at very high vibration frequencies, requiring the material to withstand hundreds of thousands of high-frequency stretch-compression cycles without developing micro-cracks or fractures at the rib roots or curved transition points.
Low Hardness with High Rebound
A soft compound in the 30-50 Shore A range is typically selected, allowing the internal ribs to provide vertical transmission support while keeping the outer contact surface as soft and skin-like as standard cushioning, avoiding the sharp, jarring sensation associated with harder impact surfaces.
Manufacturing and Quality Standards
High-Precision Injection Molding
The 24 ribs maintain remarkably uniform wall thickness, with parting lines and ejector marks kept nearly invisible. Because silicone has high viscosity and is difficult to demold, this kind of deep-cavity, dense rib network places extreme demands on mold venting design, LSR flow channel balancing, and vulcanization timing control.
Flash-Free Finish
Mounting holes and edge transitions are exceptionally clean, ensuring an airtight fit against the plastic housing on the assembly line. This tight fit effectively blocks external dandruff, hair, oils, or liquids from penetrating into the massager’s motor bearing area.
Technical Specifications for OEM/ODM Sourcing
- Advanced Ribbed Geometries: The inner chamber is structurally reinforced with a multi-tier concentric ring and 24 radiating ribs, delivering a perfect balance of soft cutaneous cushioning and high mechanical rebound elasticity without deformation.
- Integrated Anti-Twist Mounts: Features 6 equidistant oblong alignment slots along the outer rim for reliable mechanical retention onto the hard plastic actuator, preventing dislodgement under high-frequency rotational torques.
- High-Flex LSR Compound: Injection molded from hypoallergenic, skin-safe liquid silicone rubber (LSR), offering superior flex fatigue and tear resistance to withstand over 500,000 dynamic percussion cycles.
- Flawless Flash-Free Molding: Exceptionally uniform rib thickness with zero micro-voids, engineered to match the highest assembly standards in high-end personal care and wellness appliances.
Common Applications
- Percussion massage gun contact head cushioning shells.
- Fascia gun soft-node attachment caps.
- Electric head massager soft cushioning components.
- Handheld wellness device vibration-dampening contact caps.
- General personal care appliance soft-touch structural shells.
Sizing and Selection Guide
Selection should start from the reference outer diameter, Ø94mm in this configuration, matched against the actuator plate or drive mechanism the shell will mount onto. The number and spacing of the oblong mounting slots (6 in this design) should align precisely with the corresponding clip or screw positions on the plastic actuator to ensure secure, twist-free retention during operation. Shore hardness selection (typically 30-50 Shore A) should be balanced against the desired skin-contact softness versus the internal structural rigidity needed to prevent rib collapse under repeated percussion loading.
Custom Manufacturing Options
- Custom outer diameter and internal rib count/pattern beyond the standard 24-rib, Ø94mm reference.
- Custom Shore hardness within the 30-50A range or beyond, per application requirement.
- Custom mounting slot count, shape, and spacing for different actuator designs.
- Custom color and surface texture (matte, glossy, or textured skin-contact finish).
- OEM/ODM tooling development and private-label packaging.
FAQ
What is a silicone massager node cap used for?
A silicone massager node cap is used as a flexible cushioning shell in smart massagers, percussion massagers and head massage devices. It helps provide soft contact, rebound recovery, vibration transfer and protective cushioning between the external touch surface and the internal actuator structure.
Why does the inner structure use radial ribs and concentric rings?
Radial ribs and concentric rings help support the silicone shell during repeated compression, vibration or rotational movement. The structure improves rebound behavior and helps prevent collapse, deformation or dead folds when the soft cap is exposed to dynamic mechanical loading.
Can the rib layout and mounting slots be customized?
Yes. Rib quantity, rib thickness, concentric ring layout, oblong mounting slot size, slot position and flange geometry can be customized according to the actuator base and assembly method. Buyers should provide drawings, 3D models or samples before tooling review.
What Shore A hardness is suitable for this type of silicone cushioning shell?
A 30–50 Shore A range can be reviewed for many soft massager cushioning applications, depending on skin feel, compression force, rebound requirement and actuator support. The final hardness should be confirmed through sample testing under actual device operating conditions.
Can this part be made from skin-contact silicone?
Yes. Skin-contact silicone material options can be reviewed according to the application, market and documentation requirements. Buyers should specify RoHS, REACH or other required documentation before quotation. Material approval should also consider massage oil, sweat, cleaning agents and long-term contact conditions.
Are samples available before mass production?
Samples are available upon request. Sample preparation depends on confirmed geometry, silicone compound, hardness, color, tooling status and inspection requirements. A 3D model, actuator sample or device assembly drawing helps verify mounting fit, rebound behavior and assembly stability before mass production.
Request a Custom Quote
Send your silicone massager node cap drawing, 3D model, actuator sample or device assembly file for review. Please include outer dimensions, rib structure, slot layout, wall thickness, silicone material, Shore A hardness, color, dynamic motion condition, quantity, annual demand and inspection requirements.
