Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
Rubber dust cover bellows protect moving parts from dust, debris, moisture, and light chemical exposure while allowing controlled movement and flexible sealing.

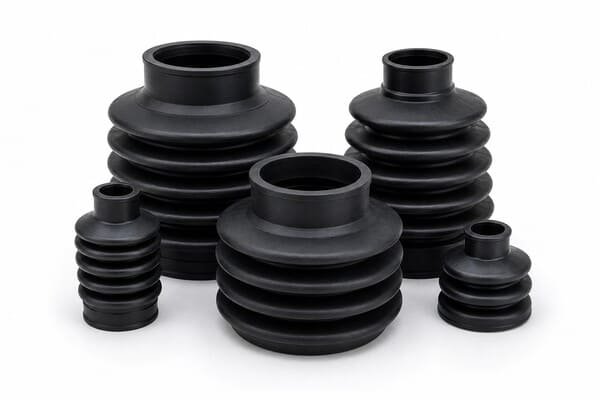

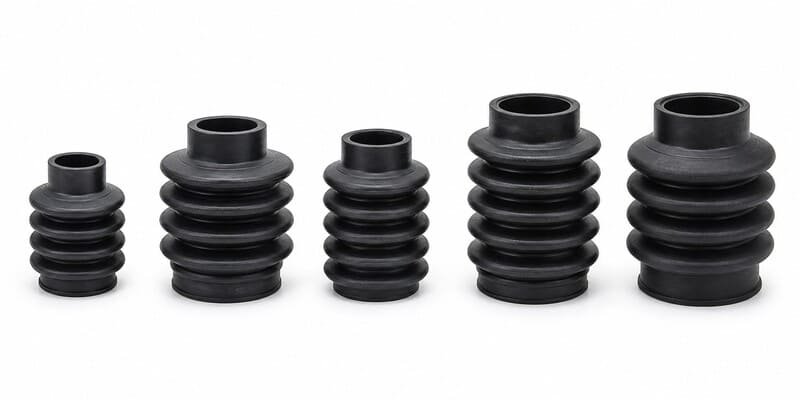

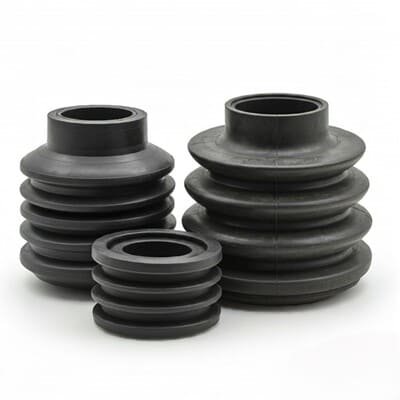

Rubber Dust Cover Bellows for Sealing and Component Protection
Product Overview
Rubber dust cover bellows are flexible protective components used to shield moving parts from dust, dirt, moisture, and external contamination. They are commonly installed over rods, shafts, guide elements, cylinders, and jointed mechanical parts where controlled movement and reliable sealing are both required.
The main function of a rubber bellows cover is to extend component service life by reducing direct exposure to abrasive particles and environmental influence. The correct bellows structure depends on stroke length, installation method, compression ratio, movement frequency, working temperature, and media exposure.
What Are Rubber Dust Cover Bellows?
Rubber dust cover bellows — also called dust boots, protective bellows, gaiters, or rubber sleeves — are convoluted or corrugated elastomeric covers that fit over moving parts such as shafts, rods, ball screws, CV joints, and actuator stems. Their accordion-like geometry enables them to compress, extend, and flex in multiple directions without losing their protective seal. When dust, grit, coolant, or moisture infiltrates unprotected components, it causes abrasion, corrosion, and accelerated fatigue — rubber bellows eliminate this failure mode at minimal cost compared to the components they protect.
Key Technical Specifications
| Parameter | Range / Value |
|---|---|
| Materials | EPDM, NBR, CR (Neoprene), Silicone (VMQ), Viton (FKM), HNBR, NR |
| Hardness | 40–80 Shore A |
| Temperature Range | -65°C to +230°C (material dependent) |
| Inside Diameter | 4 mm to 500 mm+ |
| Compressed / Extended Length | Custom per application |
| Wall Thickness | 1.0 mm – 5.0 mm |
| Convolution Count | 2 to 20+ |
| Shape | Round, conical, cylindrical, spherical, rectangular, irregular |
| Color | Black (standard); grey, blue, red, white available |
| Compliance | FDA, RoHS, REACH; IATF 16949 automotive grade available |
| Manufacturing Process | Compression molding, transfer molding, extrusion |
| MOQ | 50–100 pcs standard; prototype quantities available |
Product Types
- Conical Dust Boots (Tapered Bellows)
The most common profile — wider at the mounting base, tapering to a narrow rod or shaft end. Provides dust and grease sealing at CV joints, suspension ball joints, tie rod ends, shock absorber rods, and brake caliper guide pins. Available with single-cuff, double-cuff, or integral flange ends. - Cylindrical Multi-Convolution Protective Sleeves
Straight-bore design with uniform parallel convolutions for maximum axial compression ratio. Ideal for lead screw protection, pneumatic and hydraulic cylinder rod covers, and linear actuator sleeves. Compression ratios of 4:1 to 8:1 achievable in custom designs. - Spherical / Bulbous Dust Boots
Barrel or lantern-shaped bellows profile that accommodates high angular deflection — typical for ball joint boots, steering rack pivot covers, and universal joint protection. The inflated profile maintains effective sealing across a wide articulation angle. - Corrugated Rubber Sleeves (Accordion Tubes)
Continuous corrugated tubing design used as flexible, protective conduit over cables, hoses, and rods. Resists abrasion and external impacts while allowing bending in multiple planes. - Rectangular / Square Protective Bellows
Non-circular cross-section bellows for CNC machine tool guideways and ball screw axes. Available in rubber or rubber-coated fabric composites depending on chip load severity. - Shift Lever & Joystick Gaiters
Conical or tapered boots for gear selectors, hydraulic control levers, and joystick bases in vehicles and construction equipment. Combine functional dust exclusion with aesthetic finish.
Material Selection Guide
| Material | Temp. Range | Key Properties | Best Applications |
|---|---|---|---|
| EPDM | -50°C to +150°C | Ozone, UV, steam, hot water resistant | HVAC, outdoor, water systems |
| NBR (Nitrile) | -30°C to +110°C | Excellent oil and fuel resistance | Automotive, hydraulic, fuel systems |
| CR (Neoprene) | -35°C to +100°C | Good weathering, ozone, mild chemicals | General industrial, refrigeration |
| Silicone (VMQ) | -65°C to +230°C | Extreme temperature, FDA grade | Food, pharma, high/low temp |
| Viton (FKM) | -20°C to +200°C | Chemical resistance, fuel, solvents | Oil & gas, chemical processing |
| HNBR | -30°C to +150°C | High-pressure oils, H₂S environments | Automotive drivetrain, power steering |
| NR (Natural) | -50°C to +70°C | High elasticity, tear resistance | Water, mining, general protection |
Industries & Applications
- Automotive & Commercial Vehicles — CV joint boots, shock absorber dust covers, rack & pinion gaiters, ball joint boots, brake caliper sleeves
- CNC Machine Tools & Machining Centers — Lead screw and ball screw protection, X/Y/Z axis guideway covers, spindle sleeves
- Hydraulic & Pneumatic Systems — Cylinder rod dust boots, actuator protection sleeves, valve stem covers
- Agricultural & Construction Equipment — Pivot joint boots, linkage covers, cylinder protective sleeves
- Industrial Automation & Robotics — Linear guide protection, servo actuator sleeves, cable drag chain boots
- Motorcycles & Powersports — Fork dust seals, telelever boots, swingarm pivot gaiters
- Medical & Laboratory Equipment — Dust-sealed column covers, lift mechanism boots, joystick gaiters
- Semiconductor & Electronics Manufacturing — Anti-contamination covers for precision linear motion systems
Customization Options
- Geometry — Any ID, OD, compressed length, extended length, wall thickness, and convolution profile
- End fittings — Plain cuff, flanged, grooved retention, threaded metal insert, rubber-to-metal bonded
- Compound — All major elastomers; FDA/food grade, anti-static, fire-retardant, and low-temperature grades available
- Color coding — Custom colors for system identification or brand matching
- Reinforcement — Fabric-reinforced wall construction for high-pressure or high-impact environments
- Surface finish — Smooth bore for low-friction sliding; textured exterior for grip or abrasion resistance
Performance Benefits
- Extended component life — Exclusion of abrasive grit, metal chips, and moisture prevents premature wear on precision surfaces
- Reduced maintenance costs — Fewer replacements of expensive shafts, ball screws, and joint assemblies
- Improved machine uptime — Protection against contamination-induced failures reduces unplanned downtime
- Dynamic flexibility — Accommodates axial, radial, and angular movement without seal breakage
- Grease retention — Sealed bellows keep lubricants in place, reducing re-greasing intervals
- Operator safety — Covers pinch points and rotating components, preventing personnel contact with hazardous moving parts
- Aesthetic finish — Conceals mechanical components for a clean, professional equipment appearance
Why Source from Julong Rubber?
- ✅ In-house mold fabrication — 7–15 day tooling lead time, no third-party delays
- ✅ ISO 9001:2015 certified manufacturing and inspection processes
- ✅ IATF 16949 capable for automotive OEM supply chain requirements
- ✅ Full elastomer range — all compounds compounded and tested in-house
- ✅ Low MOQ — from 50 pcs for standard molds; prototype samples available
- ✅ FDA / RoHS / REACH compliant grades on request
- ✅ Global logistics — DDP/DAP Europe, North America, Middle East; air and sea freight
- ✅ English-speaking technical team — RFQ response within 24 hours
How to Order / Request a Quote
Provide the following to receive a fast, accurate quotation:
- Drawing or sample — PDF, DXF, DWG, STEP file, or physical sample
- Key dimensions — ID, OD, compressed/extended length, wall thickness, convolution count
- Material — specify compound, or describe operating media, temperature, and pressure
- End fitting type — plain, flanged, grooved, metal-bonded
- Required quantity and target delivery
- Compliance requirements — FDA, automotive spec, RoHS, etc.
FAQ
▼ Can you produce rubber bellows based on our drawing or sample?
Yes. Custom production can be arranged based on 2D drawings, 3D files, existing samples, or actual installation requirements.
▼ Which rubber material is suitable for dust cover bellows?
The material depends on the working environment. NBR is often selected for oil resistance, EPDM for weather and ozone resistance, and silicone for higher temperature conditions.
▼ Can the bellows be made for repeated compression and extension?
Yes. The fold shape, wall thickness, and rubber compound can be adjusted according to movement stroke and operating frequency.
▼ Can you customize the opening size and mounting ends?
Yes. The opening diameter, lip profile, flange structure, and fixing method can all be customized to match the assembly design.
Request a Custom Quote
If you need rubber dust cover bellows for sealing and component protection, you can send the drawing, sample, or working condition details for review. Material selection, structure design, and production recommendations can then be matched to the actual application.
