Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer

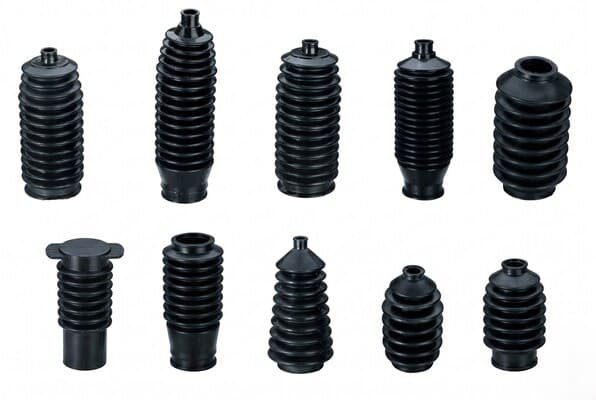

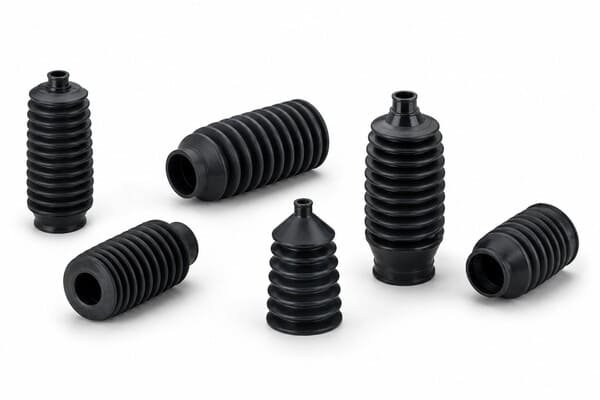

Rubber dust boots, bellows and CV joint covers are flexible molded components for protecting moving mechanical joints from dust, water, road salt, grease loss and debris. Available materials include CR, NBR, EPDM, TPE and TPU. Custom ID1, ID2, length, convolution geometry, cuffs, clamp grooves, hardness levels and packaging options are available.
Rubber dust boots, bellows and CV joint covers are flexible molded components designed to protect moving mechanical joints from dust, water, road salt, grease loss and external debris. Available materials include CR, NBR, EPDM, TPE and TPU. Small-end ID, large-end ID, free length, convolution profile and Shore A hardness can be customized according to the joint geometry and movement range.
Product Overview
Rubber dust boots, bellows and CV joint covers provide dynamic protection for moving shafts, joints, rods and linkages. Their corrugated structure allows controlled axial extension, compression and angular movement while maintaining coverage around the protected interface. Reinforced cuffs at both ends provide secure clamping surfaces for compatible retaining bands or hose clamps. The required profile should be selected according to the small-end ID, large-end ID, free length, compressed length, extended length and articulation angle. Material selection depends on grease contact, hydraulic-fluid exposure, ozone, UV, road salt, temperature and movement frequency. Custom products can be reviewed according to 2D drawings, 3D models or physical samples.
Key Features
- Corrugated bellows profile supports axial expansion, compression and angular displacement.
- Suitable for CV joints, steering systems, hydraulic rods, robotic joints and industrial linkages.
- Dual-diameter cuffs provide defined interfaces for shafts, housings and retaining clamps.
- Reinforced cuff geometry can be matched to stainless-steel ear clamps or band clamps.
- Uniform wall thickness supports consistent flexing across the convolution profile.
- CR, NBR, EPDM, TPE and TPU material options are available according to the application environment.
- Custom ID1, ID2, length, wall thickness, convolution count and Shore A hardness are available.
- Prototype samples, dimensional inspection requirements and packaging options can be reviewed upon request.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Small-End Inner Diameter (ID1) | Customizable from 10 mm to 150 mm |
| Large-End Inner Diameter (ID2) | Customizable from 20 mm to 300 mm |
| Free / Extended Length | 50 mm to 1000+ mm, depending on the convolution profile |
| Compressed Length | Available upon request |
| Maximum Outer Diameter (OD) | Available upon request |
| Wall Thickness | Available upon request |
| Convolution Count | Available according to drawing |
| Convolution Pitch | Available according to drawing |
| Cuff Groove Dimensions | Available according to clamp requirements |
| Required Articulation Angle | Available according to the application conditions |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Rubber Dust Boots, Bellows and CV Joint Covers |
| Material | CR, NBR, EPDM, TPE or TPU. Material selection depends on the application conditions. |
| Hardness | 40–80 Shore A; 55–65 Shore A is commonly reviewed for flexible bellows applications |
| Color | Black; custom colors are available upon request |
| Manufacturing Process | Rubber injection molding, compression molding or TPE blow molding, depending on the material and product structure |
| Body Profile | Multi-convolution flexible bellows with dual-diameter end cuffs |
| Dynamic Flex Requirements | Cycle-life requirements should be confirmed according to the material, stroke length, articulation angle and validation method |
| Operating Temperature | Application-dependent; material options can be reviewed for operating conditions from -50°C to +150°C |
| Application | Automotive drivetrain systems, steering joints, hydraulic rods, industrial machinery and robotic assemblies |
| Customization | Small-end ID, large-end ID, free length, compressed length, extended length, convolution count, wall thickness, cuff geometry, clamp groove, material, hardness, dimensional tolerance and packaging can be reviewed according to the drawing. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | RoHS and REACH options are available for applicable compounds. Documentation is available upon request. |
Material Selection Guide
| Material Type | Key Performance Characteristics | Recommended Applications | Compliance Options |
|---|---|---|---|
| CR (Chloroprene / Neoprene) | Dynamic flex performance, tear resistance, abrasion resistance and compatibility with lubricating grease | Automotive CV joints, steering racks and drive axles | RoHS and REACH options available upon request |
| NBR (Nitrile Rubber) | Resistance to petroleum-based oils, fuels and hydraulic fluids | Hydraulic and pneumatic cylinder rods, industrial machinery and oil-exposed assemblies | RoHS and REACH options available upon request |
| EPDM | Resistance to ozone, UV exposure, weathering, water and steam | Outdoor machinery, wiring-harness protection and applications without grease or hydrocarbon-oil contact | RoHS and REACH options available upon request |
| TPE / TPU | Lightweight profile options, puncture resistance and tensile strength | Modern drivetrain, steering and application-specific protective-cover assemblies | RoHS, REACH and project-specific documentation available upon request |
Applications
Rubber dust boots, bellows and CV joint covers can be used in automotive, industrial, hydraulic and robotic assemblies. In drivetrain systems, CV joint boots retain grease around the joint while helping reduce the entry of road salt, water and abrasive debris. Steering-rack and tie-rod bellows protect moving interfaces from contamination. Hydraulic rod boots cover exposed cylinder rods in machinery and mobile equipment. Industrial bellows can also protect shafts, rods, cables and linkages in automation systems. Robotic-joint covers can be reviewed where repeated angular movement and environmental shielding are required. The final design should match the shaft diameters, stroke length, articulation angle, clamp method, contact media and operating temperature.
Customization Options
Custom rubber bellows and CV joint dust boots can be developed according to 2D drawings, 3D models, OEM part numbers or physical samples. Buyers can specify ID1, ID2, free length, compressed length, extended length, wall thickness, convolution count, convolution pitch, cuff groove dimensions, clamp interface, articulation angle, rubber material, Shore A hardness and dimensional tolerance. Reverse-engineering review is available when only an existing part or worn sample is available. Please provide the operating medium, grease or oil exposure, movement frequency, temperature range, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- 2D drawing, 3D model, OEM part number or physical sample
- Small-end inner diameter (ID1)
- Large-end inner diameter (ID2)
- Free length, compressed length and extended length
- Convolution count and pitch
- Cuff and clamp-groove dimensions
- Required articulation angle
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media, including grease, oil or hydraulic fluid
- Movement frequency and cycle-life requirement
- Application environment
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is the difference between a CV joint boot and an industrial rubber bellows?
A CV joint boot is designed specifically for drivetrain joints and normally retains lubricating grease while excluding road contaminants. An industrial rubber bellows may protect a rod, shaft, cable or linkage from dust, water and debris. Both products use flexible convolutions, but the dimensions, material and movement requirements differ.
How should buyers select CR, NBR or EPDM material?
CR can be reviewed for CV joints and dynamic applications involving flexing, abrasion and grease exposure. NBR is suitable for petroleum-based oils, fuels and hydraulic fluids. EPDM is appropriate for ozone, UV, water and weather exposure but should not be selected for hydrocarbon-oil or grease contact without technical review.
Can the bellows dimensions be customized for legacy equipment?
Yes. Custom profiles can be developed according to a physical sample, worn component, 2D drawing or basic ID1 × ID2 × length dimensions. Please also provide the movement range, clamp method, contact media and operating temperature so the replacement profile can be reviewed accurately.
Are the end cuffs compatible with stainless-steel ear clamps?
The cuff profile can be designed for compatible retaining clamps, including stainless-steel ear clamps and band clamps. The cuff OD, groove width, groove depth and clamp type should be confirmed according to the mating shaft or housing interface.
Can you supply high-cycle rubber bellows?
High-cycle requirements can be reviewed according to the material, wall thickness, convolution geometry, stroke length, articulation angle and operating environment. Please provide the required cycle target and validation method so the product structure can be evaluated before tooling and sample production.
Are samples available before batch production?
Prototype samples are available upon request. Sample planning depends on the boot geometry, material, tooling requirements, dimensional tolerance and order quantity. Please submit your drawing, OEM part number or physical sample for engineering review.
Request a Custom Quote
Send your 2D drawing, 3D model, OEM part number or physical sample for a technical review of your rubber dust boots, bellows and CV joint covers. Please include ID1 × ID2 × length dimensions, contact media, movement range, clamp requirements, operating temperature, required quantity and estimated annual volume.
