Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
Reusable BPA-free silicone bottle stopper with multiple insertion ribs, a central pour spout, tethered flip cap, and side pull loop. Designed for compatible plastic beverage bottles, water bottles, and refillable containers, with dimensions, hardness, colors, fit geometry, markings, tolerances, and packaging available for customization.
This reusable silicone bottle stopper is a BPA-free closure with multiple circumferential insertion ribs, a central pour spout, an integrated tethered flip cap, and a side pull loop. It fits compatible plastic beverage bottles, water bottles, and refillable containers, helping protect the outlet from dust and reduce incidental splashing after use.
Product Overview

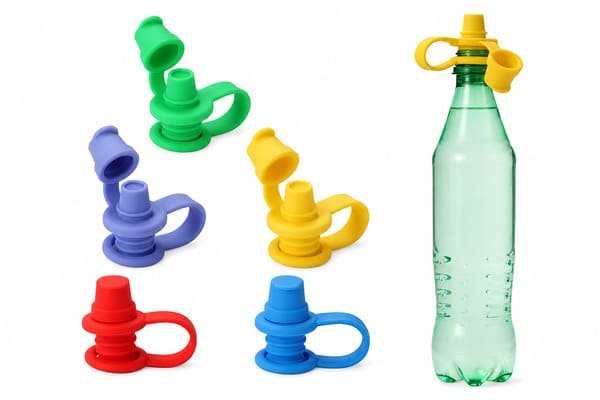

The Reusable Silicone Bottle Stopper with Tethered Cap is an integrated closure designed to be inserted into a compatible bottle opening. Its lower section has multiple circumferential ribs that create successive contact zones with the bottle neck. A central cylindrical passage provides an outlet for controlled pouring or drinking. The attached flip cap folds over this outlet when closed, helping shield it from dust and limit incidental splashing. A side loop supports removal, carrying, or attachment. The image shows red, blue, yellow, green, and purple versions, including use on a plastic beverage bottle. Exact dimensions, silicone grade, Shore A hardness, tolerances, manufacturing process, and sealing performance are available upon request.
Key Features
- Integrated bottle stopper, central pour spout, tethered flip cap, and side loop
- Multiple circumferential insertion ribs for contact with a compatible bottle opening
- Central cylindrical passage for pouring or drinking
- Attached cap covers the outlet when closed
- Tethered design keeps the cap connected while the outlet is open
- Side loop supports removal, carrying, or attachment
- BPA-free silicone construction
- Dimensions, hardness, colors, fit geometry, markings, and packaging can be customized
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Reusable Silicone Bottle Stopper with Tethered Cap |
| Material | BPA-free silicone; exact grade available upon request |
| Hardness | Available upon request |
| Color | Red, blue, yellow, green, and purple as shown |
| Manufacturing Process | To be confirmed |
| Application | Compatible plastic beverage bottles, water bottles, and refillable containers |
| Customization | Dimensions, insertion ribs, pour passage, cap geometry, side loop, silicone grade, hardness, color, markings, tolerances, and packaging |
| MOQ | 1000pcs |
| Tooling | Available upon request |
| Sample Availability | Available upon request |
| Lead Time | 30days |
| Compliance Options | BPA-free; supporting documentation and other requirements available upon request |
Applications
This tethered silicone bottle stopper can be evaluated for compatible plastic beverage bottles, water bottles, refillable drink containers, and other containers with a suitable neck opening. The ribbed lower section is inserted into the bottle mouth, leaving the central outlet accessible for pouring or drinking. After use, the attached flip cap closes over the outlet to reduce dust exposure and incidental splashing. The side loop can assist removal or provide an attachment point. Bottle-neck profiles vary, so the opening diameter, lip geometry, insertion depth, required retention, and outlet position must be verified against the intended container before production.
Material and Performance Considerations
The confirmed material is BPA-free silicone, but the exact grade, curing system, Shore A hardness, and applicable regulatory requirements have not been provided. Material and hardness selection should consider the stored beverage, contact duration, cleaning method, required flexibility, opening frequency, and bottle-neck geometry. Retention depends on the insertion-rib dimensions, dimensional interference, hardness, wall thickness, and bottle condition. The tethered cap helps cover the outlet, but no airtight, leakproof, or pressure-resistant rating has been confirmed. BPA-free status alone does not confirm complete food-contact compliance. Applicable documentation and finished-product testing must be defined for the intended market and use.
Customization and Manufacturing
Custom silicone bottle sealing plugs can be evaluated using a 2D drawing, 3D model, physical product sample, or the intended bottle. Customizable details may include the insertion profile, number and spacing of ribs, pour-spout diameter, passage size, flip-cap geometry, tether section, side loop, silicone grade, Shore A hardness, color, surface finish, molded markings, tolerances, and packaging. Bottle-mouth dimensions and the required insertion and removal forces should be confirmed before tooling. A prototype sample can be installed on the intended bottle to evaluate fit, retention, cap engagement, pouring behavior, loop accessibility, surface condition, and any specified dust or leakage performance.
Quality and Sourcing Considerations
Before ordering, confirm the complete stopper and bottle-neck dimensions, dimensional tolerances, silicone specification, Shore A hardness, colors, quantity, stored liquid, cleaning conditions, and required closure performance. Inspection requirements may cover insertion-rib diameters, spout and passage dimensions, cap alignment, tether integrity, side-loop condition, surface finish, flash, contamination, color consistency, and molded markings. Prototype testing on the intended bottle should evaluate installation force, removal force, retention, cap opening and closing, pouring behavior, and repeated handling. Any food-contact, migration, odor, leakage, cleaning, aging, or repeated-use tests must be agreed before production. Packaging should prevent deformation, contamination, surface damage, and color mixing.
Information Required for a Quote
- 2D drawing, 3D model, or physical sample
- Complete dimensions and tolerances
- Complete bottle-mouth and bottle-neck dimensions
- Silicone grade and Shore A hardness
- Operating and cleaning temperature
- Stored beverage and cleaning agents
- Required retention, dust-protection, or sealing performance
- Installation and removal method
- Required quantity and estimated annual volume
- Inspection and compliance requirements
- Required colors, markings, and packaging
Frequently Asked Questions
Will this silicone stopper fit standard beverage bottles?
Universal fit cannot be confirmed because bottle-mouth diameters, lip profiles, neck shapes, and opening depths vary. Provide the intended bottle, a verified drawing, or complete neck dimensions. Prototype installation is recommended to evaluate insertion force, retention, removal, and alignment of the pour spout.
What is the purpose of the tethered flip cap?
The tether keeps the flip cap attached to the stopper while the central outlet is open. When closed, the cap covers the pour spout to reduce dust exposure and incidental splashing. The closure should not be considered airtight or leakproof unless that performance has been specifically defined and tested.
Does BPA-free silicone mean the stopper is food-contact compliant?
BPA-free status confirms the stated material characteristic but does not automatically establish complete food-contact compliance for every market or application. The required regulation, beverage type, contact duration, temperature, color formulation, supporting documentation, and finished-product testing should be confirmed before ordering.
Can the stopper dimensions and insertion ribs be customized?
Yes. The overall dimensions, insertion-rib profile, pour spout, internal passage, flip cap, tether, side loop, hardness, color, surface finish, molded markings, tolerances, and packaging can be evaluated for customization. Accurate bottle-mouth dimensions or a physical bottle sample are required for fit assessment.
Which Shore A hardness should be selected?
The Shore A hardness is available upon request. Selection depends on the bottle-neck geometry, dimensional interference, required insertion and removal forces, flexibility, cap operation, repeated-use conditions, and selected silicone compound. A prototype should be tested on the intended bottle before final approval.
Are tooling, samples, MOQ, and lead time available?
Tooling, prototype samples, MOQ, and lead time are available upon request. They depend on the approved stopper geometry, silicone grade, hardness, colors, tolerance requirements, compliance documentation, testing plan, packaging, order quantity, and estimated annual volume.
Request Product Evaluation
Provide the intended bottle or its complete mouth and neck dimensions, stopper geometry, silicone requirements, Shore A hardness, stored beverage, required closure performance, colors, estimated quantity, inspection criteria, and compliance requirements. A drawing, 3D model, or physical sample will support fit evaluation, tooling assessment, prototype production, and manufacturing review.
