Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
This molded rubber water tray is designed to collect water and guide it through integrated drainage outlets. Tray dimensions, wall thickness, raised-edge profile, outlet quantity, outlet diameter, outlet position, rubber material and Shore A hardness can be customized according to the installation layout and drainage requirements.
Product Overview

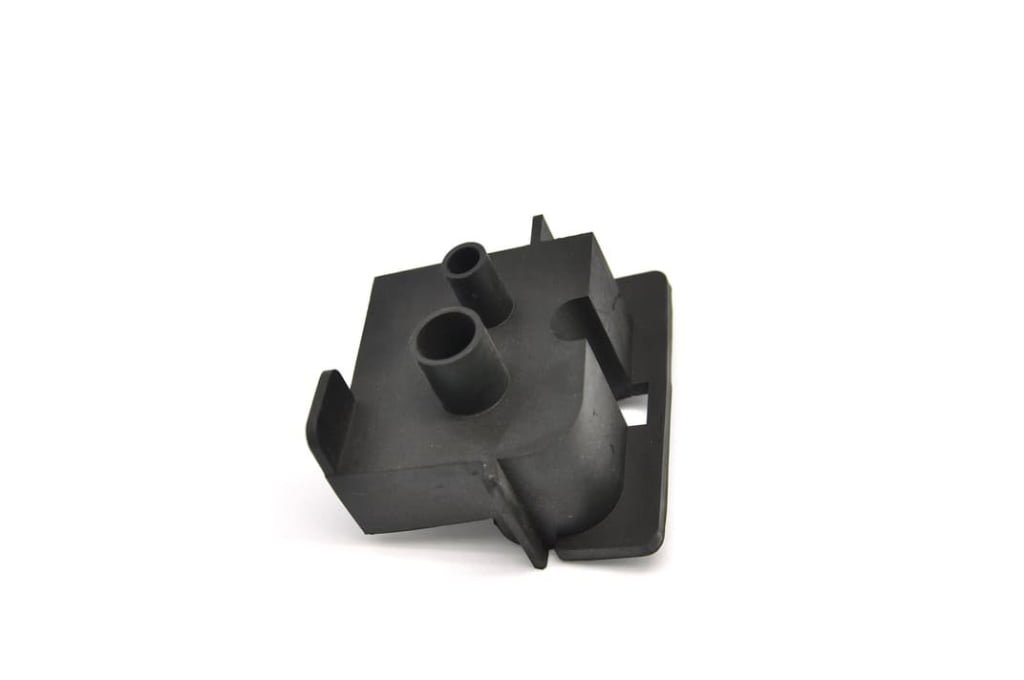

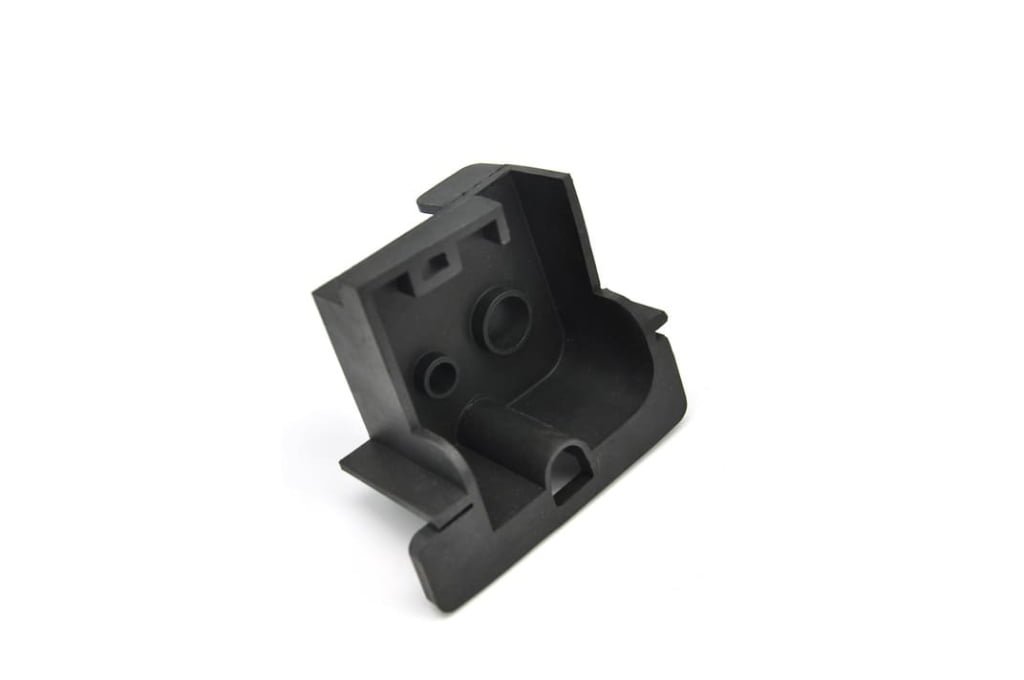

The molded rubber water tray is a custom drainage component used in equipment or assemblies where water must be collected and guided away from the installation area. The tray can be designed with an integrated base, raised edges, molded drainage outlets and application-specific mounting features. Rubber molding allows the tray geometry to follow the available space while providing a flexible interface around surrounding components. The outlet diameter, outlet position, wall thickness and tray dimensions should be confirmed according to the required water-flow path and installation method. Material selection depends on the operating temperature, water exposure, cleaning conditions and surrounding environment. Buyers should provide a 2D drawing, 3D model or physical sample for technical review.
Key Features
- Molded rubber tray structure for water collection and drainage.
- Integrated drainage outlets direct collected water away from the installation area.
- Tray length, width, height and wall thickness can be customized.
- Drainage outlet diameter, quantity, position and direction can be reviewed according to the equipment layout.
- Raised edges and mounting details can be designed to match the surrounding assembly.
- Rubber material selection depends on temperature, water exposure and cleaning conditions.
- Shore A hardness, color and dimensional tolerance are available upon request.
- Prototype development can be reviewed from a 2D drawing, 3D model or physical sample.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Molded Rubber Water Tray with Drainage Outlets |
| Material | Rubber material selection depends on the application conditions |
| Hardness | Available upon request |
| Color | Available upon request |
| Manufacturing Process | Rubber molding |
| Application | Water collection and drainage in equipment or assembly installations |
| Customization | Dimensions, rubber material, Shore A hardness, color, tray profile, raised-edge structure, drainage outlets, mounting details, dimensional tolerance and packaging can be reviewed according to the application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications
The molded rubber water tray can be used in equipment, machinery and assembly installations where water must be collected and directed through defined drainage outlets. The tray can be positioned below components, connection areas or other locations where water accumulation may occur. Raised edges help retain water within the collection area, while molded outlets guide drainage toward a hose, pipe or designated discharge point. The final design should be confirmed according to the installation space, water-flow direction, drainage capacity, surrounding parts and maintenance requirements. Buyers should also provide the operating temperature, cleaning method and exposure to water, detergents or other media.
Customization Options
Custom molded rubber water trays can be developed according to a 2D drawing, 3D model or physical sample. Buyers can specify the tray length, width, height, wall thickness, raised-edge profile, outlet quantity, outlet diameter, outlet position, outlet direction, mounting holes, rubber material, Shore A hardness, color and dimensional tolerance. Material selection depends on the application conditions. Please provide the installation layout, expected water-flow path, drainage connection method, operating temperature, contact media, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Drainage outlet quantity and dimensions
- Water-flow direction and drainage connection method
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is a molded rubber water tray used for?
A molded rubber water tray is used to collect water and guide it through integrated drainage outlets. It can be installed below equipment components or in other areas where controlled water drainage is required. The tray geometry should match the available installation space and drainage path.
Can the tray dimensions and drainage outlets be customized?
Yes. Tray length, width, height, wall thickness, raised-edge profile, outlet quantity, outlet diameter and outlet position can be reviewed according to your drawing or physical sample. Please provide the installation layout and required water-flow direction for technical evaluation.
How should buyers select the rubber material?
Rubber material selection depends on the application conditions. Buyers should provide the operating temperature, water exposure, cleaning method, contact media and environmental conditions. The compound should be selected according to the actual installation requirements.
Can mounting holes or special tray profiles be added?
Yes. Mounting holes, raised edges, stepped structures, drainage connections and other molded details can be evaluated according to the equipment design. Please provide the surrounding component dimensions and identify the critical installation interfaces in the drawing.
Are prototype samples available?
Prototype sample availability depends on the tray dimensions, rubber material, outlet structure, tooling requirements and quantity. Please send your 2D drawing, 3D model or physical sample for review. A sample plan can be confirmed after the technical details are checked.
Is tooling required for a custom molded rubber water tray?
Tooling requirements depend on the tray size, wall thickness, drainage outlet structure and molded details. Existing tooling can be reviewed first. For a new tray design, tooling cost depends on the drawing and product structure.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your molded rubber water tray. Please include the tray dimensions, drainage outlet details, installation layout, rubber requirements, operating conditions, required quantity and estimated annual volume.
