Quick Answer
EPDM preshaped hoses are molded to a defined 3D path for drainage, ventilation, coolant, or low-pressure fluid routing where straight hoses cannot fit reliably.
Custom EPDM Preshaped Hoses — Bespoke Geometry Molded Hoses for Automotive, HVAC, Industrial & Marine Applications
Product Overview
Custom EPDM preshaped hoses are engineered-to-order elastomeric conduits manufactured from Ethylene Propylene Diene Monomer rubber, vulcanized on precision-machined mandrels or in matched metal molds to permanently retain any specified 3D geometry — including complex multi-bend shapes, reducer transitions, branched outlets, and integrated convoluted flex zones that are impossible to achieve with straight hose. EPDM is the dominant material for custom preshaped hoses across automotive cooling, HVAC condensate, air intake, and industrial fluid systems — delivering outstanding resistance to hot water, glycol coolants, acidic condensate, ozone, and UV weathering across a continuous operating range of -40°C to +150°C. Ningbo Julong Rubber manufactures custom EPDM preshaped hoses to OEM CAD drawings or reverse-engineered from physical samples, in bore sizes from 6 mm to 300 mm, supplying automotive Tier 1/2 suppliers, HVAC OEMs, off-highway equipment builders, and aftermarket distributors worldwide.
What Are EPDM Preshaped Hoses?

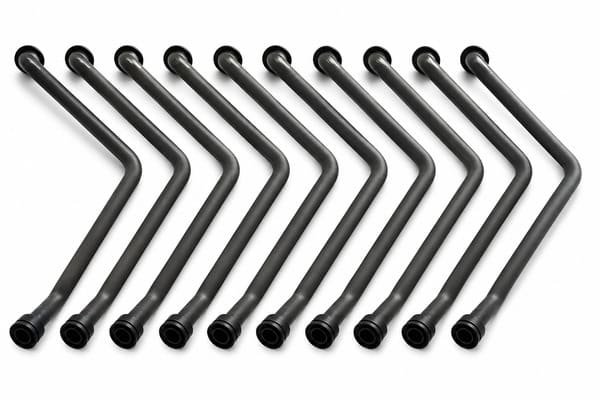

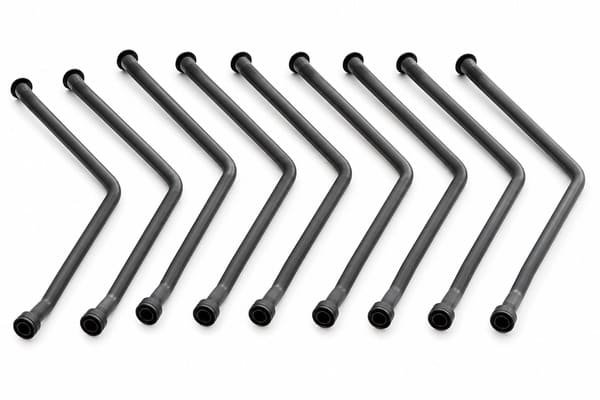

EPDM preshaped hoses are formed rubber hoses used for drainage, ventilation, water return, condensate routing, and low-pressure fluid transfer. Unlike standard straight rubber tubing, a preshaped hose is manufactured with the required bends, offsets, connection ends, and sealing features already built into the part.
EPDM rubber is commonly selected for water, condensate, ozone, weathering, and aging resistance. It is suitable for many non-oil hose applications, especially where the hose must maintain flexibility and sealing performance over long-term service.
Key Technical Specifications
| Parameter | Drawing / Model-Based Value |
|---|---|
| Product Type | EPDM preshaped hose / molded rubber hose |
| Hardness | 65 Shore A |
| CAD File Format | STEP AP214 automotive design model |
| Original CAD System | Siemens PLM Software NX 8.5 |
| Unit | Millimeter |
| Model Color | Obscure gray / dark rubber appearance |
| Approx. CAD Envelope | 262.5 mm × 222 mm × 149.15 mm |
| Model Uncertainty Reference | 0.0508 mm as defined in the STEP file |
| Main Geometry | Molded hose body with curved routing, cylindrical connection zones, conical transitions, and rounded sealing features |
| Material | EPDM rubber, according to product requirement |
| Manufacturing Process | Compression molding, transfer molding, or custom rubber hose molding based on tooling design |
STEP Model Geometry Details
| Feature | Extracted Information | Use in Product Design |
|---|---|---|
| Overall X Span | 262.5 mm | Reference for total routing length and installation clearance |
| Overall Y Span | 222 mm | Reference for hose offset and package space |
| Overall Z Span | 149.15 mm | Reference for vertical or depth clearance in assembly |
| Cylindrical Surface Radii | Approx. 8 mm, 9.7 mm, 10 mm, 10.2 mm, 10.5 mm, 13 mm, 14.5 mm, 15 mm, 16.5 mm, 16.6 mm | Indicates multiple hose bores, connector sections, and fit diameters |
| Conical Surface References | Radii around 10 mm, 11.2 mm, 11.5 mm, 13 mm, 14.5 mm, 15 mm, 15.5 mm with taper angles shown in the model | Used for transition zones, lead-in areas, and molded connector geometry |
| Rounded / Toroidal Features | Multiple radiused profiles, including 0.5 mm, 0.75 mm, 1 mm, 1.8 mm, 2.5 mm, 8 mm, and 10 mm radius-related features | Supports smooth sealing edges, groove transitions, and stress reduction |
| Solid Model Type | Closed manifold solid BREP | Suitable for mold design review, dimensional checking, and tooling development |
Custom Geometry Options
One of the most critical advantages of EPDM preshaped hoses is the ability to engineer virtually any 3D geometry into a single production component:
Single Elbow — 45°, 90°, 135°, 180°
Standard elbow geometries for routing coolant, air, or condensate around a single offset — available in equal-bore or reducer configurations across all standard bore sizes.
Multi-Bend / Complex 3D Preshaped
Two or more bends in different planes, forming a fully defined 3D routing path that precisely matches the installation envelope of a specific appliance, engine bay, or equipment chassis. These are the highest-value preshaped hose configurations — replacing multiple straight sections, elbow fittings, and clamps with a single leak-minimizing component.
Reducer Preshaped Hose
Simultaneously changes bore diameter and routing direction in a single molded part — eliminating the need for a separate reducer coupling and reducing joint count.
Convoluted / Corrugated Preshaped Hose
Corrugated wall sections molded directly into the hose — providing built-in flex zones that allow the hose to bend within the installed equipment without kinking, and absorb vibration without fatigue cracking at connection points.
Branched T/Y Preshaped Hose
Integrated branch outlets for heater taps, bleed nipples, sensor bosses, and parallel circuit feeds — molded in-place for a permanently leak-free branch connection.
Bespoke / Non-Standard Profile
Any geometry not covered above — submitted as a 2D drawing, 3D CAD file, or physical sample for reverse engineering and custom tooling.
Material Selection Guide
| Material | Key Properties | Typical Use Logic | Points to Confirm |
|---|---|---|---|
| EPDM | Good water, ozone, weathering, and aging resistance | Suitable for condensate, drainage, ventilation, and water-related hose applications | Oil, fuel, and grease exposure should be reviewed separately |
| Custom EPDM Compound | Adjusted hardness, flexibility, heat aging, or compression behavior | Used when the hose must match a specific assembly force or sealing requirement | Working temperature, medium, and movement condition should be confirmed |
| Alternative Rubber Compound | Can be reviewed if the working medium is not suitable for EPDM | Used for oil, fuel, or special chemical exposure | Material approval and updated drawing requirements may be needed |
Why EPDM Is the Dominant Preshaped Hose Material
EPDM’s combination of properties makes it the first-choice material for custom preshaped hoses across the widest range of fluid system applications:
- Outstanding hot water and glycol resistance — withstands prolonged contact with all ethylene glycol, OAT, HOAT, and NOAT antifreeze formulations at temperatures up to +150°C without softening or swelling
- Acidic condensate resistance — resists pH 2.5–4.5 flue gas condensate from high-efficiency furnaces and boilers; NBR and CR degrade under the same conditions
- Excellent ozone and UV resistance — the saturated EPDM backbone is not attacked by atmospheric ozone or sunlight; preshaped hoses maintain surface integrity for 15–20+ years in outdoor or underhood environments
- Wide temperature flexibility — remains pliable and functional from -40°C to +150°C, covering cold start to full operating temperature across all applications
- Electrochemical degradation (ECD) resistance — EPDM can be compounded to resist ECD attack from long-life OAT coolants — a specific automotive OEM requirement for extended drain interval cooling systems
- Superior processability — EPDM accepts mandrel forming, compression molding, transfer molding, and extrusion with equal consistency, enabling any geometry including convoluted wall sections
- Cost efficiency — delivers superior performance versus Neoprene for water, condensate, and air service at lower material cost — decisive for high-volume OEM programs
Manufacturing Methods
EPDM vs. Other Custom Preshaped Hose Materials
Application Areas
Custom EPDM preshaped hoses are engineered for the broadest application spectrum of any single elastomer:
Medical & hygiene — peroxide-cured Nitrosamine-free EPDM hoses for fluid handling in medical device and hygiene equipment
Automotive cooling — upper/lower radiator hoses, bypass hoses, heater hoses, degas bottle connections, EGR cooler connections; OEM and aftermarket
HVAC condensate drainage — multi-bend drain hoses for high-efficiency furnaces, condensing boilers, heat pumps, air handlers; acid-resistant EPDM compound
Air intake ducting — air cleaner hoses, corrugated intake ducts with high-vacuum resistance for automotive and industrial engines
Turbocharger cold-side — preshaped intercooler and charge-air pipes; 2-ply reinforced for boost pressure containment
Industrial fluid systems — coolant, water, mild chemical transfer hoses for machinery and process equipment
Agricultural & construction equipment — engine cooling, hydraulic reservoir vent, and fuel overflow hoses for tractors, excavators, and generators
Marine inboard engines — fresh water cooling system hoses, exhaust water-lift hoses, HVAC drain hoses
Customization Workflow
Julong Rubber’s standard custom preshaped hose development process:
Ongoing supply — program-based OEM scheduling or aftermarket replenishment stock management
Submit your requirement — 2D drawing, 3D CAD file, physical sample, or OEM part number reference
Engineering review — geometry extraction, material specification, reinforcement, and manufacturing method recommendation within 24 hours
Tooling fabrication — mandrel or mold produced in 7–20 days depending on complexity and volume tier
First-article samples — 5–20 prototype units produced for dimensional, fitment, and functional validation
Approval and production — drawing-locked production begins following customer first-article sign-off
Technical Customization Parameters
Every dimension, property, and performance attribute of a custom EPDM preshaped hose can be specified:
Compliance documentation — PPAP, IMDS, SAE J20/J30, RoHS/REACH, material data sheets on request
3D geometry — any bend angle, sweep radius, multi-plane routing; matched to OEM CAD or reverse-engineered from sample
Bore — ID 6 mm to 300 mm; equal-bore or reducer transition within one hose
Wall profile — smooth bore, convoluted flex zones, or combination; corrugation pitch and depth to specification
Reinforcement — unreinforced, 1–4 ply polyester/aramid, steel wire helix (anti-collapse), metal braid
Cure system — sulphur cure (cost-effective) or peroxide cure (Nitrosamine-free, medical/food-grade)
ECD resistance — EPDM compound formulated to resist electrochemical degradation from OAT long-life coolants
End connections — plain cut, bead-rolled, barbed, flanged, quick-connect boss, metal fittings co-vulcanized in-place
Branch ports — integrated T-branches, heater taps, bleed nipples, sensor bosses
Color — black standard; grey, white available for appliance interiors
Why Source from Julong Rubber?
- ✅ IATF 16949 capable — automotive OEM quality system, PPAP documentation available
- ✅ ISO 9001:2015 certified manufacturing and inspection
- ✅ In-house EPDM compounding — sulphur and peroxide cure; ECD-resistant grades
- ✅ In-house mandrel and mold tooling — 7–30 day tooling lead time depending on geometry complexity
- ✅ Full geometry range — elbow to complex 3D multi-bend to hand-built large-bore
- ✅ Convoluted wall capability — flex zones integrated into preshaped geometry
- ✅ Metal co-vulcanization — end fittings and sensor bosses bonded in-place
- ✅ Low MOQ — 1000 pcs production; 50–200 pcs first-article samples
- ✅ Reverse engineering — from physical sample, 2D drawing, or 3D CAD
- ✅ 25+ years automotive and industrial rubber supply to European and global OEM markets
- ✅ English-speaking technical sales — RFQ response within 24 hours
How to Order / Request a Quote
To prepare an accurate quotation, please provide the STEP file, 2D drawing, or physical sample of the EPDM preshaped hose. Important information includes the target material, hardness, working medium, temperature range, connector dimensions, wall thickness, routing clearance, and required quantity.
For this STEP-based hose, the model reference is 5982905_T006, with millimeter units and an approximate CAD envelope of 262.5 mm × 222 mm × 149.15 mm. Since the STEP file does not include a direct material property field, EPDM material and hardness should be confirmed before mold production.
FAQ
▼ Can you produce EPDM preshaped hoses from a STEP file?
Yes. A STEP model can be used for geometry review, mold development, and dimensional planning. A 2D drawing or sample is also helpful for confirming tolerances, material, and inspection points.
▼ What information was confirmed from the supplied STEP model?
The model confirms the part reference 5982905_T006, millimeter units, dark gray appearance, closed solid geometry, and an approximate CAD envelope of 262.5 mm × 222 mm × 149.15 mm.
▼ Is EPDM suitable for drainage and condensate hose applications?
Yes. EPDM is commonly used for water, condensate, ozone, and weathering resistance. If the hose contacts oil, fuel, or grease, another compound should be reviewed.
▼ Can connector ends and sealing grooves be customized?
Yes. Connector diameters, stepped ends, conical transitions, grooves, rounded profiles, and wall thickness can be customized according to the 3D model or drawing requirements.
Request a Custom Quote
If you need EPDM preshaped hoses based on a STEP model, drawing, or sample, you can send the 3D data and application requirements for review. The material, mold structure, inspection method, and production process can then be matched to the actual assembly conditions.
