Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
This custom EV battery pack seal is designed for battery-pack covers, lower trays and ESS enclosures. Available structures include large-format EPDM, flame-retardant silicone and micro-cellular foam gaskets with optional integrated metal compression limiters. Profile geometry, cross-section, mounting-hole pattern, hardness, foam density and dimensional tolerance can be customized according to the enclosure drawing.
This custom EV battery pack seal is a large-format enclosure gasket developed for battery-pack covers and lower trays. The specified profile measures 1100 × 900 mm and can be reviewed for Roewe eRX5 plug-in hybrid battery-housing applications. Integrated metal compression limiters help control bolt compression. EPDM, flame-retardant silicone and micro-cellular foam material options are available.
Product Overview
The custom EV battery pack seal is designed to create a controlled sealing interface between the battery enclosure cover and the lower tray. The specified 1100 × 900 mm profile can be reviewed for Roewe eRX5 battery-housing applications and similar large-format EV or ESS enclosures. Integrated metal compression limiters are positioned around selected mounting holes to help control bolt compression and reduce excessive rubber deformation during assembly. Complex perimeter geometries, asymmetrical sections and extended flange profiles can be developed according to the enclosure drawing. Depending on the final structure, the gasket can be produced by injection molding, compression molding or overmolding. IP67 and IP68 sealing requirements should be validated on the completed enclosure assembly.
Key Features
- Specified large-format gasket size: 1100 × 900 mm.
- Suitable for technical review for Roewe eRX5 plug-in hybrid battery-housing applications.
- Integrated metal compression limiters help control bolt compression around mounting holes.
- Large-format perimeter geometry can match complex and asymmetrical battery-enclosure designs.
- Available production methods include injection molding, compression molding and overmolding, depending on the gasket structure.
- Material options include EPDM, flame-retardant silicone and micro-cellular EPDM or silicone foam.
- IP67 and IP68 ingress-protection requirements can be reviewed according to the enclosure design and validation method.
- Custom cross-sections, mounting-hole patterns, dimensional tolerances and packaging are available upon request.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Overall Length | 1100 mm |
| Overall Width | 900 mm |
| Overall Height | Available upon request |
| Cross-Section | Available according to drawing |
| Wall Thickness | Available upon request |
| Mounting Hole Diameter | Available according to drawing |
| Compression Limiter Inner Diameter | Available according to bolt specification |
| Compression Limiter Outer Diameter | Available according to drawing |
| Compression Limiter Height | Available according to the target gasket compression |
| Mounting Hole Pattern | Available according to enclosure drawing |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Custom EV Battery Pack Seal and Enclosure Gasket |
| Reference Application | Roewe eRX5 plug-in hybrid battery housing and similar EV battery-enclosure platforms |
| Material | EPDM, flame-retardant silicone, micro-cellular EPDM foam or micro-cellular silicone foam. Material selection depends on the application conditions. |
| Hardness | Available upon request |
| Color | Available upon request |
| Manufacturing Process | Injection molding, compression molding or overmolding, depending on the gasket structure |
| Seal Structure | Large-format battery enclosure gasket with optional integrated metal compression limiters |
| Ingress-Protection Requirements | IP67 and IP68 sealing requirements can be reviewed. Final performance depends on enclosure design, mating surfaces, bolt compression and completed-assembly validation. |
| Application | EV battery-pack covers, lower trays, plug-in hybrid battery housings and Energy Storage System enclosures |
| Customization | Overall dimensions, cross-section, flange geometry, mounting-hole pattern, compression-limiter dimensions, rubber material, Shore A hardness, foam density, dimensional tolerance, packaging and inspection requirements can be reviewed according to the enclosure drawing. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | RoHS and REACH options are available for applicable compounds. UL94 V-0 flame-retardant silicone options can be reviewed according to the required specification. Documentation is available upon request. |
Material Options
| Material Type | Key Performance Attributes | Recommended Application | Compliance Options |
|---|---|---|---|
| EPDM | Weather, ozone and UV resistance. Suitable for moisture exposure and applications involving glycol-based coolants. | Standard EV and PHEV battery packs, including applications similar to the Roewe eRX5 battery enclosure, and outdoor ESS units | RoHS and REACH options available upon request |
| Flame-Retardant Silicone | Temperature stability from -50°C to +250°C for the specified compound option. Flame-retardant grades can be reviewed. | Battery enclosures requiring elevated-temperature capability or flame-retardant material options | UL94 V-0 and RoHS options available upon request for applicable grades |
| Micro-Cellular EPDM Foam | Compressible gasket structure designed to accommodate enclosure-surface variation and vibration. | Lightweight battery enclosures and applications requiring a softer compression interface | RoHS and REACH options available upon request |
| Micro-Cellular Silicone Foam | Compressible foam structure with temperature-resistant silicone material options. | Battery enclosures requiring compressibility and elevated-temperature capability | Compliance options available upon request |
Product Structure
Large-Format Perimeter Seal

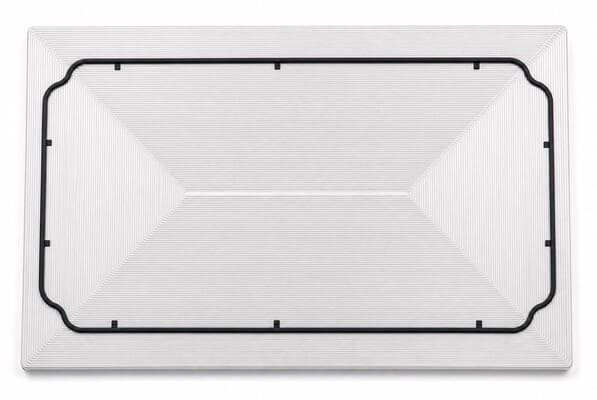

The 1100 × 900 mm gasket profile follows the battery-pack enclosure perimeter and creates a sealing interface between the cover and lower tray. The cross-section, flange geometry and mounting-hole pattern should be matched to the enclosure drawing and assembly-compression target.
Integrated Metal Compression Limiters
Metal compression limiters can be molded around selected mounting holes. These inserts help control the compression generated by enclosure bolts and reduce the risk of excessive rubber deformation. The limiter height, inner diameter and outer diameter should be selected according to the bolt specification, gasket cross-section and required compression level.
Custom Molded Geometry
Large-format battery enclosure seals may include asymmetrical perimeter sections, extended flanges, local reinforcements and application-specific mounting details. The gasket structure can be reviewed according to the 2D drawing, 3D model and battery-pack assembly requirements.
Applications
This 1100 × 900 mm custom EV battery pack seal can be reviewed for Roewe eRX5 plug-in hybrid battery-housing applications and similar large-format enclosures. The gasket is installed between the battery-pack cover and lower tray to help reduce the entry of water, dust and external contaminants. Integrated compression limiters can support controlled bolt compression during assembly. Similar structures can also be developed for passenger EVs, plug-in hybrid vehicles, commercial electric vehicles and Energy Storage System enclosures. The final design should be confirmed according to the housing geometry, bolt spacing, mating-surface condition, thermal-cycling environment, vibration conditions and required IP67 or IP68 validation method.
Customization Options
Custom EV battery pack seals can be developed according to 2D drawings, 3D models or physical samples. Buyers can specify the perimeter geometry, overall dimensions, cross-section, flange profile, mounting-hole pattern, compression-limiter dimensions, rubber compound, Shore A hardness, foam density, color and dimensional tolerance. Please provide the enclosure material, mating-surface geometry, bolt size, bolt spacing, target compression, operating temperature, vibration conditions, coolant exposure, ingress-protection validation requirement, required quantity and estimated annual volume. PPAP Level 3 documentation, DFM review and inspection requirements can be evaluated according to the project needs.
What Information Should Buyers Provide for a Quote?
- 2D drawing, 3D model or physical sample
- Vehicle platform or battery-enclosure application
- Overall gasket dimensions
- Gasket cross-section and dimensional tolerances
- Mounting-hole pattern
- Bolt size and tightening requirements
- Compression-limiter dimensions
- Target gasket compression
- Rubber material
- Shore A hardness or foam-density requirement
- Operating temperature
- Contact media, including coolant exposure if applicable
- Vibration and thermal-cycling conditions
- Required IP67 or IP68 validation method
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What are the dimensions of this custom EV battery pack seal?
The specified large-format gasket profile measures 1100 mm in length and 900 mm in width. The cross-section, wall thickness, mounting-hole pattern and compression-limiter dimensions should be confirmed according to the battery-enclosure drawing and target compression level.
Can this gasket be used for Roewe eRX5 battery-housing applications?
The 1100 × 900 mm profile can be reviewed for Roewe eRX5 plug-in hybrid battery-housing applications. Final compatibility should be confirmed against the enclosure drawing, mounting-hole positions, cross-section, mating surfaces and bolt-compression requirements before production.
What is the purpose of metal compression limiters?
Metal compression limiters are inserts positioned around selected mounting holes. They help control compression generated by enclosure bolts and reduce excessive rubber deformation. The limiter dimensions should match the bolt specification, gasket profile and required assembly compression.
Can the gasket be designed for IP67 or IP68 requirements?
Yes. The gasket can be developed for projects with IP67 or IP68 ingress-protection requirements. Final sealing performance depends on the gasket profile, enclosure rigidity, mating-surface condition, bolt spacing, compression level and assembly method. The completed enclosure should be validated according to the required test standard.
Which material should be selected for an EV battery enclosure gasket?
EPDM can be reviewed for weather, ozone, UV, moisture and glycol-based coolant exposure. Flame-retardant silicone can be evaluated for elevated-temperature requirements. Micro-cellular EPDM or silicone foam can be considered when a more compressible interface is required to accommodate enclosure-surface variation.
What documentation is available for an automotive battery-seal project?
Documentation requirements can be reviewed according to the project. PPAP Level 3 documentation, dimensional inspection requirements, material documentation and applicable compliance reports can be evaluated after the drawing, compound specification, prototype plan and production requirements are confirmed.
Request a Custom Quote
Send your battery-enclosure 2D drawing, 3D model or physical sample for a technical review of your custom EV battery pack seal. Please include the gasket cross-section, mounting-hole pattern, compression-limiter dimensions, material requirements, IP67 or IP68 validation method, order quantity and estimated annual volume.
