Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer

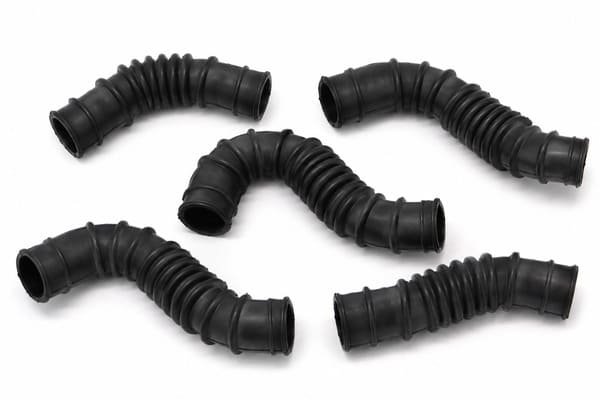

This corrugated automotive rubber air intake hose is designed for flexible connections in vehicle intake systems. The corrugated body accommodates installation angles, vibration and limited movement. Hose length, end diameters, wall thickness, rubber compound, Shore A hardness, clamp areas and dimensional tolerances can be customized according to your engine intake assembly.
Product Overview
The corrugated automotive rubber air intake hose is a flexible connection component for vehicle air intake systems. Its corrugated body allows controlled bending, extension and vibration accommodation between connected parts. The hose can be designed with straight, curved, stepped or reduced-diameter end sections to match the air filter housing, intake duct, throttle-body connection or other mating interfaces. Clamping areas can be incorporated at the hose ends for assembly. The internal diameter, overall length, corrugation profile and wall thickness should be confirmed according to the installation space and airflow path. Rubber material selection depends on the operating temperature, environmental exposure, oil-mist contact and application requirements.
Key Features
- Corrugated rubber hose structure for controlled flexibility during installation and operation.
- Designed for vehicle air intake connections and engine-compartment ducting.
- Hose ends can be reviewed with straight, stepped, tapered or curved interfaces.
- Corrugation profile can accommodate bending, vibration and limited relative movement between connected parts.
- End sections can be designed for clamp installation according to the mating components.
- Rubber compound selection depends on temperature, oil-mist exposure and environmental conditions.
- Dimensions, wall thickness, Shore A hardness, color and dimensional tolerance can be customized.
- Prototype development can be reviewed from a 2D drawing, 3D model or physical sample.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Corrugated Automotive Rubber Air Intake Hose |
| Material | EPDM |
| Hardness | 70+/-5ShA |
| Color | Black |
| Manufacturing Process | Molded |
| Application | Automotive air intake connections and engine-compartment ducting |
| Customization | Dimensions, rubber material, Shore A hardness, color, corrugation profile, hose curvature, end interfaces, clamp areas, dimensional tolerance, packaging and inspection requirements can be reviewed according to the drawing and application conditions. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | 30-35 days |
| Compliance Options | Available upon request |
Applications
The corrugated automotive rubber air intake hose is used in vehicle intake systems where air must be routed between connected components through a flexible duct. It can be evaluated for connections between the air filter housing, intake duct, throttle-body interface and other engine-compartment components. The corrugated section allows the hose to accommodate installation angles, vibration and limited relative movement. Buyers should confirm the airflow path, mating-part diameters, clamp locations, available installation space, operating temperature and exposure to oil mist, dust, ozone or weather conditions. The final hose geometry should match the actual vehicle assembly.
Customization Options
Custom corrugated automotive rubber air intake hoses can be developed according to a 2D drawing, 3D model or physical sample. Buyers can specify the overall length, inner diameters, outer diameters, wall thickness, corrugation profile, hose curvature, end geometry, clamp areas, rubber material, Shore A hardness, color and dimensional tolerance. Material selection depends on the operating temperature, engine-compartment environment, oil-mist exposure, airflow conditions and expected movement. Please provide the mating-part dimensions, installation layout, required quantity and estimated annual volume. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Product drawing or physical sample
- Dimensions and tolerances
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Mating-part diameters
- Hose routing and installation space
- Clamp positions and connection method
- Required quantity
- Estimated annual volume
- Compliance requirements
- Packaging requirements
FAQ
What is a corrugated automotive rubber air intake hose used for?
A corrugated automotive rubber air intake hose is used to connect components in a vehicle air intake system. It routes intake air while providing flexibility between mating parts. The corrugated section can accommodate installation angles, vibration and limited relative movement in the engine compartment.
Can the hose dimensions and corrugation profile be customized?
Yes. Overall length, end diameters, wall thickness, corrugation diameter, number of corrugations, hose curvature and clamp areas can be reviewed according to your 2D drawing, 3D model or physical sample. Critical dimensions and tolerances should be identified before tooling.
How should buyers select the rubber material?
Rubber material selection depends on the application conditions. Buyers should provide the operating temperature, exposure to oil mist, ozone, weather, dust and other media. The compound should be selected according to the actual engine-compartment environment and hose requirements.
Can different diameters be used at the two hose ends?
Yes. The hose can be reviewed with different end diameters, stepped sections, tapered transitions or curved interfaces when required by the intake system layout. Please provide the mating-part dimensions and clamp positions for technical evaluation.
Are prototype samples available?
Prototype samples are available upon request. Sample planning depends on the hose dimensions, corrugation structure, rubber material, tooling requirements and quantity. Please send your drawing, 3D model or physical sample for review before sample preparation.
How is the lead time confirmed?
The lead time is confirmed after reviewing the drawing, hose structure, rubber material, tooling requirements, prototype plan, inspection requirements and order quantity. Please provide your target delivery schedule and estimated annual volume when requesting a quotation.
Request a Custom Quote
Send your 2D drawing, 3D model or physical sample for a technical review of your corrugated automotive rubber air intake hose. Please include the hose dimensions, mating interfaces, clamp positions, rubber requirements, operating conditions, required quantity and estimated annual demand.
