Product Overview
Reliable custom rubber parts for industrial applications
Quick Answer
This compatible Caterpillar 5N-3272 rubber coupling boot is manufactured from black EPDM rubber. It measures 502.9 × 77.22 × 74.68 mm, weighs 1.15 kg and operates from -40°C to +120°C. The molded boot is suitable for compatible flexible coupling replacement and aftermarket service-part requirements.
Product Overview

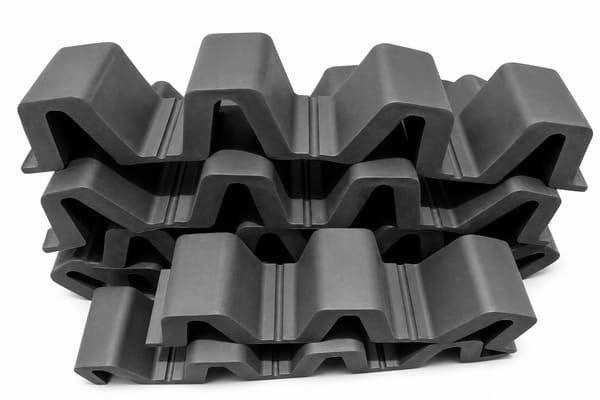

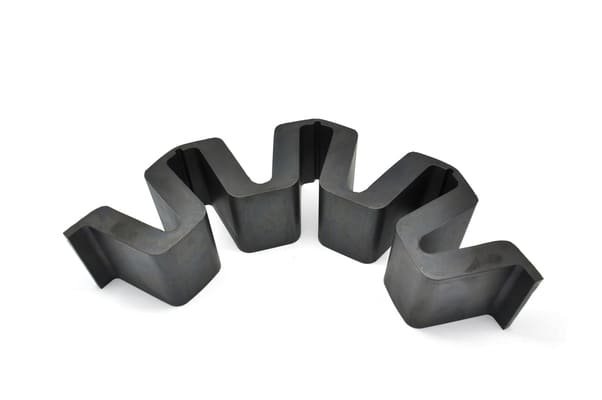

The Caterpillar 5N-3272 rubber coupling drive block is a molded elastomeric insert designed for flexible jaw couplings in engine auxiliary-drive assemblies. Six blocks are installed between the jaw lugs of the driving and driven coupling discs. The opposing slots engage the lug faces and transmit rotational torque through controlled rubber compression and shear deformation. This structure helps accommodate torsional shock, vibration and limited angular misalignment between the engine and the driven equipment. The replacement set can be reviewed for CAT 3200 and 3300 series diesel-engine applications. Buyers should confirm the Caterpillar part number, coupling-disc dimensions, operating speed, driven equipment and installation interface before ordering.
Key Features
- Replacement rubber coupling drive block for Caterpillar part number 5N-3272 / 5N3272.
- Supplied as a complete set of six molded rubber blocks.
- S-section or Z-section profile with upper and lower drive slots on opposing faces.
- Designed to engage the jaw lugs of flexible coupling discs without separate fasteners.
- Rubber deformation supports torque transfer while helping absorb torsional shock and vibration.
- Available in high-durometer NR/SBR or NBR compound options.
- Specified hardness range: 60–70 Shore A.
- Compatibility should be verified using the engine model and coupling-disc part number.
Size / Dimensions
| Dimension Item | Specification |
|---|---|
| Part Number | 5N-3272 |
| Length | 502.9 mm |
| Width | 77.22 mm |
| Height | 74.68 mm |
| Weight | 1.15 kg |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Compatible Caterpillar 5N-3272 Rubber Coupling Boot |
| Reference Part Number | 5N-3272 |
| Material | EPDM rubber |
| Hardness | Available upon request |
| Color | Black |
| Weight | 1.15 kg |
| Operating Temperature | -40°C to +120°C |
| Manufacturing Process | Rubber molding |
| Application | Flexible coupling boot replacement for heavy-duty equipment assemblies |
| Customization | Custom rubber compounds, Shore A hardness, dimensions, packaging and labeling can be reviewed according to the application requirements. |
| MOQ | Contact us for details |
| Tooling | Tooling cost depends on the drawing and product structure |
| Sample Availability | Available upon request |
| Lead Time | Available upon request |
| Compliance Options | Available upon request |
Applications
The compatible Caterpillar 5N-3272 rubber coupling boot can be reviewed for equipment maintenance and replacement-part requirements involving flexible coupling assemblies. The molded EPDM boot helps protect the coupling interface from dust, moisture and external contaminants while accommodating vibration and limited relative movement during operation. Typical sourcing requirements may involve generator equipment, industrial engines, marine equipment and heavy machinery. Compatibility should not be confirmed from appearance alone. Buyers should provide the original part number, equipment model, installation photos and existing component dimensions so the replacement boot can be checked before quotation or sample preparation.
Customization Options
The standard 5N-3272 replacement configuration is manufactured from black EPDM rubber and measures 502.9 × 77.22 × 74.68 mm. Custom requirements can be reviewed according to a 2D drawing, 3D model or physical sample. Buyers can specify rubber compound, Shore A hardness, dimensional tolerance, packaging method, labeling and order quantity. If the boot is intended for a different coupling assembly, please provide the installation dimensions, equipment model, working temperature, environmental exposure and estimated annual demand. Material selection depends on the application conditions. Tooling cost depends on the drawing and product structure.
What Information Should Buyers Provide for a Quote?
- Reference part number
- Equipment model
- Product drawing or physical sample
- Installation photos
- Dimensions and tolerances
- Rubber material
- Shore A hardness
- Operating temperature
- Contact media
- Application environment
- Required quantity
- Estimated annual volume
- Packaging requirements
FAQ
What is the reference part number for this rubber coupling boot?
The reference part number is 5N-3272. The product is intended for replacement requirements involving compatible coupling assemblies. Buyers should provide the original part number and equipment model so the installation interface can be checked before ordering.
What are the dimensions of the 5N-3272 rubber coupling boot?
The specified boot dimensions are 502.9 mm in length, 77.22 mm in width and 74.68 mm in height. The individual product weight is 1.15 kg. Please confirm these values against the original component before placing an order.
What material is used for the rubber coupling boot?
The specified material is EPDM rubber. The standard color is black. EPDM is suitable for the stated operating temperature range of -40°C to +120°C. Custom compound requirements can be reviewed according to the actual application conditions.
How should buyers confirm compatibility?
Please provide the equipment model, original part number, installation photos and existing boot dimensions. A physical sample is recommended when the original specification is incomplete. Compatibility should be reviewed before batch ordering, especially for replacement-part applications.
Are samples available for inspection?
Sample availability is available upon request. Please provide the required quantity, delivery location and equipment information. If dimensional matching is required, send the original component, a technical drawing or clear measurement photos for review.
Can the packaging and labeling be customized?
Custom packaging and labeling can be reviewed for aftermarket distribution and service-part supply. Please provide the required packaging method, label content, order quantity and estimated annual demand when requesting a quotation.
Request a Custom Quote
Send your equipment model, reference part number, installation photos or physical sample for a compatibility review of the 5N-3272 rubber coupling boot. Please include the required quantity, delivery schedule, packaging requirements and estimated annual demand so we can prepare a formal quotation.
