160/50-110 Solid Rubber Wheel with Aluminum Alloy Core
Product Overview

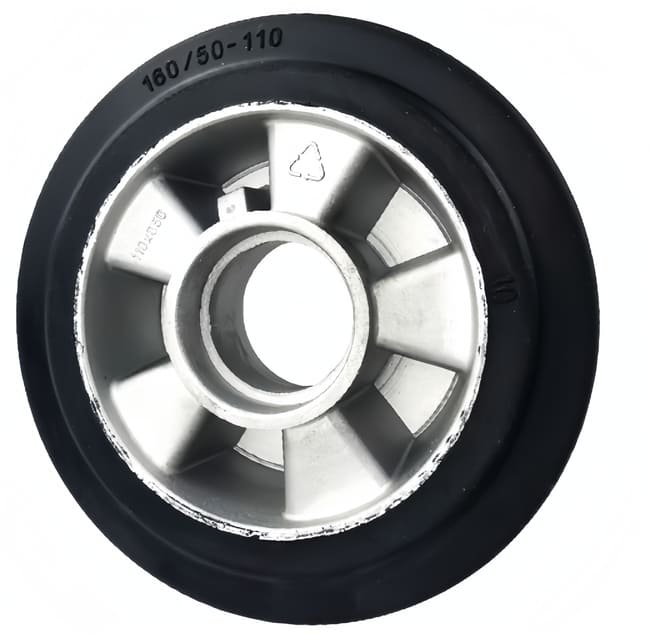

The 160/50-110 solid rubber wheel is engineered with a six-spoke die-cast aluminum alloy core and a durable black solid rubber tread. Designed for industrial carts, machinery, and heavy-duty equipment, this wheel delivers superior load-bearing, smooth movement, and long-lasting performance in demanding environments.
Key Features & Advantages
- Six-spoke robust aluminum alloy core, die-cast and polished for high strength and durability
- Solid black rubber tread, Shore A hardness 70 ± 5, provides low noise and excellent floor protection
- High dynamic and static load capacity, suitable for industrial applications
- Wide operating temperature range: –20 °C to +70 °C
- Balanced structure for smooth rotation with no eccentricity
- Corrosion-resistant and securely bonded rubber-to-core construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Wheel Diameter | 160 mm |
| Tread Width | 50 mm |
| Hub Face Width | 47 mm |
| Overall Hub Width | 110 mm |
| Inner Bore Diameter | 54.0 ± 0.02 mm |
| Hub Flange Outer Diameter | 95 mm |
| Hub Section Diameter | 72 mm |
| Rubber Hardness | 70 ± 5 Shore A |
| Core Material | Aluminum Alloy, Die-Cast |
| Core Tensile Strength | ≥150 MPa |
| Core Yield Strength | ≥70 MPa |
| Core Elongation | ≥6 % |
| Core Hardness | ≥HB45 |
| Spoke Configuration | Six-spoke, radial, fillet radii R2 and R8 |
Applications
- Industrial carts and trolleys
- Machinery and equipment bases
- Material handling in warehouses and factories
- Heavy-duty transport systems requiring low noise and floor protection
Quality and Manufacturing Notes
- No flashing or burrs on tread or core; core is cleanly cast and polished
- Rubber tread securely bonded to the core, conforms fully to core profile
- Wheel is dynamically balanced with no eccentricity
- Consistent finish, high dimensional accuracy, and stable performance
